SKH51 Φ101mm Copper Tube Holes Punching Bullet Head For Air Conditioning Pipe

SKH51 Φ101mm Copper Tube Holes Punching Bullet Head For Air Conditioning Pipe

Brand Name:	Punching Bullet
Model Number:	Punching Bullets 01
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Punching Bullet Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets

Material:

SKD11,DC53 Or HSS SKH51

Process Tube Dia.:

Φ9.52-Φ110

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Punching Hole Dia.:

Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22

Quality:

100% Inspection

Surface Finish:

Ra 0.4

Service:

OEM Or ODM

Application:

CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine

Usage:

Punching Hole Copper Aluminum And Stainless Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Copper Tube Punching Bullet Head

Air Conditioning Pipe Bullet Head

Product Description

SKH51 Φ101mm Copper Tube Punching Bullet Head for Air Conditioning Pipe

Product Specifications

Attribute	Value
Product Name	Punching Bullet Head for Tube Perforation
Material	SKD11, DC53 or HSS SKH51
Process Tube Diameter	Φ9.52-Φ110
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Punching Hole Diameter	Φ5 to Φ22.22 (multiple standard sizes available)
Quality	100% Inspection
Surface Finish	Ra 0.4
Service	OEM or ODM

Product Description

Heavy-Duty Punching Bullet Head for air conditioning pipe components, constructed from SKH51 high-speed steel for exceptional durability and wear resistance. Ideal for mass production of condenser and evaporator fittings in HVAC systems.

Designed for creating precise holes in copper, aluminum, and stainless steel tubes, compatible with fully automatic CNC punching machines including OMS and JDM models. Custom punch specifications available upon request.

Technical Specifications

Process Tube Diameter	Available Punching Hole Diameters
Φ9.53mm (3/8")	Φ5mm
Φ12.7mm (1/2")	Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8")	Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Custom Sizes	Available upon request

Applications

Compatible with various CNC machines including:

CNC Hole Punching Machines
CNC Tube Perforating Machines
CNC Flute Type Punching Machines
Integrated Tube Cutting, Bending and Punching Machines
End Forming Machines

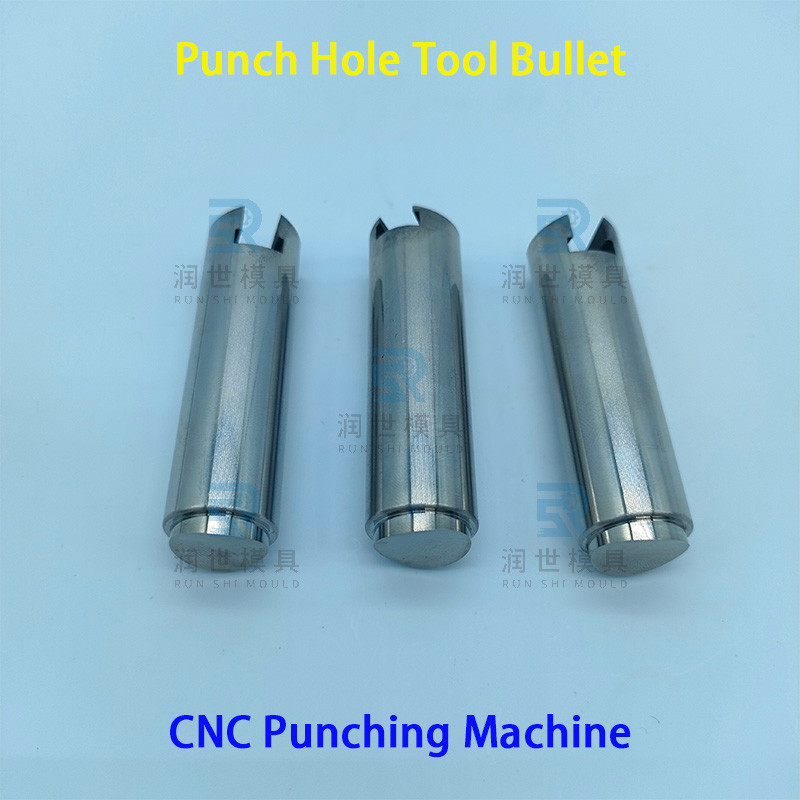

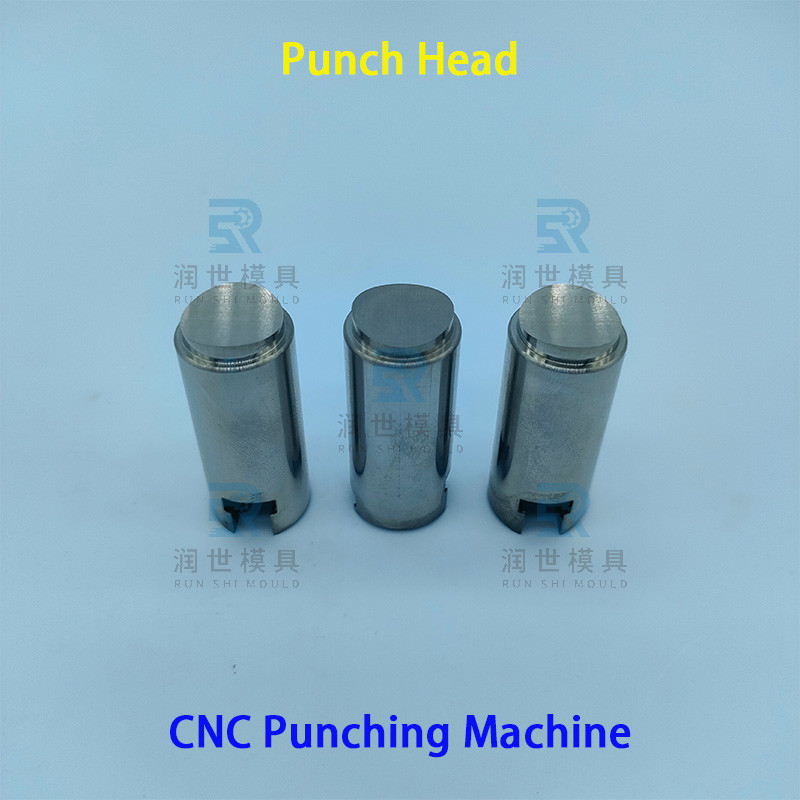

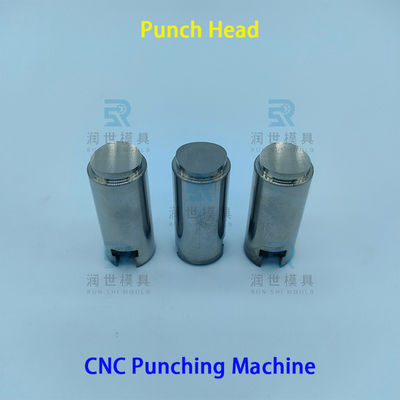

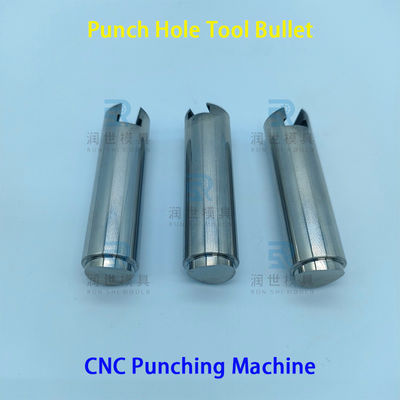

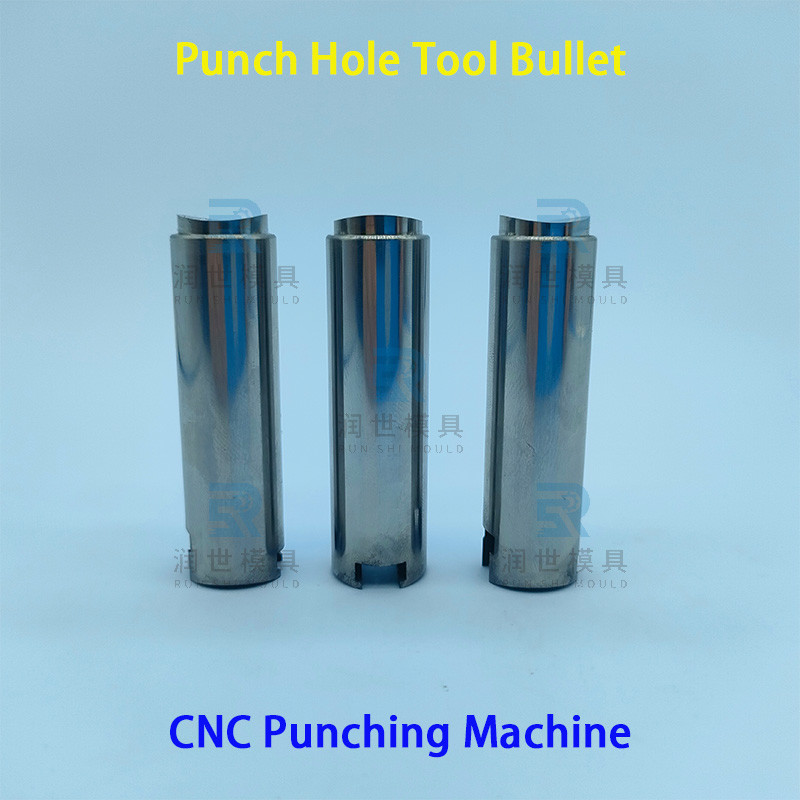

Product Images

Manufacturer Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. The company also serves industries including new energy, medical devices, semiconductors, aerospace, and automotive.

Frequently Asked Questions

Q: Are you a manufacturer or trading company?

A: We are the manufacturer.

Q: What is the primary application of this product?

A: It is essential for integrated tube processing machines in the HVAC and refrigeration heat exchanger industry.

Q: What is your production process?

A: Our experienced engineers (10+ years) manufacture to precise specifications using samples or drawings provided by customers.

Q: What are your delivery terms?

A: Standard delivery is 10-15 days for in-stock items, 20-25 days for custom orders.

Q: What are your payment terms?

A: Orders ≤$10,000 require 100% advance payment. Larger orders require 50% deposit with balance before shipment.
