3 Jaw Chuck for Integrated Tube Cutting Bending and Punching Machine
Product Specifications
| Attribute | Value |
| Product Name | 3-Jaw Chuck Punching Bullet Punching Hole Tools |
| Material | SKD11 or DC53 |
| Process Tube Diameter | Φ4.76-Φ110 |
| Processing | Precision CNC Lathe Turning |
| Heat Treatment | HRC 60°-62° |
| Punching Hole Diameter | Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22 |
| Quality | 100% Inspection |
| Surface Finish | Ra 0.4 |
| Service | OEM or ODM |
| Application | CNC 3D tube Bender, CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine |
| Usage | Clamping Copper Aluminum and Stainless Steel Tube |
Product Description
This 3-jaw chuck is designed for installation on copper tube CNC 3D bending machines, punching machines, or integrated punching tube bending and end forming machines. It is an essential component for air conditioning pipe production equipment in the refrigeration heat exchanger industry.
Manufactured from DC53 mold steel, this chuck offers high hardness, exceptional wear resistance, and extended service life. It is particularly suited for mass production of air conditioning pipes and can be adapted to fully automatic CNC Tube Integrated Machines from various manufacturers.
Technical Specifications
| Process Tube Diameter | Available Punching Hole Diameters |
| Φ9.53mm (3/8inch) | Φ5mm |
| Φ12.7mm (1/2inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ25.4mm (1inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ28.58mm (1-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ31.75mm (1-1/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ34.94mm (1-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ41.28mm (1-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ53.98mm (2-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ60.32mm (2-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Other Specifications | Custom options available |

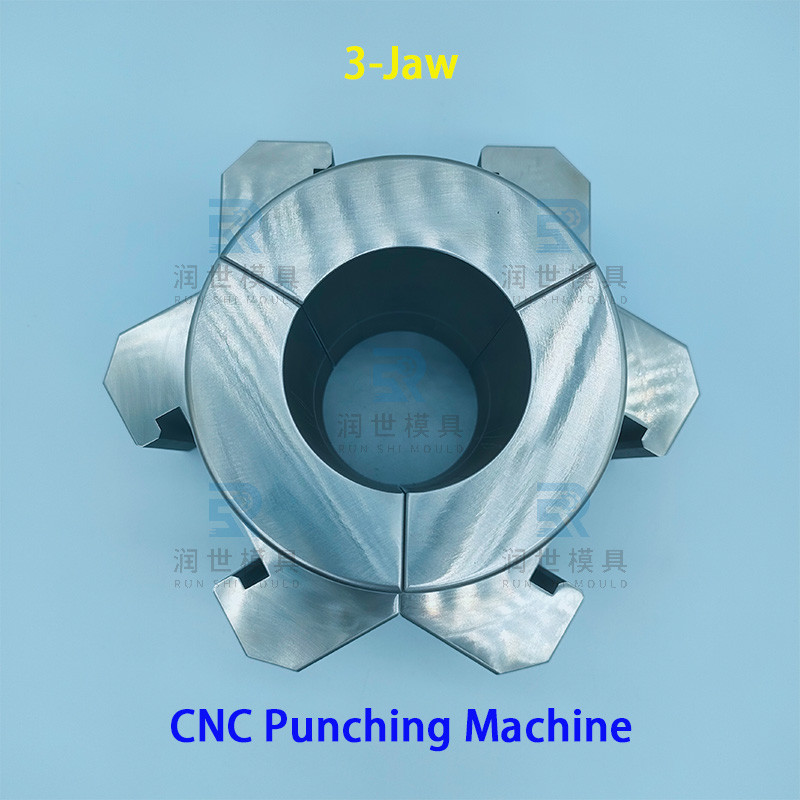

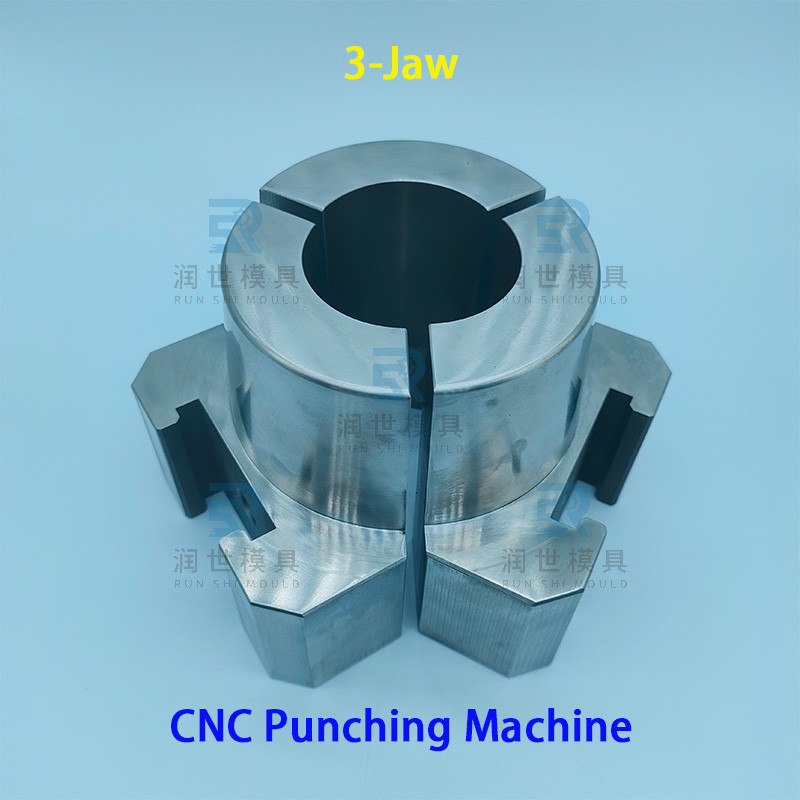

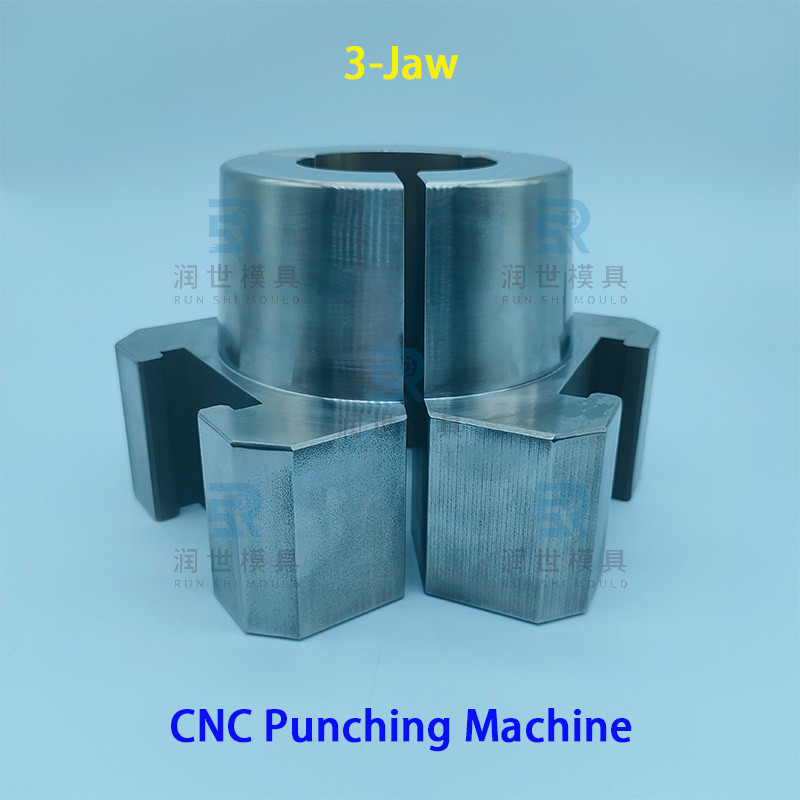

Product Images
Application Industry
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. Our expertise extends to ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive sectors.
Frequently Asked Questions
Q: What is the name of this product?
A: 3-jaw chuck punching Bullet head Punching Hole Tools
Q: Are you a trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the 3-jaw chuck mainly used for?
A: It is an essential component for Integrated Tube Cutting Bending And Punching Machines in the air-conditioning refrigeration heat exchanger industry.
Q: How do you manufacture after the order is confirmed?
A: We require samples or drawings. Our production engineers, with over 10 years of experience, expertly control tolerances and precision.
Q: What is your delivery time?
A: Typically 10-15 working days for in-stock items, or 20-25 working days for custom orders, depending on quantity.
Q: What are your payment terms?
A: For orders ≤$10,000 USD: 100% in advance. For orders >$10,000 USD: 50% T/T in advance, balance before shipment.
