Name: Φ54mm Copper Tube 3 Jaw Chuck For CNC Flute Type Punching Machine
Brand: Guangzhou Runshi Mould Co., Ltd.
SKU: 3-Jaw Chuck 01
Price: 300.50 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: 3-Jaw Chuck Punching Bullet Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets

Material: SKD11 Or DC53

Process Tube Dia.: Φ4.76-Φ110

Processing: Precision CNC Lathe Turning

Heat Treatment :: HRC 60°-62°

Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22

Quality: 100% Inspection

Surface Finish: Ra 0.4

Service: OEM Or ODM

Application: CNC 3D Tube Bender CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine

Usage: Clamping Copper Aluminum And Stainless Steel Tube

Highlight:

Copper Tube 3 Jaw Chuck

CNC Punching Machine 3 Jaw Chuck

Basic Infomation

Place of Origin: china

Brand Name: 3-Jaw Chuck

Certification: TS16949

Model Number: 3-Jaw Chuck 01

Payment & Shipping Terms

Packaging Details: Plastic box and carton box packaging

Delivery Time: 10-15 work days

Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram

Supply Ability: 10000 pieces per month

Gallery

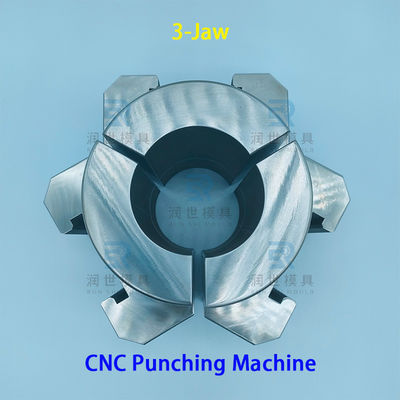

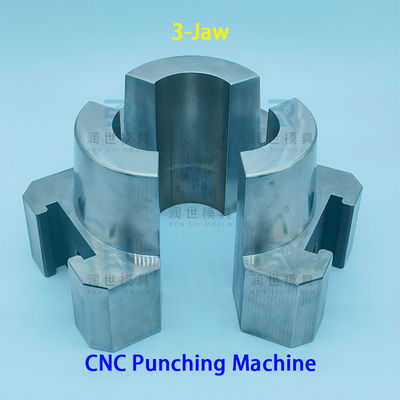

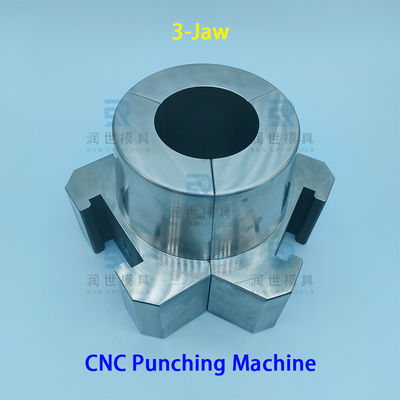

Φ54mm Copper Tube 3 Jaw Chuck For CNC Flute Type Punching Machine

Product Description

Φ54mm Copper Tube 3 Jaw Chuck For CNC Flute Type Punching Machine

Product Specifications

Attribute	Value
Product Name	3-Jaw Chuck Punching Bullet Punching Hole Tools
Material	SKD11 or DC53
Process Tube Dia.	Φ4.76-Φ110
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Punching Hole Dia.	Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality	100% Inspection
Surface Finish	Ra 0.4
Service	OEM or ODM
Application	CNC 3D tube Bender, CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine
Usage	Clamping Copper Aluminum and Stainless Steel Tube

Product Description

The 3-Jaw Chuck for Tube Punching Machines is designed for precision operation with copper tube CNC 3D bending machines and punching machines. Ideal for the refrigeration heat exchanger industry, it ensures efficient handling of air conditioning pipes with exceptional durability.

Manufactured from high-grade DC53 mold steel, this chuck offers superior hardness (HRC 60°-62°), excellent wear resistance, and long-lasting performance in mass production environments. Custom specifications are available to match various machine requirements.

Technical Specifications

Process Tube Dia.	Punching Hole Dia.
Φ9.53mm (3/8inch)	Φ5mm
Φ12.7mm (1/2inch)	Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch)	Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ31.75mm (1-1/4inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ53.98mm (2-1/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ60.32mm (2-3/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ66.68mm (2-5/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ79.38mm (3-1/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ85.73mm (3-3/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ92.08mm (3-5/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ111.12mm (4-3/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Other Specifications	Custom options available

Product Images

Manufacturer Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds and components for air conditioning, heat exchanger manufacturing, and various high-tech industries including new energy, medical devices, aerospace, and automotive sectors.

Frequently Asked Questions

Q: What is the name of this product?

A: 3-jaw chuck punching Bullet head Punching Hole Tools

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the 3-jaw chuck mainly used for?

A: Primarily used in the air-conditioning refrigeration heat exchanger industry for integrated tube processing machines.

Q: How to manufacture after the order is confirmed?

A: We require samples or drawings. Our production engineers with 10+ years experience will ensure precise tolerances.

Q: What is your delivery time?

A: 10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).

Q: What are your payment terms?

A: ≤$10,000: 100% advance. >$10,000: 50% advance, balance before shipment.
