Accurate Punching Tools For Air Conditioner Tube Fitting Punching Machine
Product Specifications
| Attribute | Value |
| Product Name | Punching Machine Punching Hole Tool Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets |
| Material | SKD11, DC53 or HSS SKH51 |
| Process Tube Dia. | Φ9.52-Φ110 |
| Processing | Precision CNC Lathe Turning |
| Heat Treatment | HRC 60°-62° |
| Punching Hole Dia. | Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22 |
| Quality | 100% Inspection |
| Surface Finish | Ra 0.4 |
| Service | OEM or ODM |
| Application | CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine |
| Usage | Punching Hole Copper Aluminum and Stainless Steel Tube |
Product Description

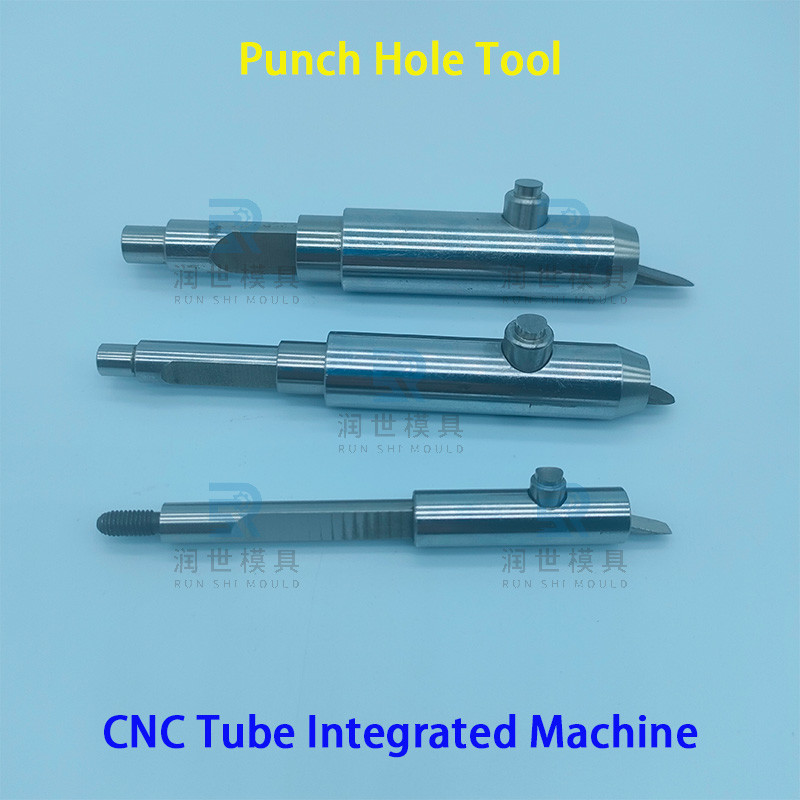

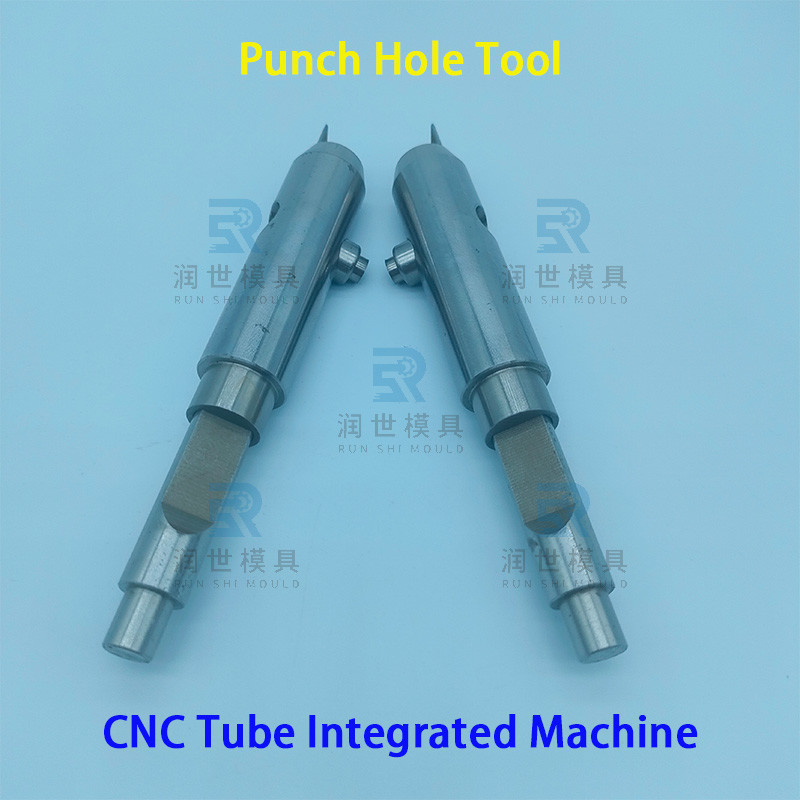

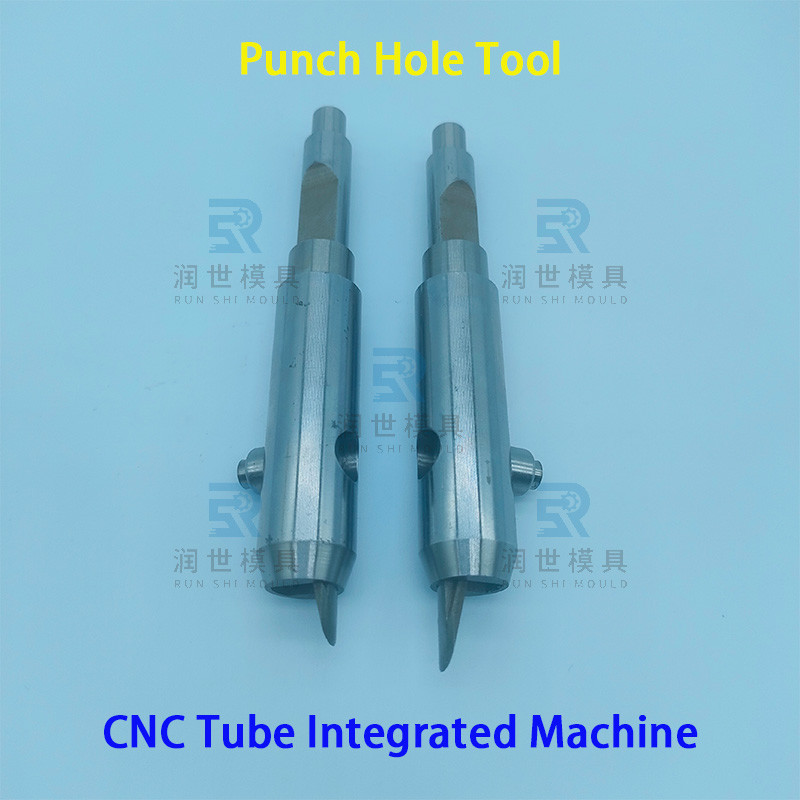

Efficient Punching Tool for Air-Conditioner Tube Fittings: This punching tool is designed for mass-production of air-conditioning pipe fittings used in refrigeration heat exchangers. The complete set includes punch, punch pusher, clamp, clamping die, push rod, and hollow tube components.
Manufactured from high-speed steel SKH51, this tool offers exceptional wear resistance and long-term durability. Suitable for processing tube diameters from Φ9.52mm to Φ110mm and punching diameters from Φ5mm to Φ22.22mm. Custom configurations are available to meet specific requirements, with compatibility for fully automated systems including OMS and JDM models.
Technical Specifications
| Process Tube Dia. | Punching Hole Dia. |
| Φ9.53mm (3/8inch) | Φ5mm |
| Φ12.7mm (1/2inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ25.4mm (1inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ28.58mm (1-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ31.75mm (1-1/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ34.94mm (1-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ41.28mm (1-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ53.98mm (2-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ60.32mm (2-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ66.68mm (2-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ79.38mm (3-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ85.73mm (3-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ92.08mm (3-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ111.12mm (4-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Other Specifications | Custom options available |
Product Gallery
Application Industry
Manufacturing Capabilities
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger production. Our expertise extends to ceramic and tungsten steel components for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive sectors.
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Machine Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullets Punch Hole Head Punch Hole Bullets
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the Punching Machine punching hole tool mainly used for?
A: It is an essential component for Integrated Tube Cutting Bending And Punching Machines in the air-conditioning refrigeration heat exchanger industry.
Q: How to manufacture after the order is confirmed?
A: We require samples or drawings for reference. Our production engineers with over 10 years of experience ensure precise tolerance control and quality.
Q: How long is your delivery time?
A: Standard delivery is 10-15 working days for in-stock items, or 20-25 working days for custom orders, depending on quantity.
Q: What is your terms of payment?
A: For orders ≤$10,000 USD: 100% in advance. For orders >$10,000 USD: 50% T/T in advance, balance before shipment.
For additional inquiries, please contact our technical team for professional support.
