Home /Products/CNC Hole Punching Machine Parts/SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine

SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine

10 PCS
MOQ
Negotiate Price
Price
SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Head Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

SKH51 HSS Punching Head

,

Copper Tubes Processing Machine Punching Head
Basic Infomation
Place of Origin: china
Brand Name: Punching Head
Certification: TS16949
Model Number: Punching Head 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine
Product Specifications
Attribute Value
Product Name Punching Head, Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machines, Tube Perforating Machines, Integrated Tube Processing Systems
Usage Punching Holes in Copper, Aluminum and Stainless Steel Tubes
Product Description

Our high-speed steel punching head is crafted from premium SKH51 material, offering exceptional hardness, durability, and wear resistance. Designed specifically for efficient production of air conditioning pipe fittings, this punching die head is compatible with copper, aluminum, and stainless steel components.

Technical Specifications
  • Process tube diameter range: Φ9.52mm-Φ110mm
  • Punching hole diameter options: Φ5mm-Φ22.22mm
  • Custom punching specifications available upon request
  • Compatible with automatic CNC punching machines from leading manufacturers
  • Precision CNC machining ensures consistent performance
Standard Size Combinations
Process Tube Diameter Available Punching Hole Diameters
Φ9.53mm (3/8") Φ5mm
Φ12.7mm (1/2") Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8") Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm

Additional sizes and custom configurations available - contact us for details.

Product Images

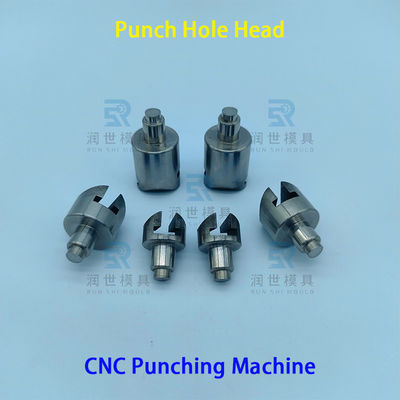

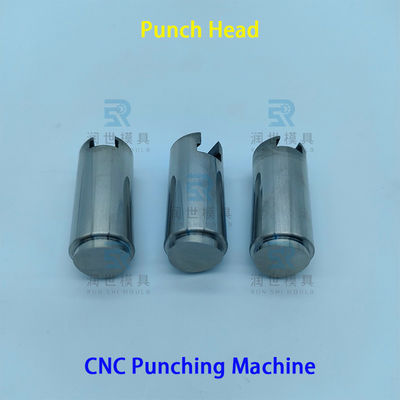

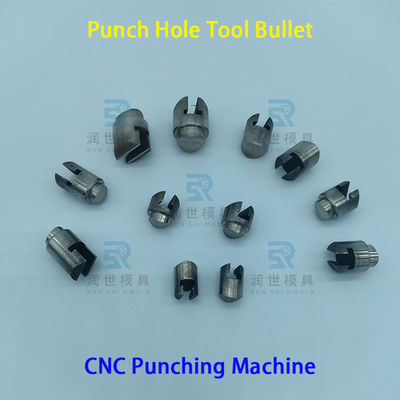

SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 0 SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 1 SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 2 SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 3 SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 4 SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 5
Manufacturing Capabilities

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, focusing on equipment molds and components for air conditioning and heat exchanger production. Our expertise extends to industries including:

  • New energy systems
  • Medical devices and semiconductor equipment
  • Aerospace and automotive applications
  • High-precision automation equipment
SKH51 HSS Punching Head for Φ9.52 Flute Type Copper Tubes Processing Machine 6
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Head, Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets
Q: Are you a trading company or manufacturer?
A: We are the manufacturer.
Q: What industry is the punching head mainly used for?
A: Primarily for air-conditioning refrigeration heat exchanger industry, compatible with integrated tube processing machines.
Q: How is manufacturing conducted after order confirmation?
A: We require samples or drawings. Our experienced engineers (10+ years) ensure precise tolerance control.
Q: What is your delivery time?
A: 10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).
Q: What are your payment terms?
A: ≤$10,000: 100% advance. >$10,000: 50% advance, balance before shipment.
