Home /Products/CNC Hole Punching Machine Parts/Flute Type Processing Machine Punching Head for Copper Tube Punching Hole

Flute Type Processing Machine Punching Head for Copper Tube Punching Hole

10 PCS
MOQ
Negotiate Price
Price
Flute Type Processing Machine Punching Head for Copper Tube Punching Hole
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Head Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

Flute Type Processing Machine Punching Head

,

Copper Tube Hole Punching Head
Basic Infomation
Place of Origin: china
Brand Name: Punching Head
Certification: TS16949
Model Number: Punching Head 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Flute Type Processing Machine Punching Head for Copper Tube Punching Hole
Product Specifications
Attribute Value
Product Name Punching Head Punching Hole Tools
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Key Features
  • Made of high-speed steel SKH51 for exceptional hardness and wear resistance
  • Extended service life for cost-effective operation
  • Essential for air conditioning pipe fittings production
  • Ideal for condenser and evaporator industry applications
  • Optimized for efficient production of flute fittings and bypass fittings
  • Compatible with various fully automatic CNC punching machines
  • Custom specifications available upon request
Compatible Machines
CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine
Material Compatibility
Copper Tube Aluminum Tube Stainless Steel Tube
Standard Specifications
Process Tube Diameter Available Punching Hole Diameters
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Product Gallery

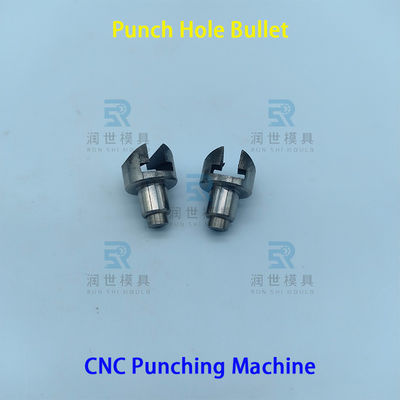

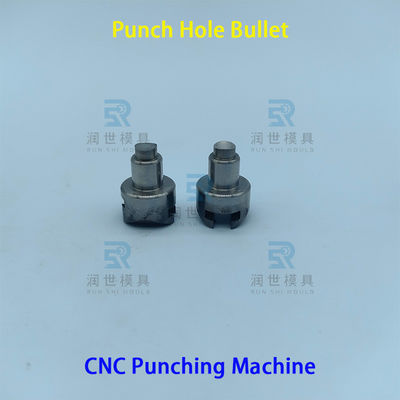

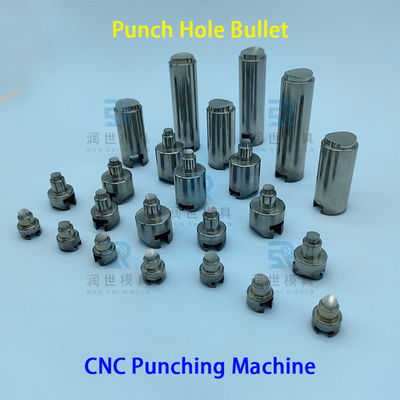

Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 0 Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 1 Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 2 Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 3 Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 4 Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 5
Application Industry
This punching head is essential for the air-conditioning refrigeration heat exchanger industry, specifically designed for integrated tube cutting, bending, and punching machines.
Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 6
Manufacturing Expertise
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for various industries including air conditioning, heat exchanger manufacturing, new energy, medical devices, and aerospace.
Flute Type Processing Machine Punching Head for Copper Tube Punching Hole 7
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Head Punching Hole Tools
Q: Are you a trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the punching head mainly used for?
A: It is essential for Integrated Tube Cutting Bending And Punching Machines in the air-conditioning refrigeration heat exchanger industry.
Q: How to manufacture after the order is confirmed?
A: We require samples or drawings. Our experienced production engineers (10+ years) know how to control tolerances and precision.
Q: What is your delivery time?
A: 10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).
Q: What are your payment terms?
A: ≤$10,000: 100% in advance. >$10,000: 50% T/T in advance, balance before shipment.
