Home /Products/CNC Hole Punching Machine Parts/Customizable Punching Hole Tool for Efficient AC Tube Fitting Production

Customizable Punching Hole Tool for Efficient AC Tube Fitting Production

10 PCS
MOQ
Negotiate Price
Price
Customizable Punching Hole Tool for Efficient AC Tube Fitting Production
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Machine Punching Hole Tool Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

Customizable Punching Hole Tool

,

Punching Machine Punching Hole Tool
Basic Infomation
Place of Origin: china
Brand Name: Punching Machine Punching Hole Tool
Certification: TS16949
Model Number: Punching Machine Punching Hole Tools 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Customizable Punching Hole Tool for Efficient AC Tube Fitting Production
Product Specifications
  • Material: SKD11, DC53 or HSS SKH51
  • Process Tube Diameter: Φ9.52-Φ110
  • Processing: Precision CNC Lathe Turning
  • Heat Treatment: HRC 60°-62°
  • Punching Hole Diameter: Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
  • Quality: 100% Inspection
  • Surface Finish: Ra 0.4
  • Service: OEM or ODM
Applications

This punching hole tool is designed for use with:

  • CNC Hole Punching Machines
  • CNC Tube Perforating Machines
  • CNC Flute Type Punching Machines
  • CNC Tube Integrated Machines (All in one)
  • Integrated Tube Cutting Bending and Punching Machines
  • Integrated Punching Tube Bending and End Forming Machines
Tube Diameter and Punching Hole Compatibility
Process Tube Dia. Punching Hole Dia.
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ31.75mm (1-1/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Product Images

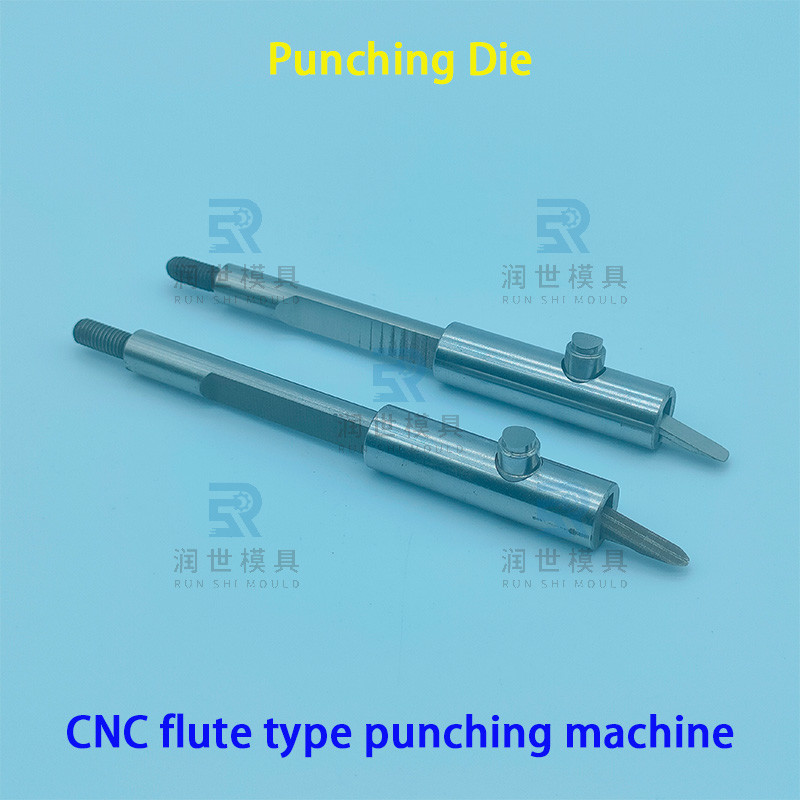

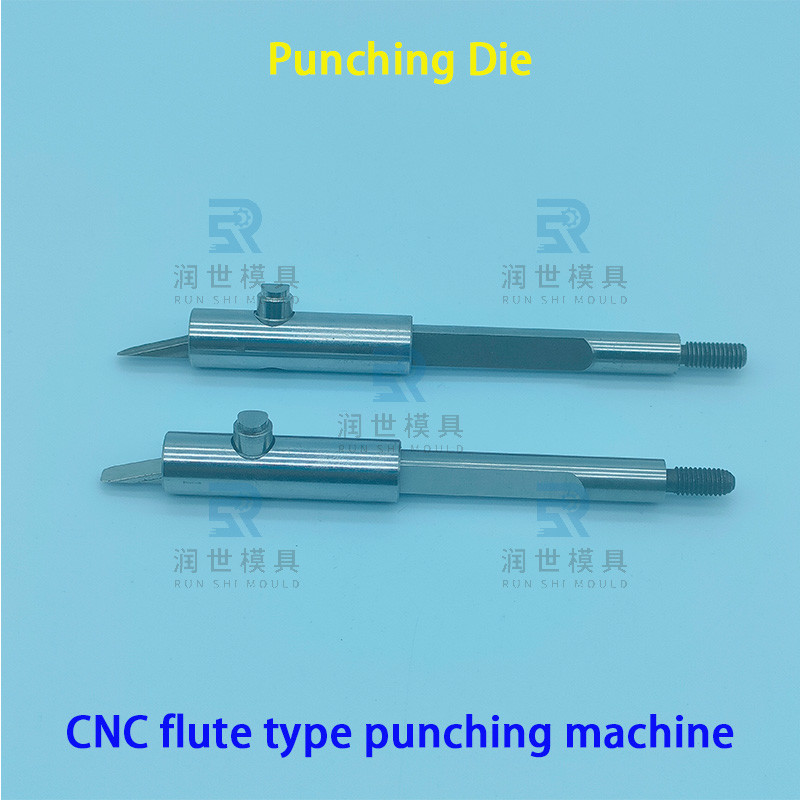

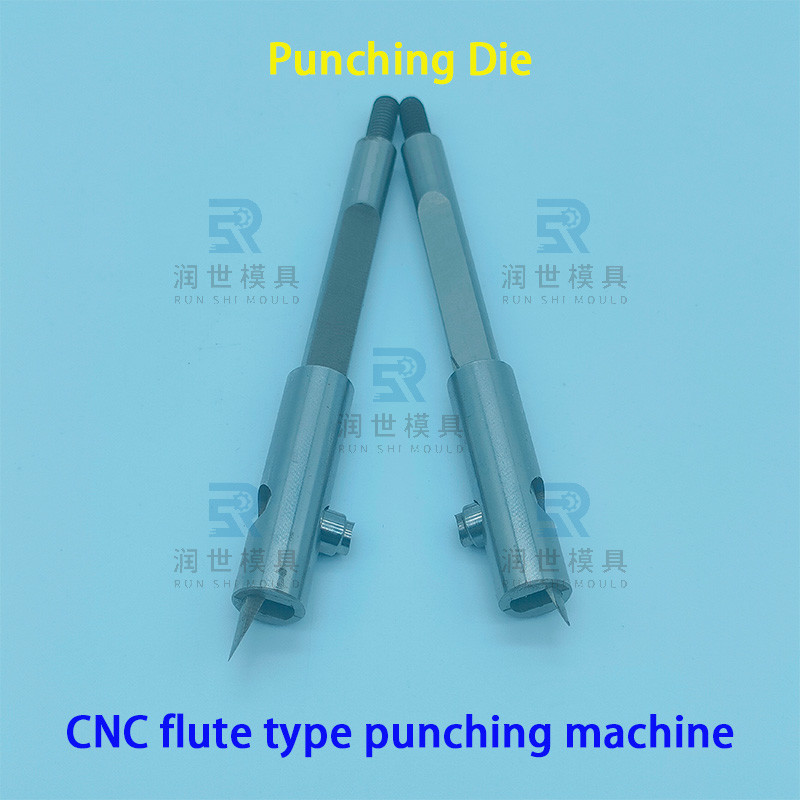

Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 0 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 1 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 2 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 3 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 4 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 5 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 6 Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 7
Manufacturing Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. We also serve industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

Customizable Punching Hole Tool for Efficient AC Tube Fitting Production 8
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Machine Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, Punch Hole Bullets
Q: Are you a trading company or manufacturer?
A: We are manufacturer.
Q: What industry is this tool mainly used for?
A: It is an essential tool for Integrated Tube Cutting Bending and Punching Machines in the air-conditioning refrigeration heat exchanger industry.
Q: How is manufacturing conducted after order confirmation?
A: We require samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.
Q: What is your delivery time?
A: 10-15 working days for in-stock items, 20-25 working days for custom orders.
Q: What are your payment terms?
A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T in advance, balance before shipment.
