Punch Hole Tools Description:
Customizable Punch Hole Tools for Air Conditioning Tube Parts:Specially designed for the refrigeration heat exchanger industry, this punch hole tools includes essential components such as a punch head, sleeve, pusher, 3-jaw chuck, clamp die, push rod, and hollow tube. Built from high-speed steel SKH51, the tools is known for its superior hardness, wear resistance, and long-lasting performance, making it ideal for the mass production of flute-shaped and custom tube parts. It can be easily integrated with fully automated tube cutting, bending, punching, and end-forming machines from manufacturers like OMS and JDM. Customization options are available for different specifications.
Punch Hole Tools Specifications:
| CNC Punching Hole Tool For Copper Tube,CNC Tube Integrated Machine(All in one),CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC flute type punching machine,Integrated Punching Tube Bending and End Forming Machine,etc (Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets) |
| Process Tube Dia. |
Punching Hole Dia. |
| Φ9.53mm(3/8inch) |
Φ5mm |
| Φ12.7mm(1/2inch) |
Φ5mm,Φ6.35mm,Φ7mm |
| Φ15.88mm(5/8inch) |
Φ5mm,Φ6.35mm,Φ7mm |
| Φ19.05mm(3/4inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm |
| Φ22.22mm(7/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm |
| Φ25.4mm(1inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm |
| Φ28.58mm(1-1/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm |
| Φ31.75mm(1-1/4inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm |
| Φ34.94mm(1-3/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm |
| Φ41.28mm(1-5/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm |
| Φ53.98mm(2-1/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm |
| Φ60.32mm(2-3/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm |
| Φ66.68mm(2-5/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm |
| Φ79.38mm(3-1/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm |
| Φ85.73mm(3-3/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm |
| Φ92.08mm(3-5/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm |
| Φ111.12mm(4-3/8inch) |
Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm |
| Other Specifications |
custom |

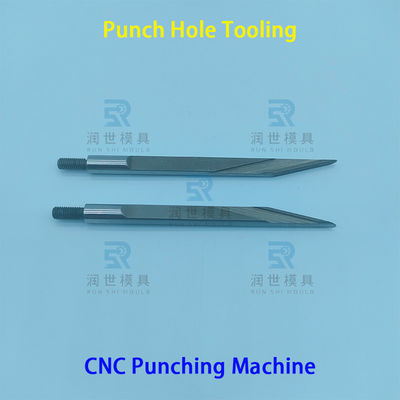

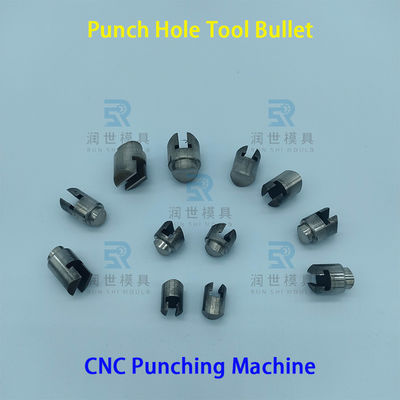

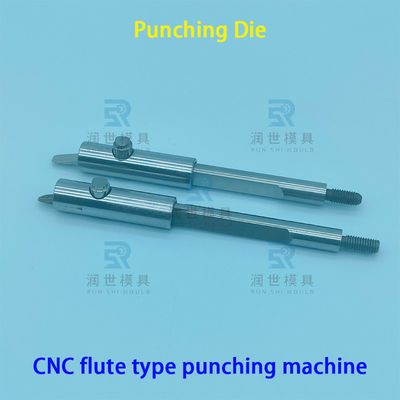

Punch Hole Tools Show:
Application Industry:
Manufacturing Workshop:
Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and so on.
FAQ
Q:What is the name of this product?
A: Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullets Punch Hole Head Punch Hole Bullets
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: What industry is the Punch Hole Tools mainly used for?
A: It is an important Punching Hole Tools for For Integrated Tube Cutting Bending And Punching Machine in the air-conditioning refrigeration heat exchanger industry.
Q: How to manufacture after the order is confirmed?
A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.
Q: How long is your delivery time?
A: Generally it is 10-15 working days if the goods are in stock. or it is 20-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance ,balance before shippment.
