High-speed Steel Air-conditioning Tube Punching Hole Tooling
Product Specifications
| Attribute | Value |
| Product Name | Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet, Punch Hole Head, Punch Hole Bullets |
| Material | SKD11, DC53 or HSS SKH51 |
| Process Tube Diameter | Φ9.52-Φ110 |
| Processing | Precision CNC Lathe Turning |
| Heat Treatment | HRC 60°-62° |
| Punching Hole Diameter | Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22 |
| Quality | 100% Inspection |
| Surface Finish | Ra 0.4 |
| Service | OEM or ODM |
| Application | CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine |
| Usage | Punching Hole Copper Aluminum and Stainless Steel Tube |
Product Description
High-Performance Punching Hole Tooling for Air-Conditioning Tube Manufacturing: This advanced punching hole tooling set is designed for the efficient production of air-conditioning tube components in the refrigeration heat exchanger industry. Comprising a punch head, sleeve, pusher, clamp die, push rod, and hollow tube, it ensures precise punching, bending, expanding, and shrinking of tube parts.
Crafted from high-speed steel SKH51, known for its exceptional hardness, wear resistance, and durability, it is ideal for high-volume manufacturing of flute-shaped and special-shaped tubes. The tooling is compatible with fully automated tube cutting, bending, punching, and end-forming machines from various manufacturers. Custom specifications are available to meet customer requirements.
Technical Specifications
| Process Tube Diameter | Punching Hole Diameter |
| Φ9.53mm (3/8inch) | Φ5mm |
| Φ12.7mm (1/2inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ25.4mm (1inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ28.58mm (1-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ31.75mm (1-1/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ34.94mm (1-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ41.28mm (1-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ53.98mm (2-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ60.32mm (2-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ66.68mm (2-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ79.38mm (3-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ85.73mm (3-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ92.08mm (3-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Φ111.12mm (4-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Other Specifications | Custom |

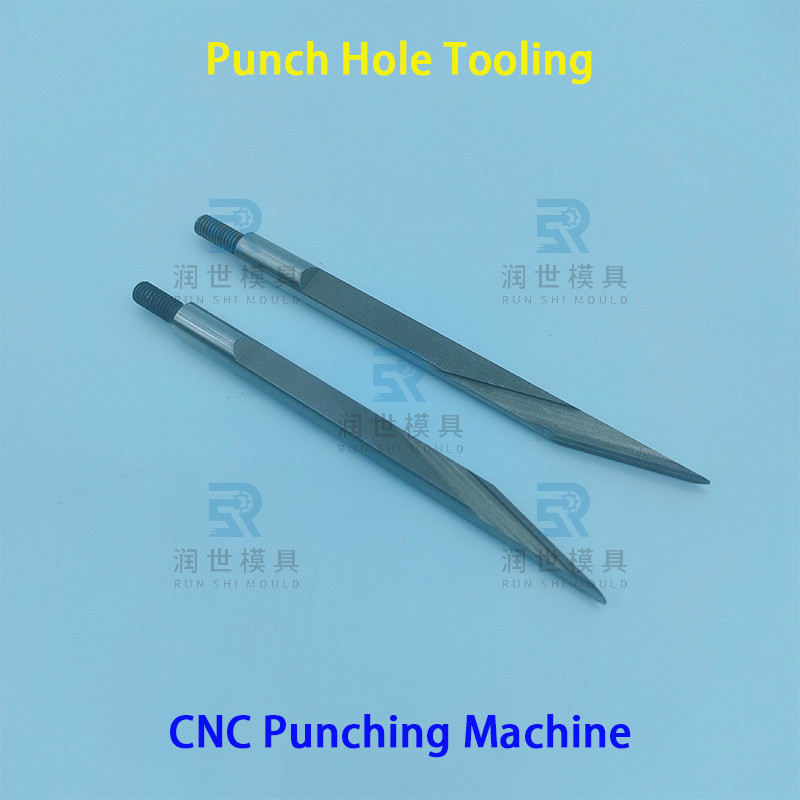

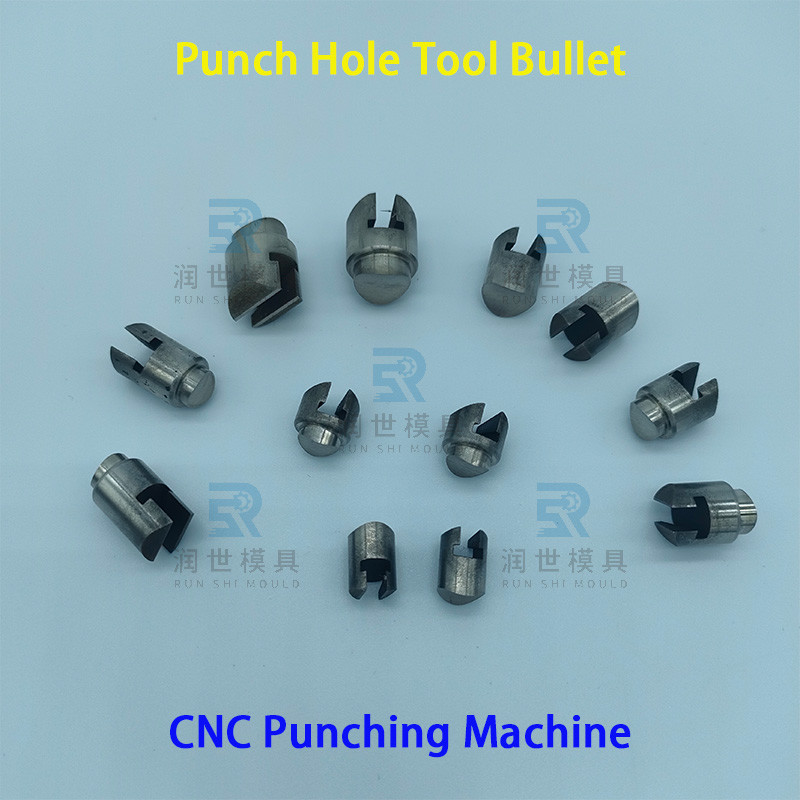

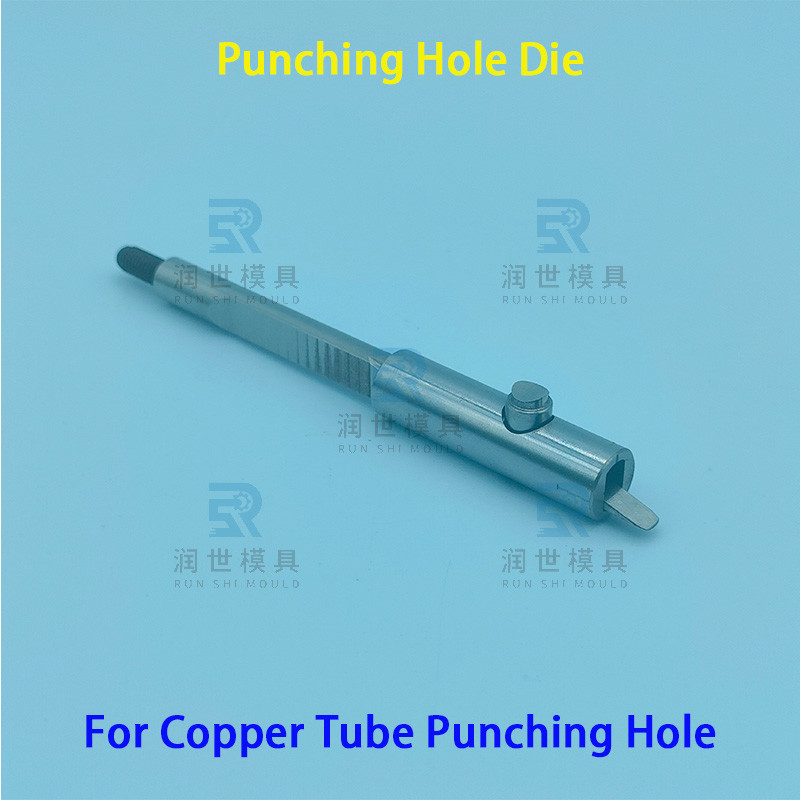

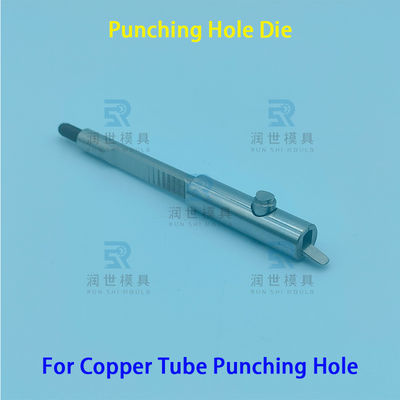

Product Gallery
Application Industry
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automobiles.
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, Punch Hole Bullets
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the Punching Hole Tooling mainly used for?
A: It is an important Punching Hole Tools for Integrated Tube Cutting Bending And Punching Machine in the air-conditioning refrigeration heat exchanger industry.
Q: How to manufacture after the order is confirmed?
A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.
Q: How long is your delivery time?
A: Generally it is 10-15 working days if the goods are in stock. Or it is 20-25 working days if the goods are not in stock, depending on quantity.
Q: What is your terms of payment?
A: Payment ≤ 10000USD, 100% in advance. Payment > 10000USD, 50% T/T in advance, balance before shipment.
If you have another question, please feel free to contact us.
