Home /Products/CNC Hole Punching Machine Parts/High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool

High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool

10 PCS
MOQ
Negotiate Price
Price
High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Machine Punching Hole Tool Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

High-Speed Punching Hole Tool

,

Air-conditioning Refrigeration Punching Hole Tool

,

Wear Resistant Punching Hole Tool
Basic Infomation
Place of Origin: china
Brand Name: Punching Machine Punching Hole Tool
Certification: TS16949
Model Number: Punching Machine Punching Hole Tools 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T,D/A,D/P,L/C,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description
High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool
Product Specifications
Product Name Punching Machine Punching Hole Tool
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine, Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine
Usage Punching Hole Copper Aluminum and Stainless Steel Tube
Product Description

High-Speed Punching Hole Tool for Tube Fitting Production: This robust punching tool set is ideal for the air-conditioning refrigeration industry, especially for manufacturing flute-shaped and custom tube fittings. With its construction from SKH51 high-speed steel, the tool is resistant to wear and maintains high hardness for extended use.

Compatible Tube and Hole Sizes
Process Tube Diameter Punching Hole Diameter
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ53.98mm (2-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ60.32mm (2-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ111.12mm (4-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Other Specifications Custom sizes available
Product Gallery

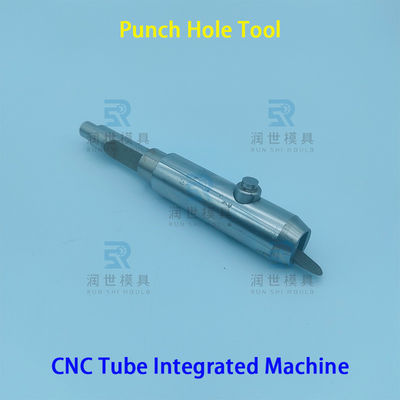

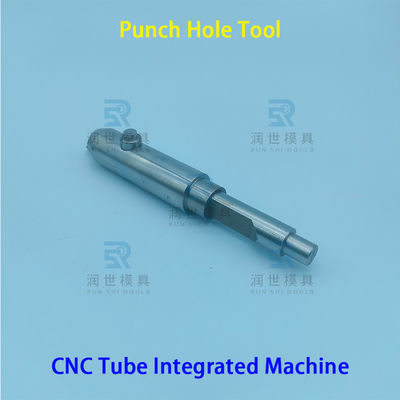

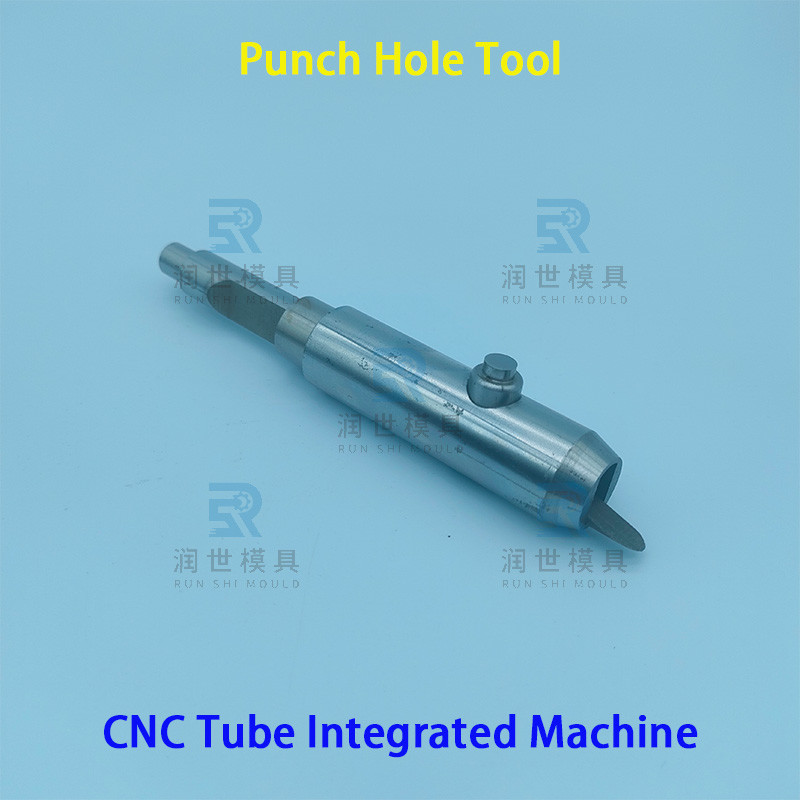

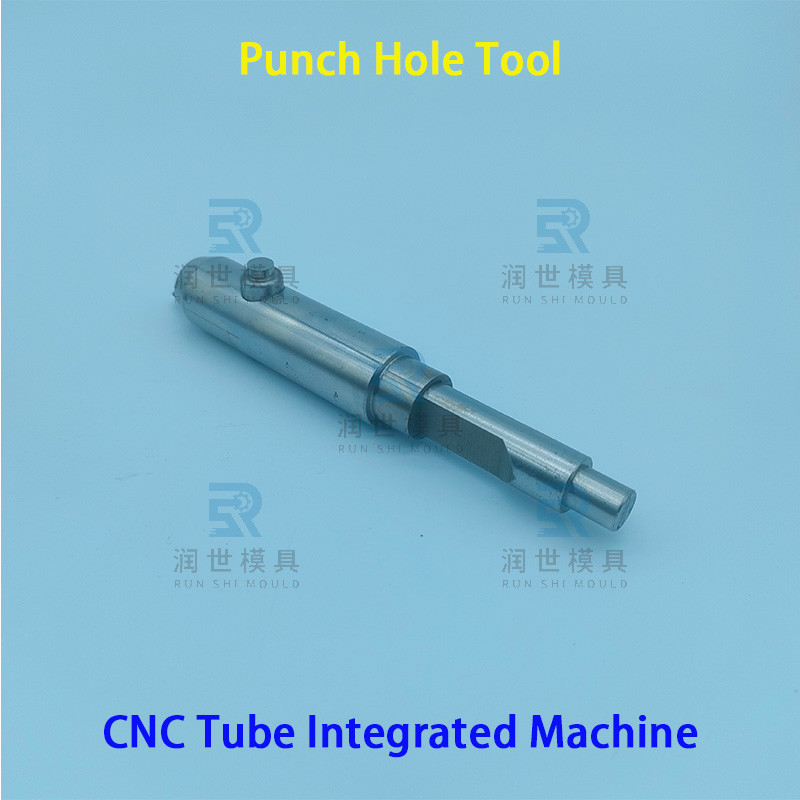

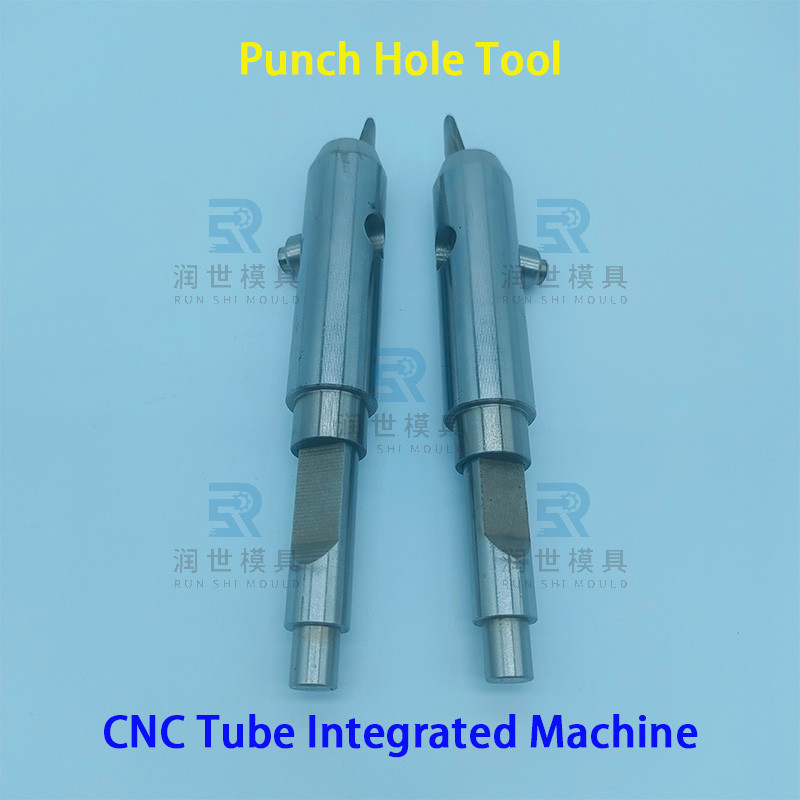

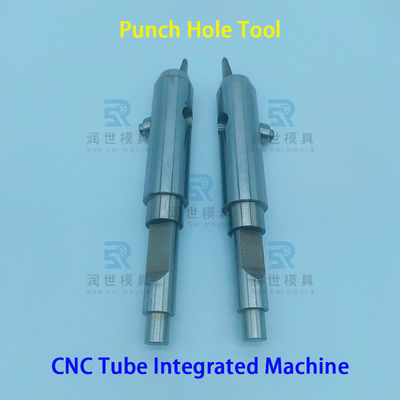

High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 0 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 1 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 2 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 3 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 4 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 5 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 6 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 7 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 8 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 9 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 10 High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 11
Application Industry
High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 12
Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. We also serve industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

High-Speed Punching Hole Tool Air-conditioning Refrigeration Wear Resistant Punching Hole Tool 13
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Machine Punching Hole Tools, also known as Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, or Punch Hole Bullets.
Q: Are you a trading company or manufacturer?
A: We are the manufacturer.
Q: What industry is this tool mainly used for?
A: It is essential for Integrated Tube Cutting Bending And Punching Machines in the air-conditioning refrigeration heat exchanger industry.
Q: How do you manufacture after order confirmation?
A: We require samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.
Q: What is your delivery time?
A: 10-15 working days for in-stock items, 20-25 working days for custom orders, depending on quantity.
Q: What are your payment terms?
A: For orders ≤ $10,000 USD: 100% in advance. For orders > $10,000 USD: 50% T/T in advance, balance before shipment.
