Home /Products/CNC Hole Punching Machine Parts/Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet

Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet

10 PCS
MOQ
Negotiate Price
Price
Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

Copper Tube Punch Hole Tooling

,

Wear Resistance Punching Die

,

Hardness Punch Hole Tool Bullet
Basic Infomation
Place of Origin: china
Brand Name: Punch Hole Tooling
Certification: TS16949
Model Number: Punch Hole Tooling 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T,D/A,D/P,L/C,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die
Product Specifications
Attribute Value
Product Name Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Applications CNC Hole Punching Machines, Tube Perforating Machines, Integrated Tube Processing Systems
Usage Punching Holes in Copper, Aluminum and Stainless Steel Tubes
Product Description

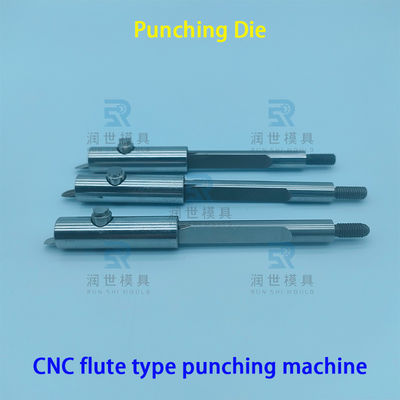

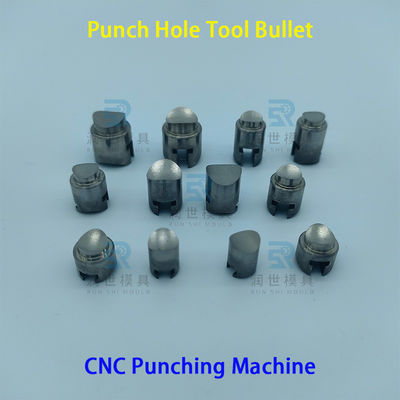

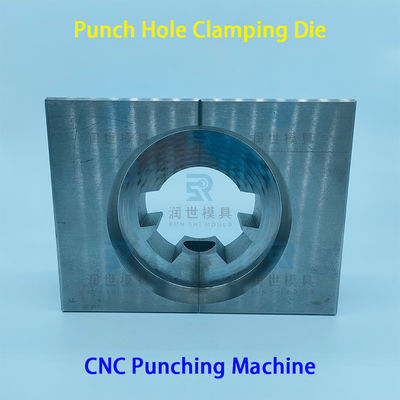

Our Durable Punch Hole Tooling is engineered for precision tube forming in high-demand air-conditioning production environments. The tooling set includes punch head, punch sleeve, punch pusher, clamp die, push rod, and hollow tube components.

Constructed from high-speed steel SKH51, this tooling offers exceptional wear resistance, hardness, and longevity, making it ideal for producing flute-shaped, special-shaped, and other complex tube forms. Designed for mass-production environments, it supports automated systems including OMS and JDM fully automatic tube processing machines.

Technical Specifications
Process Tube Diameter Available Punching Hole Diameters
Φ9.53mm (3/8") Φ5mm
Φ12.7mm (1/2") Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8") Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ111.12mm (4-3/8") Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Custom specifications available upon request
Product Gallery
Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 0 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 1 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 2 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 3 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 4 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 5 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 6 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 7 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 8 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 9
Application Industries
Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 10 Copper Tube Punch Hole Tooling Wear Resistance Hardness Punching Die Punch Hole Tool Bullet 11
Frequently Asked Questions
Q: What is the name of this product?

A: Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, Punch Hole Bullets

Q: Are you a trading company or manufacturer?

A: We are the manufacturer.

Q: What industry is the Punch Hole Tooling mainly used for?

A: It is an essential tool for Integrated Tube Cutting, Bending and Punching Machines in the air-conditioning, refrigeration, and heat exchanger industry.

Q: How is manufacturing conducted after order confirmation?

A: We require samples or drawings. Our production engineers, with over 10 years of experience, precisely control tolerances and specifications.

Q: What is your delivery time?

A: 10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).

Q: What are your payment terms?

A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T advance, balance before shipment.
