Home /Products/CNC Hole Punching Machine Parts/Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming

Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming

10 PCS
MOQ
Negotiate Price
Price
Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Machine Punching Hole Tool Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

Φ28 Customizable Punching Hole Tool

,

Punching Bending Punching Hole Tool

,

End Forming Punching Hole Tool
Basic Infomation
Place of Origin: china
Brand Name: Punching Machine Punching Hole Tool
Certification: TS16949
Model Number: Punching Machine Punching Hole Tools 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T,D/A,D/P,L/C,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Φ28 Customizable Punching Hole Tool For Punching, Bending And End Forming
Product Specifications
Attribute Value
Product Name Punching Machine Punching Hole Tool, Punch Hole Tooling, Punch Hole Bullets
Material SKD11, DC53 or HSS SKH51
Process Tube Dia. Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Dia. Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine, Integrated tube cutting bending and Punching machine
Usage Punching Hole Copper Aluminum and Stainless Steel Tube
Product Description
This punching tool includes a punch, punch pusher, clamp, clamping die, push rod and hollow tube components. Essential for air-conditioning pipe fittings production in refrigeration heat exchanger industry. Made from high-speed steel SKH51 for exceptional hardness, wear resistance and extended service life.
Ideal for: Mass production of flute-shaped tube fittings, special-shaped punching bending expanding and shrinking tube fittings. Compatible with fully automatic cutting bending punching and end forming integrated machines (All In One) from manufacturers like OMS and JDM.
Technical Specifications
Process Tube Dia. Punching Hole Dia.
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm,Φ6.35mm,Φ7mm
Φ15.88mm (5/8inch) Φ5mm,Φ6.35mm,Φ7mm
Φ19.05mm (3/4inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm
Φ25.4mm (1inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm
Φ28.58mm (1-1/8inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm
Φ31.75mm (1-1/4inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm
Φ41.28mm (1-5/8inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm
Φ53.98mm (2-1/8inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm
Φ60.32mm (2-3/8inch) Φ5mm,Φ6.35mm,Φ7mm,Φ9.52mm,Φ12.7mm,Φ15.88mm,Φ19.05mm,Φ22.22mm
Other Specifications Custom sizes available
Product Gallery

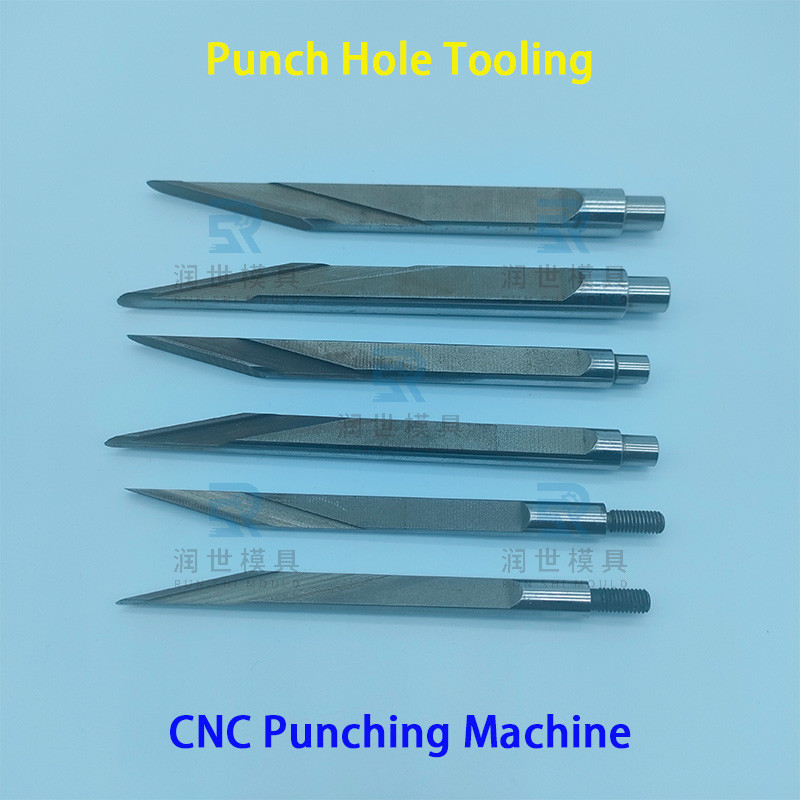

Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 0

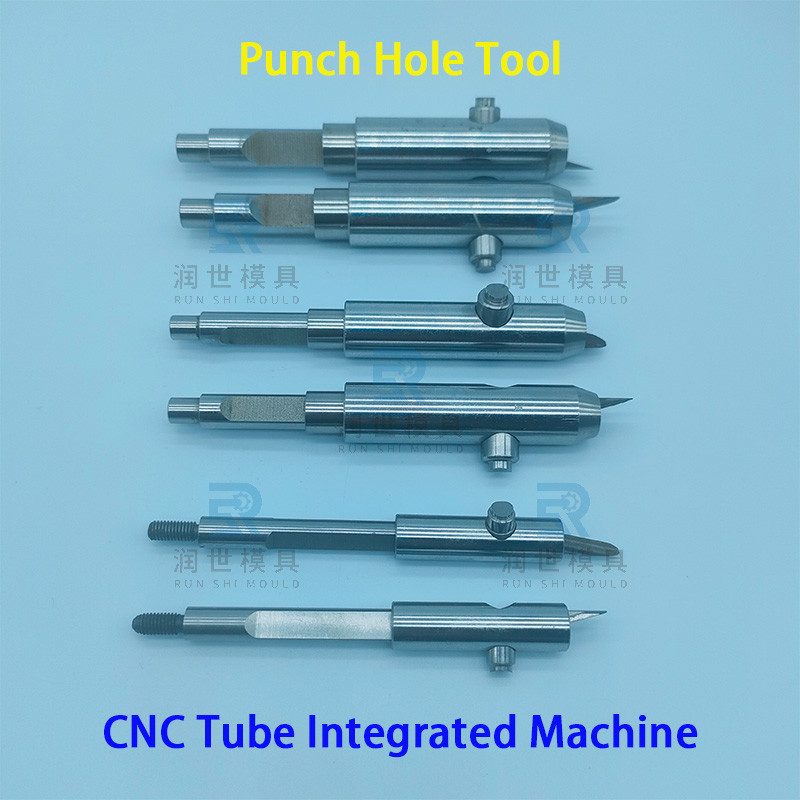

Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 1

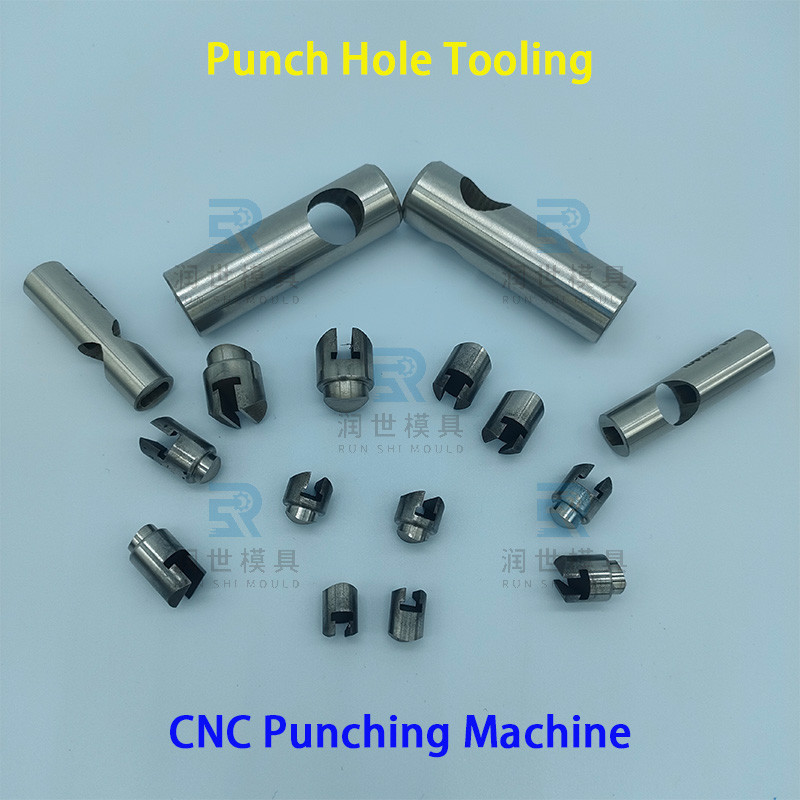

Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 2
Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 3
Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 4
Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 5
Application Industries
Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 6
Manufacturing Capabilities
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing for air conditioning and heat exchanger production. Our expertise extends to equipment molds, vulnerable parts, and cutting tools for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, and high-precision automation equipment.
Φ28 Customizable Punching Hole Tool For Punching Bending And End Forming 7
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Machine Punching Hole Tools, Punch Hole Tooling, Punch Hole Bullets
Q: Are you a trading company or manufacturer?
A: We are the manufacturer.
Q: What industry is this tool mainly used for?
A: Essential for Integrated Tube Cutting Bending And Punching Machines in air-conditioning refrigeration heat exchanger industry.
Q: How is manufacturing conducted after order confirmation?
A: We require samples or drawings. Our production engineers with 10+ years experience precisely control tolerances and specifications.
Q: What is your delivery time?
A: 10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).
Q: What are your payment terms?
A: ≤$10,000 USD: 100% advance. >$10,000 USD: 50% advance, 50% before shipment.
For additional inquiries, please contact our technical team.
