Fin Mold for Fin Press Stamping Machine Produce Air Conditioning

Fin Mold for Fin Press Stamping Machine Produce Air Conditioning

Brand Name:	Fin Mold
Model Number:	Fin Mold 001
MOQ:	1 set
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Fin Die Fin Mold Fin Line Fin Press Line Fin Processing Line Fin Production Line Fin Stamping Line Fin Press Machine Fin Stamping Machine Fin Stamping Press Fin Stamping Press Machine Close Type Fin Press Line Open Type Fin Press Line

Model NO.:

45T, 63T, 80T, 100T, 125T

Specification:

Φ5,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ12.7,Φ14.5,Φ15.88

Drive Mode:

Electric

Control Way:

Servo Control

Optional Function:

Press And Forming

Quality:

100% Inspection

Operate Way:

Touch Screen

Technical:

Aluminum Foil Coil

Application:

High Speed Fin Press Line For Pressing Aluminum Foil, Copper Foil, Stainless Steel Foil, Etc

High Light:

High Speed Fin Press Line For Stamping Aluminum Foil, Copper Foil, Stainless Steel Foil, Etc

Packaging Details:

Wooden box

Supply Ability:

30 sets per month

Highlight:

Fin Press Stamping Machine Fin Mold

Fin Press Stamping Machine Fin Die

Product Description

Fin Mold for Fin Press Stamping Machine Produce Air Conditioning

Product Specifications

Attribute	Value
Product Name	Fin die, Fin Mold, Fin Line, Fin Press Line, Fin Processing Line, Fin Production Line, Fin Stamping Line, Fin Press Machine, Fin Stamping Machine, Fin Stamping Press, Fin Stamping Press Machine, Close Type Fin Press Line, Open Type Fin Press Line
Model NO.	45T, 63T, 80T, 100T, 125T
Specification	Φ5,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ12.7,Φ14.5,Φ15.88
Drive Mode	Electric
Control Way	Servo control
Optional Function	Press and forming
Quality	100% Inspection
Operate Way	Touch Screen
Technical	aluminum foil Coil
Application	High speed fin press line for Pressing aluminum foil, copper foil, stainless steel foil, etc

Product Description

The fin mold is a versatile continuous progressive mold used for high-speed stamping of aluminum, copper, and stainless steel strips into various shapes. These fins are critical in the production of evaporators, condensers, and surface coolers for air conditioning, refrigeration, and heat exchange systems. Common fin designs include curved, elliptical tube, and thinning/stretching fins.

Available Specifications

Φ5, Φ6.35, Φ7, Φ7.94, Φ9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88 (customized sizes available)

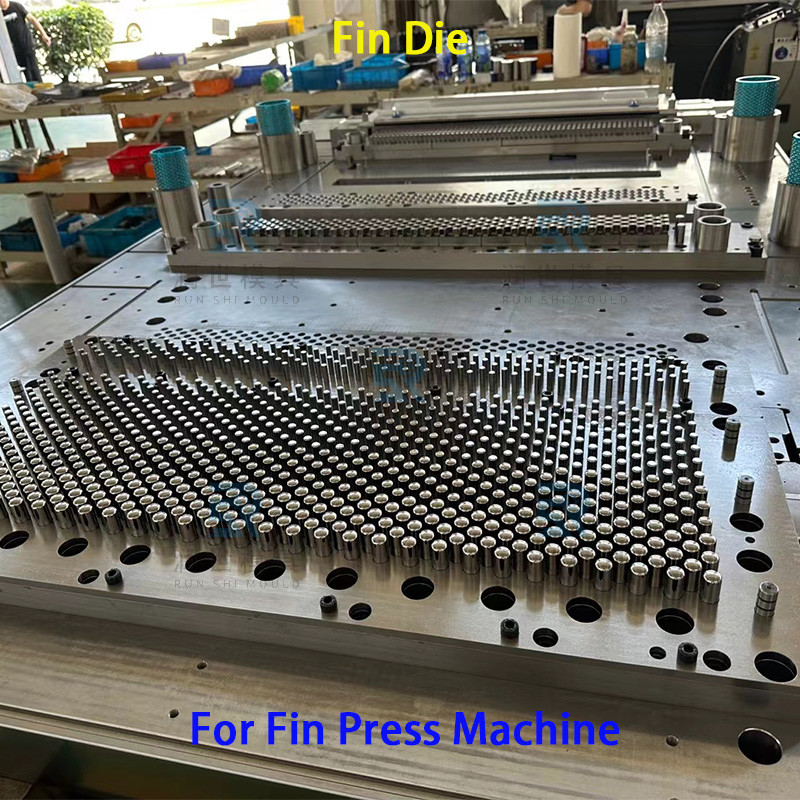

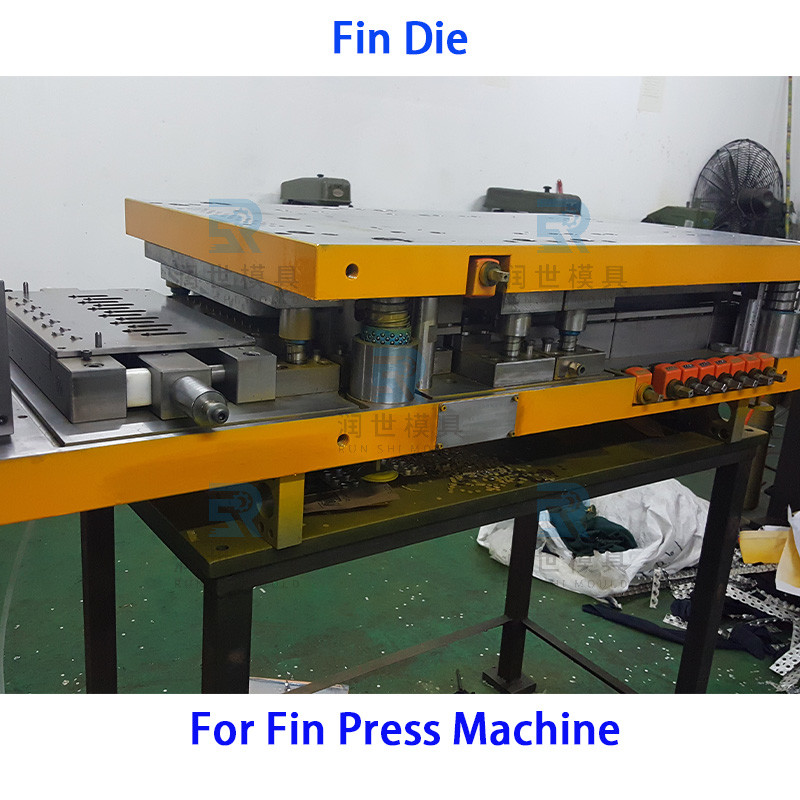

Product Images

Application Industry

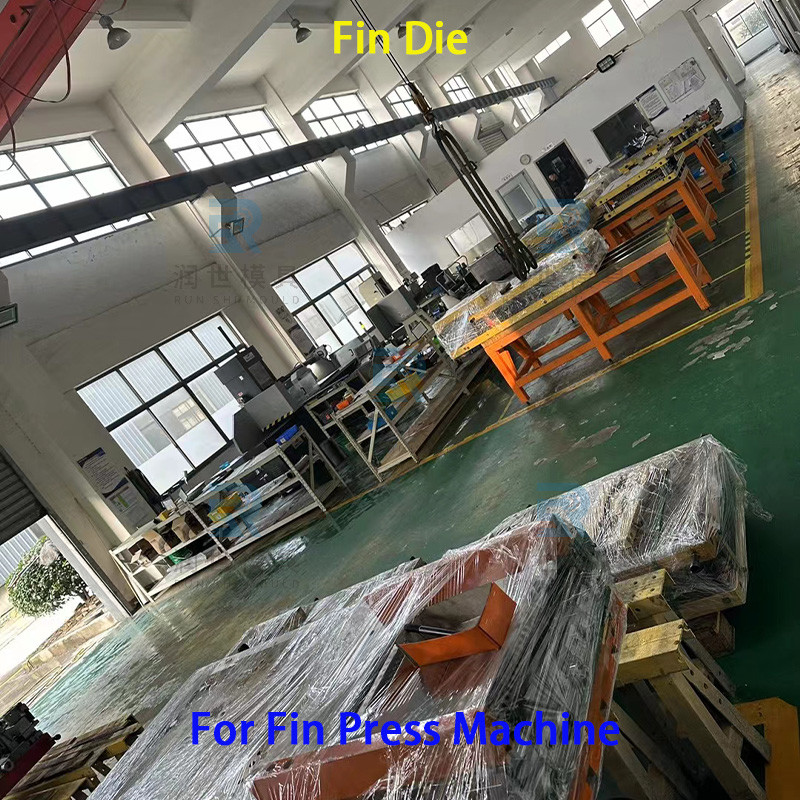

Manufacturer Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing machine equipment, fin dies, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. Our expertise extends to industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

Frequently Asked Questions

Q: What is the name of this product?

A: Fin die, Fin Mold, Fin Line, Fin Press Line, Fin Processing Line, Fin Production Line, Fin Stamping Line, Fin Press Machine, Fin Stamping Machine, Fin Stamping Press, Fin Stamping Press Machine, Close Type Fin Press Line, Open Type Fin Press Line

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the fin die mainly used for?

A: It is an important die for the production of fins in the air conditioning and refrigeration industry, heat exchangers, surface cooler, evaporators, and condensers.

Q: How to manufacture after the order is confirmed?

A: We need samples or drawings (one is sufficient). Our production engineers have over 10 years of experience in controlling tolerances and precision.

Q: How long is your delivery time?

A: 20-30 working days for in-stock items; 40-60 working days for custom orders (quantity dependent).

Q: What are your payment terms?

A: ≤$10,000: 100% in advance. >$10,000: 50% T/T in advance, balance before shipment.

For additional questions, please feel free to contact us.
