Precision Machine And Fin Die For Producing Heat Exchanger Coil Fins

Precision Machine And Fin Die For Producing Heat Exchanger Coil Fins

Brand Name:	Fin Die
Model Number:	Fin Die 001
MOQ:	1 set
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Fin Die Fin Mold Fin Line Fin Press Line Fin Processing Line Fin Production Line Fin Stamping Line Fin Press Machine Fin Stamping Machine Fin Stamping Press Fin Stamping Press Machine Close Type Fin Press Line Open Type Fin Press Line

Model NO.:

45T, 63T, 80T, 100T, 125T

Specification:

Φ5,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ12.7,Φ14.5,Φ15.88

Drive Mode:

Electric

Control Way:

Servo Control

Optional Function:

Press And Forming

Quality:

100% Inspection

Operate Way:

Touch Screen

Technical:

Aluminum Foil Coil

Application:

High Speed Fin Press Line For Pressing Aluminum Foil, Copper Foil, Stainless Steel Foil, Etc

High Light:

High Speed Fin Press Line For Stamping Aluminum Foil, Copper Foil, Stainless Steel Foil, Etc

Packaging Details:

Wooden box

Supply Ability:

30 sets per month

Highlight:

Heat Exchanger Coil Fin Die

Precision Machine And Fin Die

Product Description

Precision Machine And Fin Die For Producing Heat Exchanger Coil Fins

Product Specifications

Attribute	Value
Product Name	Fin die, Fin Mold, Fin Line, Fin Press Line, Fin Processing Line, Fin Production Line, Fin Stamping Line, Fin Press Machine, Fin Stamping Machine, Fin Stamping Press, Fin Stamping Press Machine, Close Type Fin Press Line, Open Type Fin Press Line
Model NO.	45T, 63T, 80T, 100T, 125T
Specification	Φ5,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ12.7,Φ14.5,Φ15.88
Drive Mode	Electric
Control Way	Servo control
Optional Function	Press and forming
Quality	100% Inspection
Operate Way	Touch Screen
Technical	aluminum foil Coil
Application	High speed fin press line for Pressing aluminum foil, copper foil, stainless steel foil, etc

Product Description

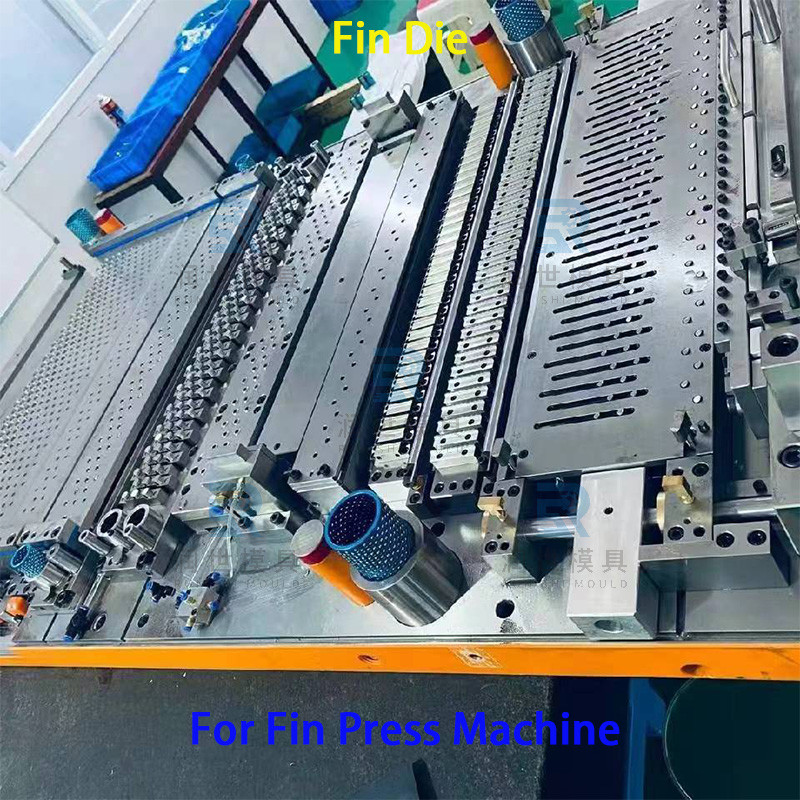

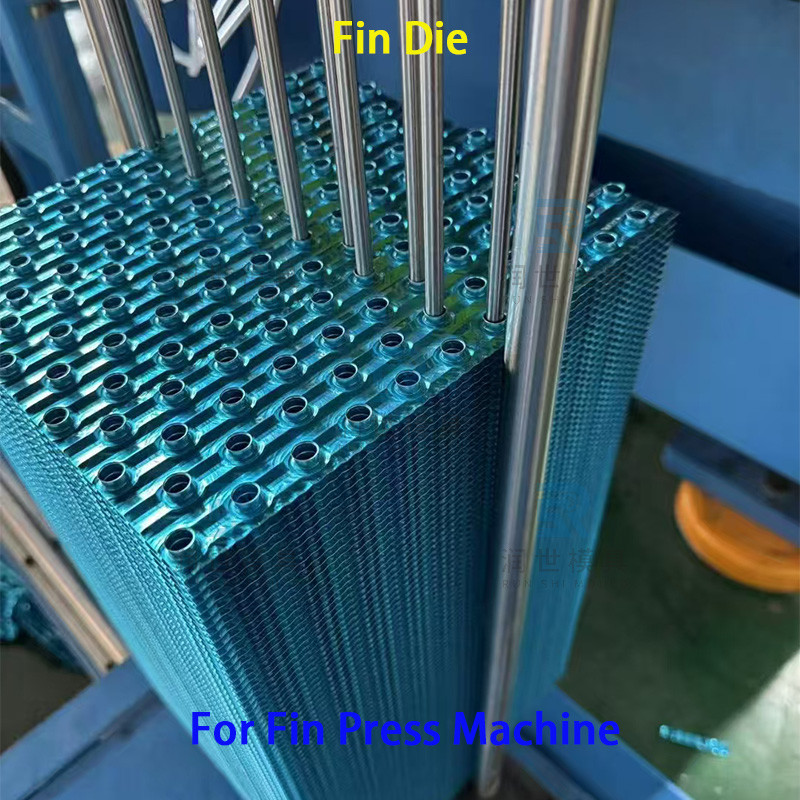

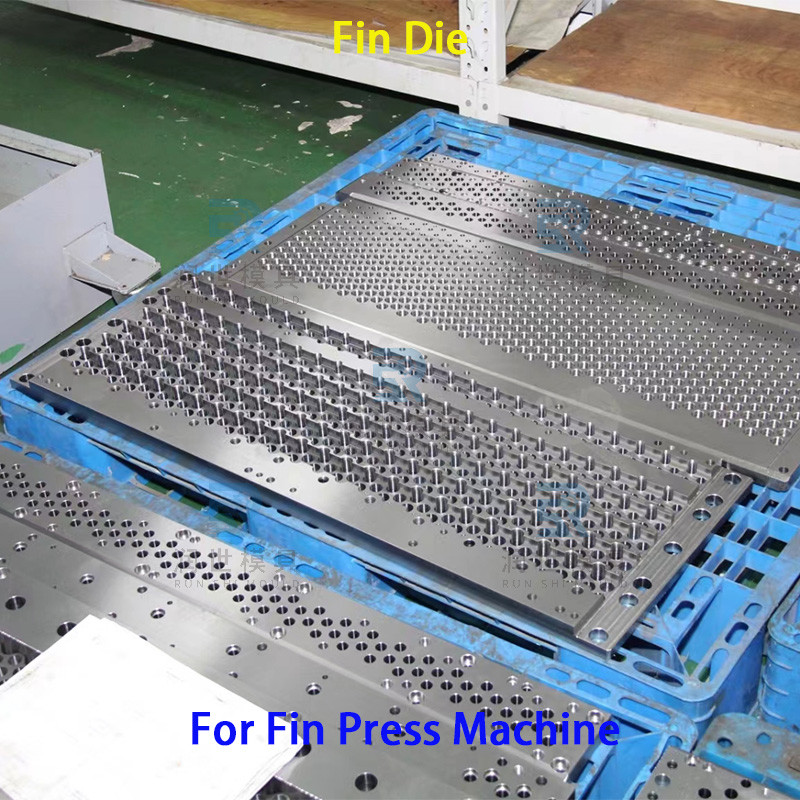

The fin die is a continuous progressive stamping die designed for high-speed punching machines to process aluminum strips, copper strips, and stainless steel strips into various shapes. These stamped fins are essential components in the production of evaporators, condensers, and surface coolers for the air conditioning, refrigeration, and heat exchange industries.

Available Fin Shapes

Thinning and stretching fins
Curved fins
Elliptical tube fins

Standard Specifications

Φ5, Φ6.35, Φ7, Φ7.94, Φ9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88 (Custom sizes available)

Key Applications

Household air conditioning systems
Central air conditioning systems
Automotive air conditioning
Rail transit air conditioning
Heat pump systems

Product Gallery

Application Industries

Manufacturing Capabilities

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing:

Machine equipment and fin dies for air conditioning and heat exchanger manufacturing
Vulnerable parts and cutting tools
Ceramic and tungsten steel parts for various industries including new energy, medical devices, aerospace, and automotive

Frequently Asked Questions

Q: What is the name of this product?

A: Fin die, Fin Mold, Fin Line, Fin Press Line, Fin Processing Line, Fin Production Line, Fin Stamping Line, Fin Press Machine, Fin Stamping Machine, Fin Stamping Press, Fin Stamping Press Machine, Close Type Fin Press Line, Open Type Fin Press Line.

Q: Are you a trading company or manufacturer?

A: We are the manufacturer.

Q: What industry is the fin die mainly used for?

A: It is essential for producing fins in the air conditioning, refrigeration, heat exchangers, surface coolers, evaporators, and condensers industries.

Q: How do you manufacture after order confirmation?

A: We require samples or drawings. Our production engineers with over 10 years of experience ensure precise tolerance control.

Q: What is your delivery time?

A: 20-30 working days for in-stock items, 40-60 working days for custom orders (quantity dependent).

Q: What are your payment terms?

A: ≤$10,000: 100% in advance. >$10,000: 50% T/T in advance, balance before shipment.

For any additional questions, please feel free to contact our technical team.
