DC53 Material Tubing Bender Clamping Die For OD 7mm Multi Use Tube Bender Machine
Product Specifications
| Attribute |
Value |
| Product Name |
Return Bender Die Clamping Die Guided Die R-Tool Bender Die |
| Material |
DC53 |
| Specification |
Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 60°-62° |
| Bending Tube ID |
Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88 |
| Quality |
100% Inspection |
| Surface Finish |
Ra 0.2 |
| Surface Treatment |
Mirror polishing or DLC Coating |
| Service |
OEM or ODM |
| Application |
CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender |
| Usage |
Bending Copper, Aluminum and Steel Tube |
Product Description
This premium tube bender clamping die is manufactured from high-grade DC53 die steel with a hardness of 60°-62° HRC for exceptional strength and precision. The mirror-polished bending groove ensures clean, bright, and scratch-free bends, making it ideal for copper and aluminum pipe elbows in air conditioning and refrigeration applications.
Compatible with small-U bending machines from leading brands including OMS, JDM, and OAK, this die supports a comprehensive range of pipe sizes from Φ4.76 to Φ15.88, with custom specifications available upon request.
Supported Tube Sizes
Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

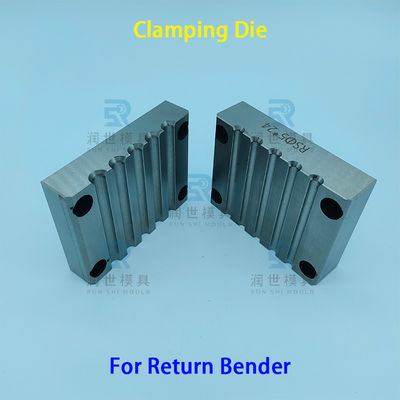

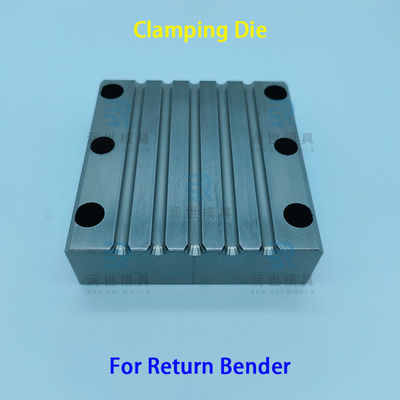

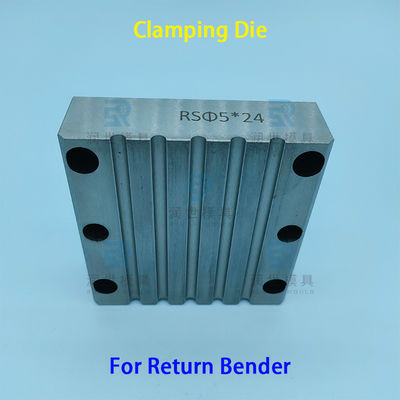

Product Images
Application Industry
Manufacturing Capabilities
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger production. Our expertise extends to ceramic and tungsten steel components for industries including new energy, fluid control, medical devices, semiconductors, aerospace, photovoltaics, lithium batteries, petrochemicals, automation equipment, electronic communication, and automotive applications.
Frequently Asked Questions
What is the name of this product?
Return Bender Die Clamping Die Guided Die R-Tool Bender Die
Are you a trading company or manufacturer?
We are the manufacturer.
What industry is this die mainly used for?
Essential for CNC 3D tube bending machines, copper tube hairpin benders, and return benders in HVAC and refrigeration applications.
How do you manufacture after order confirmation?
We require samples or drawings. Our production engineers with 10+ years experience precisely control tolerances and specifications.
What is your delivery time?
5-10 working days for in-stock items, 10-25 working days for custom orders (quantity dependent).
What are your payment terms?
≤$10,000: 100% advance. >$10,000: 50% advance, balance before shipment.
