Return Bender Spare Parts Clamping Die for OD 6.35mm Copper Tube Bending Machine
Product Specifications
| Attribute |
Value |
| Product Name |
Return Bender Die Clamping Die Guided Die R-Tool Bender Die |
| Material |
DC53 |
| Specification |
Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 60°-62° |
| Bending Tube ID |
Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88 |
| Quality |
100% Inspection |
| Surface Finish |
Ra 0.2 |
| Surface Treatment |
Mirror polishing or DLC Coating |
| Service |
OEM or ODM |
| Application |
CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender |
| Usage |
Bending Copper, Aluminum and Steel Tube |
Product Description
Designed for high-precision tube bending, this clamping die is crafted from DC53 die steel, offering a robust hardness range of 60°-62° for reliable, long-lasting performance. The bending groove is processed with meticulous accuracy and mirror-polished to guarantee smooth, flawless bends for copper and aluminum pipes.
Perfect for use with small-U bending machines from leading brands such as OMS, JDM, and OAK, this die is a crucial tool for creating high-quality elbows in the HVAC and refrigeration industries. It is capable of bending pipes with outer diameters ranging from Φ4.76 to Φ15.88, including common sizes like Φ5, Φ6.35, Φ7, Φ9.52, and Φ12. Custom specifications can also be tailored to meet specific production needs.
Available Sizes
Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

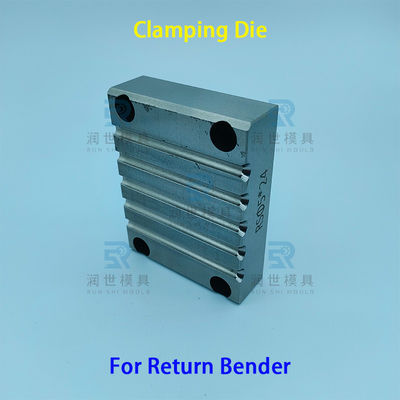

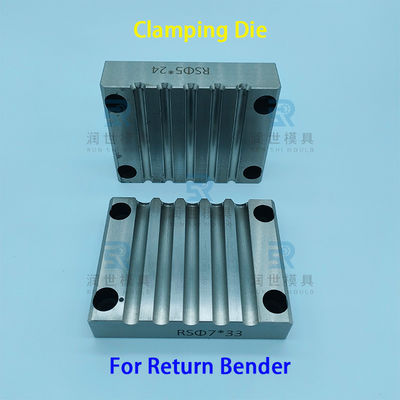

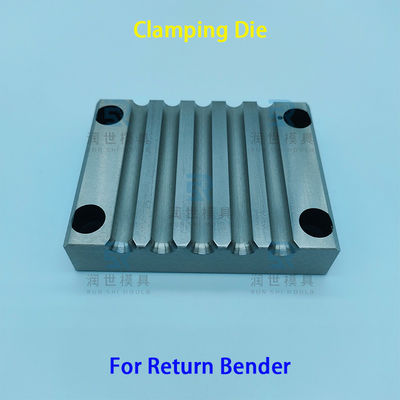

Product Images
Application Industry
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive applications.
Frequently Asked Questions
Q: What is the name of this product?
A: Return Bender Die Clamping Die Guided Die R-Tool Bender Die
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the Return Bender Clamping Die mainly used for?
A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender
Q: How to manufacture after the order is confirmed?
A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.
Q: How long is your delivery time?
A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.
If you have another question, please feel free to contact us.
