Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending

Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending

Brand Name:	Dull Mandrel
Model Number:	Dull Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15 Or YG8

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Return Bender Spare Parts Dull Mandrel

Return Bender 5mm Dull Mandrel

Product Description

Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending

Product Specifications

Attribute	Value
Product Name	Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 GCr15 or YG8
Specification	Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

Dull Mandrel Description:

This dull mandrel is made of high-quality bearing steel and uses a chrome-plated surface process. According to the shape of the rod end, it is divided into elliptical mandrels, semicircular mandrels and thumb-shaped mandrels. The dull mandrel is installed on a small U-shaped tube bender (return bender), a long U-shaped tube bender (hairpin bender) or a manual tube bender to bend copper and aluminum tube elbows or long U-shaped hairpin tubes.

It is widely used in the production and manufacturing workshops of household air conditioners, automotive air conditioners and rail transit air conditioners. The copper tube bent with this dull mandrel is full and bright without wrinkles or scratches. The outer diameter of the copper or aluminum pipe that can be bent includes: Φ4.76 Φ5 Φ6.35 Φ7, etc. Any specifications can be customized.

Dull Mandrel Specifications

Φ4.14
Φ6.0
Φ6.22
Φ6.85
Φ8.55
Φ8.8
Φ9.6
Φ10.6
Φ12.9
Φ14.1
Φ15.5
Φ16.5
Φ18.3

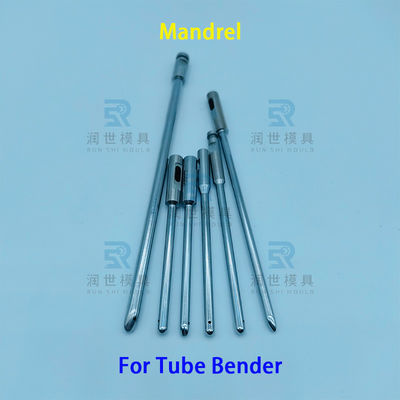

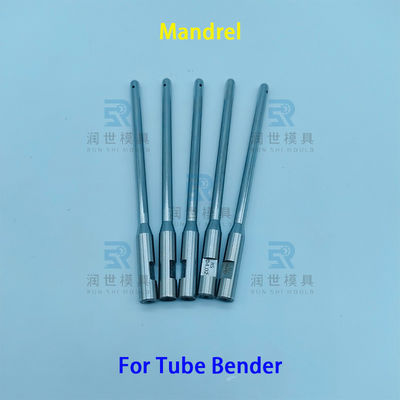

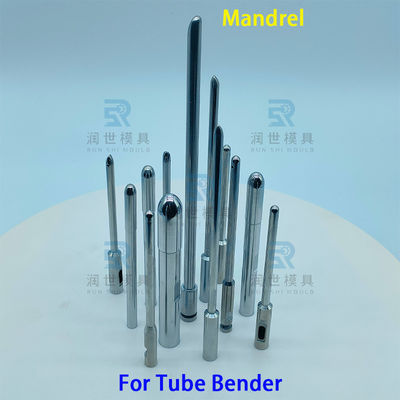

Product Gallery

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and so on.

Frequently Asked Questions

Q: What is the name of this product?

A: Universal Mandrel One-way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Dull Mandrel mainly used for?

A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us
