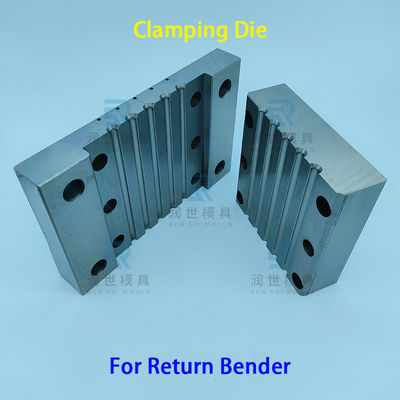

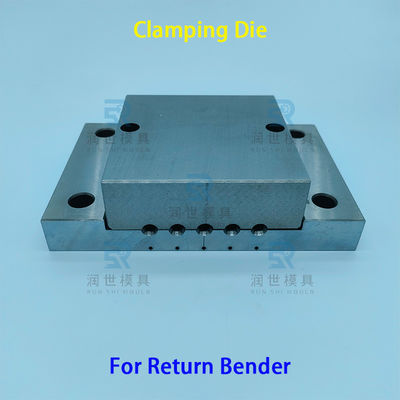

Common Use DC53 Clamping Die for OD 5mm Return Bender and Bending Machine

Common Use DC53 Clamping Die for OD 5mm Return Bender and Bending Machine

Brand Name:	Return Bender Clamping Die
Model Number:	Return Bender Clamping Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Return Bender Die Clamping Die Guided Die R-Tool Bender Die

Material:

DC53

Specification:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Bending Tube ID:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or DLC Coating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Return Bender DC53 Clamping Die

Bending Machine Clamping Die

OD 5mm Bending Machine Clamping Die

Product Description

Common Use DC53 Clamping Die for OD 5mm Return Bender and Bending Machine

Product Specifications

Attribute	Value
Product Name	Return Bender Die Clamping Die Guided Die R-Tool Bender Die
Material	DC53
Specification	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Bending Tube ID	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or DLC Coating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

This high-quality tube bender clamping die is crafted from DC53 die steel, offering exceptional hardness (60°-62° HRC) for superior durability and precision. Designed for small-U bending machines, it is compatible with various manufacturers including OMS, JDM, and OAK.

Ideal for the air conditioning and refrigeration industries, this die ensures smooth, scratch-free bends for copper and aluminum pipes. The bending groove is meticulously processed and mirror-polished to guarantee flawless results.

Available in multiple diameters: Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28. Custom specifications are available upon request.

Product Gallery

Application Industries

Manufacturing Capabilities

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds and precision parts for various industries including:

Air conditioning and heat exchanger manufacturing
New energy and fluid control systems
Medical devices and semiconductor equipment
Aerospace and photovoltaics
Lithium batteries and petrochemical applications
High-precision automation and electronic communication
Automotive components

Frequently Asked Questions

Q: What is the name of this product?

A: Return Bender Die Clamping Die Guided Die R-Tool Bender Die

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Return Bender Clamping Die mainly used for?

A: It is an important bending tube component for CNC 3D tube bending machines, copper tube hairpin benders, and return benders.

Q: How do you manufacture after the order is confirmed?

A: We require samples or drawings. Our production engineers with over 10 years of experience precisely control tolerances and machining accuracy.

Q: What is your delivery time?

A: 5-10 working days for in-stock items, 10-25 working days for custom orders (depending on quantity).

Q: What are your payment terms?

A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T in advance, balance before shipment.
