Copper Aluminum Tube Elbows Bender Die, Tubing Return Bender Die Mirror Polished
Product Specifications
| Attribute |
Value |
| Product Name |
Return Bender Die Clamping Die Guided Die R-Tool Bender Die |
| Material |
DC53 |
| Specification |
Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 60°-62° |
| Bending Tube ID |
Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88 |
| Quality |
100% Inspection |
| Surface Finish |
Ra 0.2 |
| Surface Treatment |
Mirror polishing or DLC Coating |
| Service |
OEM or ODM |
| Application |
CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender |
| Usage |
Bending Copper, Aluminum and Steel Tube |
Product Description
This high-performance tube return bender die is crafted from DC53 die steel with a hardness of 60°-62°, offering outstanding durability and precision. The mirror-polished, finely processed bending groove ensures smooth and wrinkle-free bends in copper and aluminum tubes.
Essential for the air conditioning and refrigeration industry, it is compatible with small-U copper tube bending machines from manufacturers like OMS, JDM, and OAK. Custom specifications are available to suit various pipe diameters.
Available Sizes
Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

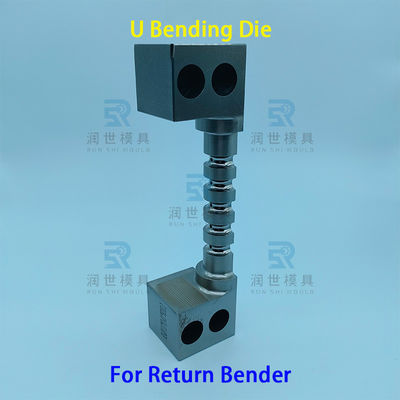

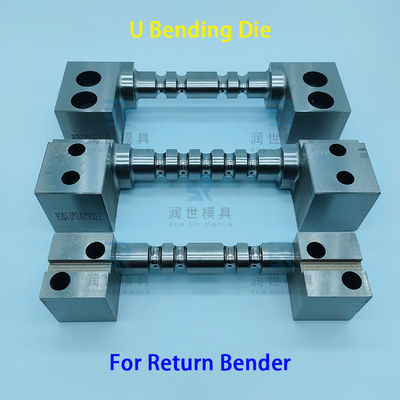

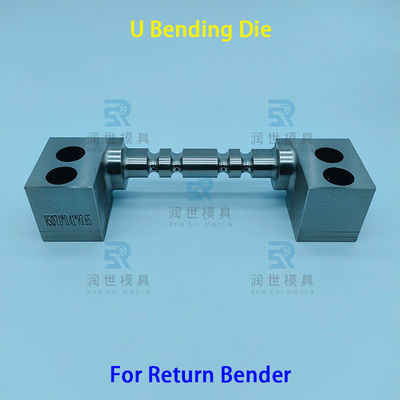

Product Images
Application Industry
Manufacturing Capabilities
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. Our expertise extends to ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive applications.
Frequently Asked Questions
Q: What is the name of this product?
A: Return Bender Die Clamping Die Guided Die R-Tool Bender Die
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the Return Bender Die mainly used for?
A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender.
Q: How to manufacture after the order is confirmed?
A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.
Q: How long is your delivery time?
A: Generally it is 5-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, depending on quantity.
Q: What is your terms of payment?
A: Payment ≤10000USD, 100% in advance. Payment >10000USD, 50% T/T in advance, balance before shipment.
If you have another question, please feel free to contact us.
