Precision OAK Φ7 Return Bender Die For Copper And Aluminum Pipe Tube Bending
Product Specifications
| Attribute |
Value |
| Product Name |
OAK Bending Die Clamping Die Guided Die R-Tool Bender Die |
| Material |
DC53 |
| Specification |
Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 60°-62° |
| Bending Tube ID |
Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88 |
| Quality |
100% Inspection |
| Surface Finish |
Ra 0.2 |
| Surface Treatment |
Mirror polishing or DLC Coating |
| Service |
OEM or ODM |
| Application |
CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender |
| Usage |
Bending Copper, Aluminum and Steel Tube |
Product Description
The OAK Return Bending Die is crafted from DC53 die steel with a hardness of 60°-62°, delivering high precision and excellent durability. The mirror-polished bending groove ensures smooth, full, and bright bends in copper and aluminum tubes without wrinkles or scratches.
Ideal for use in small-U copper tube benders, this die is widely used in the production of pipe elbows for the air conditioning and refrigeration industry, compatible with machines from OMS, JDM, and OAK.
Available Sizes
Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

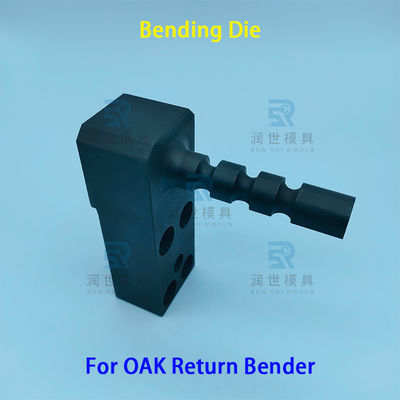

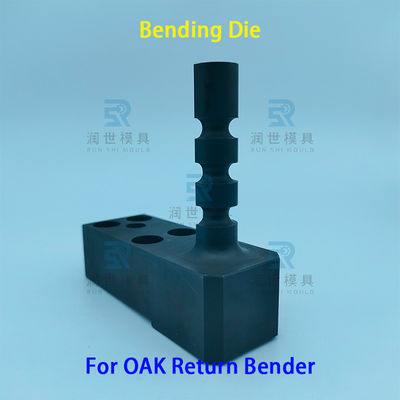

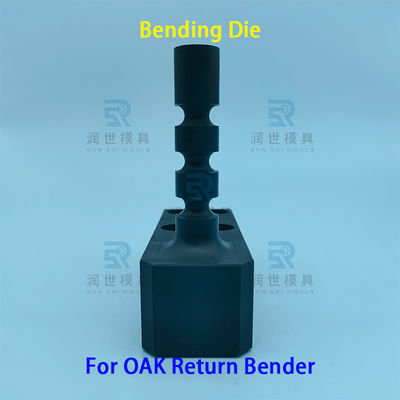

Product Images
Application Industry
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. We also supply ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.
Frequently Asked Questions
What is the name of this product?
OAK Bending Die Clamping Die Guided Die R-Tool Bender Die
Are you a trading company or manufacturer?
We are manufacturer.
What industry is the OAK Bending Die mainly used for?
It is an important bending tube part for CNC 3D tube bending machine and copper tube hairpin bender or return bender.
How to manufacture after the order is confirmed?
We need samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.
How long is your delivery time?
5-10 working days if in stock, or 10-25 working days if not in stock, depending on quantity.
What are your payment terms?
Payment ≤ $10,000 USD: 100% in advance. Payment > $10,000 USD: 50% T/T in advance, balance before shipment.
