JDM Return Bender Spare Parts Φ5mm Copper Tube Elbows Bending Die

JDM Return Bender Spare Parts Φ5mm Copper Tube Elbows Bending Die

Brand Name:	Small-U Tube Bending Die
Model Number:	Small-U Tube Bending Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Small-U Tube Bending Die Clamping Die Guided Die R-Tool Bender Die

Material:

DC53

Specification:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Bending Tube ID:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or DLC Coating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Copper Tube Elbows Bending Die

JDM Return Bender Spare Parts

5mm Tube Bender Die

Product Description

JDM Return Bender Spare Parts Φ5mm Copper Tube Elbows Bending Die

Product Specifications

Attribute	Value
Product Name	Small-U Tube Bending Die Clamping Die Guided Die R-Tool Bender Die
Material	DC53
Specification	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Bending Tube ID	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or DLC Coating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

Φ5 Copper Tube Elbows Bending Die For JDM Return Bender Spare Parts

Return Bending Die Description:

This tube bending machine die is made of die steel DC53, with a hardness of up to 60°-62°. The bending groove is processed with high precision and mirror polished. It is suitable for copper tube small-U bending machines of different manufacturers such as OMS, JDM, OAK, etc.

It is a must-have die for the production of copper and aluminum pipe elbows in the air conditioning and refrigeration industry. This die can be used to bend full, bright and scratch-free copper and aluminum pipe elbows. The outer diameters of copper and aluminum pipes that can be bent are: Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ8.9 Φ9 Φ9.52 Φ12.7 Φ12 Φ14.5 Φ15.88, etc. Any specifications can be customized.

Return Bender Bending Die Specifications:

Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

Product Gallery

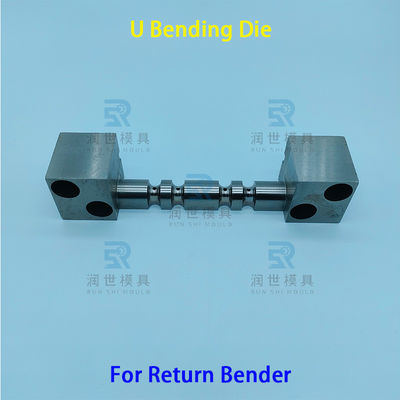

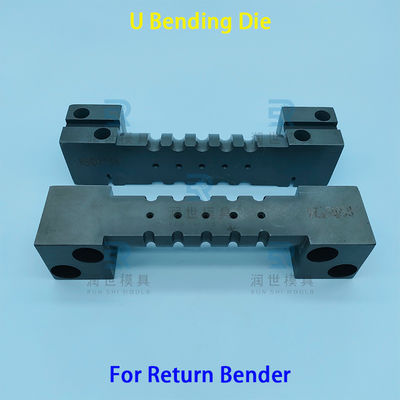

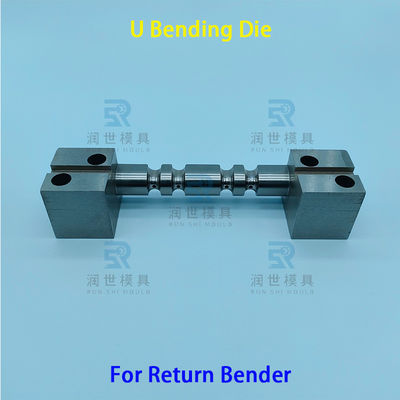

Close-up of Φ5mm copper tube bending die

Application Industry

Manufacturing Workshop:

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and so on.

Frequently Asked Questions

Q: What is the name of this product?

A: Small-U Tube Bending Die Clamping Die Guided Die R-Tool Bender Die

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Small-U Tube Bending Die mainly used for?

A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
