HAP40 Steel Pierce Punch and Pierce Die Insert In Cooling Coil Fin Die Tooling Pierce Die Insert
Product Specifications
| Attribute |
Value |
| Product Name |
Pierce Punch and Die Insert For 7mm 9.53mm Fin Die |
| Material |
HAP40 or ASP30 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 64°-66° |
| Accuracy |
0.001 |
| Surface Finish |
Ra 0.4 |
| Surface Treatment |
Burnishing |
| Service |
OEM or ODM |
| Highlights |
High speed fin press line for punching aluminum foil, copper foil, stainless steel, etc |
Product Description
The Pierce Die Insert is a precision-engineered tooling component designed for punching, piercing, and blanking operations in metal stamping and die-cutting applications. Manufactured from high-grade tool steels or carbide, it ensures durability, accuracy, and extended service life in high-volume production environments.
Available Sizes
5mm, 1/4", 7mm, 5/16", 8.9mm, 3/8", 12.7mm, 1/2", 14.5mm, 5/8", or customized sizes available.
Customization Services
We provide customized services for various high speed fin press lines, including:
- Fin die punches and pierce punches
- Pierce die inserts and fin die spare parts
- Slitting blades and edge trim components
- Rippled slitting blades and cut-off blade assemblies
- Fin die punching bushings and flanging components
- Lancer punches and louver punch sets
- All fin die accessories

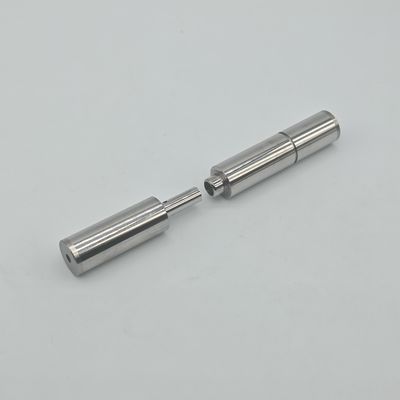

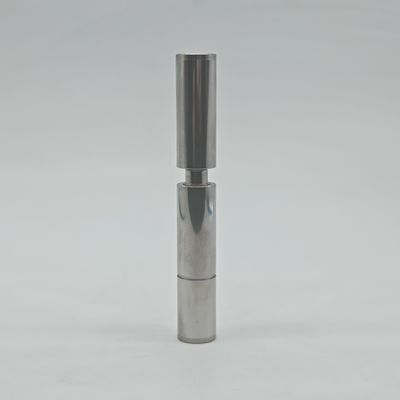

Product Images
Application Industry
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for:
- Air conditioning and heat exchanger manufacturing
- New energy and fluid control industries
- Medical devices and semiconductor applications
- Aerospace, photovoltaics, and lithium battery production
- Petrochemicals and high-precision automation equipment
- Electronic communication and automotive industries
Frequently Asked Questions
Q: What is the name of this product?
A: Fin die pierce Die Insert, Fin Die Accessories, Fin die spare parts
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the fin die pierce Die Insert mainly used for?
A: It is an important die accessory for the production of fins in the air conditioning and refrigeration industry, heat exchangers, surface coolers, evaporators, and condensers.
Q: How to manufacture after the order is confirmed?
A: We need samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.
Q: How long is your delivery time?
A: 5-10 working days for in-stock items, 25-30 working days for custom orders (depending on quantity).
Q: What are your payment terms?
A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T in advance, balance before shipment.
For additional questions, please feel free to contact us.
