Custom OD 7.94mm Hairpin Bender Guided Die for Long U Shaped Bending

Custom OD 7.94mm Hairpin Bender Guided Die for Long U Shaped Bending

Brand Name:	Guided Die
Model Number:	Guided Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Clamping Die Bending Die Guided Die R-Tool Bender Die

Material:

DC53

Specification:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Bending Tube ID:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or DLC Coating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Hairpin Bender Guided Die

U Shaped Bending Guided Die

Custom Hairpin Bender Guided Die

Product Description

Custom OD 7.94mm Hairpin Bender Guided Die for Long U Shaped Bending

Product Specifications

Attribute	Value
Product Name	Clamping Die Bending Die Guided Die R-Tool Bender Die
Material	DC53
Specification	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Bending Tube ID	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or DLC Coating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

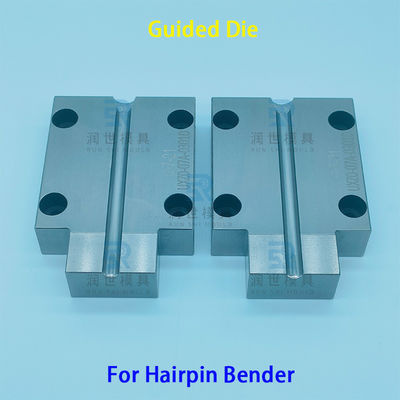

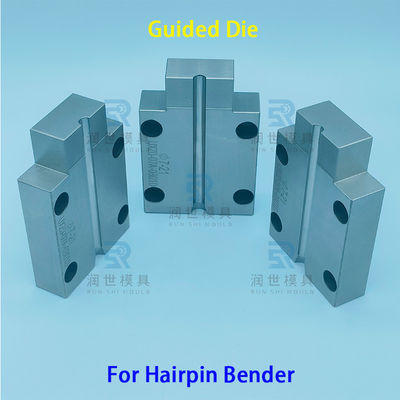

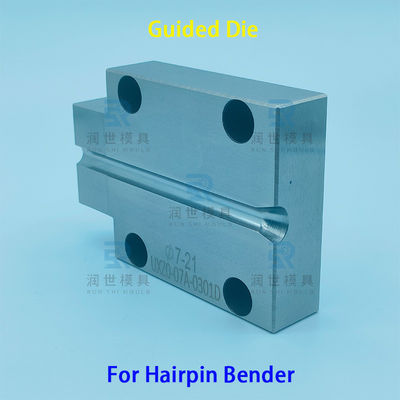

Custom Φ7.94 Hairpin Bender Guided Die for Perfect Long U-Shaped Bends

Crafted from DC53 die steel with a hardness of 60°-62°, this tube hairpin bender die delivers precision bending for copper and aluminum tubes. The finely polished and precisely machined bending groove ensures smooth, wrinkle-free bends that retain their bright finish.

Ideal for use in air conditioner evaporator and condenser production, it works with long-U tube benders from OMS, JDM, OAK, and other manufacturers. Custom tube diameters are available to fit your specific needs.

Available Sizes: Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

Product Gallery

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises.

We also provide ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and more.

Frequently Asked Questions

Q: What is the name of this product?

A: Guided Die Bending Die Clamping Die R-Tool Bender Die

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Guided Die mainly used for?

A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender.

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment≤10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
