Φ5 Copper Tube Bending Thumb Mandrel for JDM or OMS Hairpin Bender

Φ5 Copper Tube Bending Thumb Mandrel for JDM or OMS Hairpin Bender

Brand Name:	Thumb Mandrel
Model Number:	Thumb Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Thumb Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 Or GCr15

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Copper Tube Bending Thumb Mandrel

OMS Hairpin Bender Mandrel

JDM Hairpin Bender Mandrel

Product Description

Φ5 Copper Tube Bending Thumb Mandrel for JDM or OMS Hairpin Bender

Product Specifications

Attribute	Value
Product Name	Universal Mandrel One-Way Mandrel Thumb Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 or GCr15
Specification	Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ14.1, Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

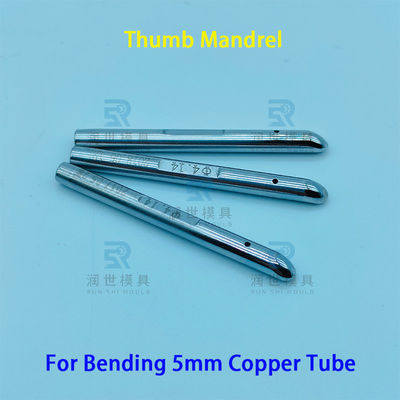

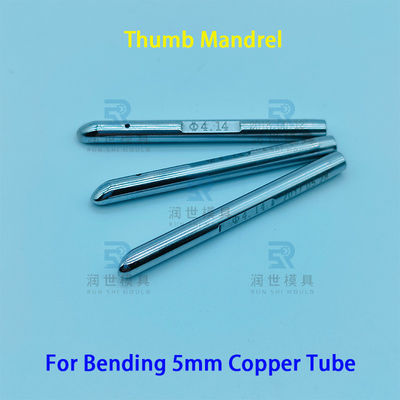

The Thumb Mandrel is a chrome-plated dull mandrel crafted from high-quality bearing steel (SUJ2 or GCr15). Designed for precision bending of copper and aluminum tubes, it produces smooth, wrinkle-free shapes with a bright finish. Available in various forms including elliptical, semicircular, and thumb-shaped designs, this mandrel is compatible with both small and large U-shaped tube benders.

Key Features:

Precision CNC lathe turning for exact specifications
Hard chrome plating for durability and smooth operation
Heat treated to HRC 60°-62° for extended service life
Surface finish of Ra 0.8 for optimal performance
100% quality inspected for reliability

Ideal for air conditioning system production in residential, automotive, and rail transport applications. Accommodates tube diameters including Φ4.76, Φ5, Φ6.35, and Φ7, with custom sizes available upon request.

Product Gallery

Application Industries

The Thumb Mandrel is essential for:

HVAC and refrigeration systems
Automotive heat exchangers
Rail transport cooling systems
Industrial tube bending operations

Manufacturing Expertise

Manufactured by Guangzhou Runshi Mold Co., Ltd., a specialist in precision machinery manufacturing. With extensive experience in equipment molds and vulnerable parts for air conditioning and heat exchanger production, we also serve industries including:

New energy
Fluid control
Medical devices
Semiconductor
Aerospace
Photovoltaics
Lithium batteries
Petrochemicals
High-precision automation equipment
Electronic communication
Automotive

Frequently Asked Questions

Q: What is the name of this product?

A: Universal Mandrel One-way Mandrel Thumb Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Thumb Mandrel mainly used for?

A: It is an important bending tube part for CNC 3D tube bending machines and copper tube hairpin benders or return benders.

Q: How to manufacture after the order is confirmed?

A: We need samples or drawings (either is sufficient). Our production engineers have over 10 years of experience in controlling tolerances and precision.

Q: How long is your delivery time?

A: Typically 5-10 working days for in-stock items, or 10-25 working days for custom orders (depending on quantity).

Q: What are your payment terms?

A: For orders ≤$10,000 USD: 100% in advance. For orders >$10,000 USD: 50% T/T in advance, balance before shipment.
