Φ5 Versatile Tube Hairpin Bender Spare Parts Guided Die for Air Conditioner Evaporator

Φ5 Versatile Tube Hairpin Bender Spare Parts Guided Die for Air Conditioner Evaporator

Brand Name:	Guided Die
Model Number:	Guided Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Clamping Die Bending Die Guided Die R-Tool Bender Die

Material:

DC53

Specification:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Bending Tube ID:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or DLC Coating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Hairpin Bender Spare Parts Guided Die

Air Conditioner Bender Spare Parts

Tube Hairpin Bender Guided Die

Product Description

Φ5 Versatile Tube Hairpin Bender Spare Parts Guided Die for Air Conditioner Evaporator

Product Specifications

Attribute	Value
Product Name	Clamping Die Bending Die Guided Die R-Tool Bender Die
Material	DC53
Specification	Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Bending Tube ID	Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or DLC Coating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

The Φ5 Versatile Hairpin Bender Guided Die is engineered for precision bending of air conditioner evaporator tubes. Manufactured from high-grade DC53 die steel with a hardness of 60°-62° HRC, this bending die delivers exceptional durability and performance.

Key features include:

Precision-machined bending groove for flawless, wrinkle-free bends
Mirror-polished surface finish (Ra 0.2) for smooth operation
Compatible with long-U tube bending machines
Widely used in air conditioning evaporator and condenser production
Interchangeable with equipment from OMS, JDM, and OAK
Available in multiple tube sizes from Φ5 to Φ15.88

Product Gallery

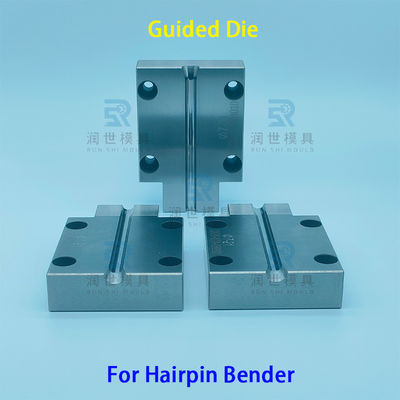

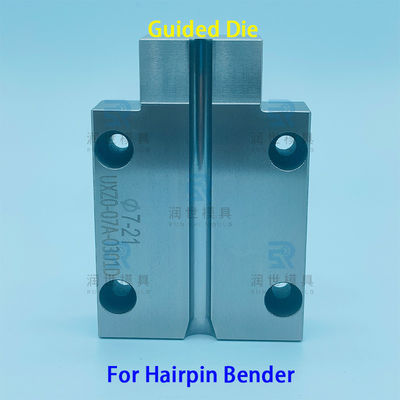

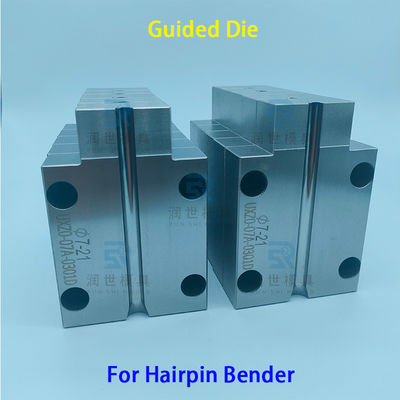

Φ5 Hairpin Bender Guided Die close-up view

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing high-quality equipment molds and components for:

Air conditioning and heat exchanger manufacturing
New energy, fluid control, and medical device industries
Semiconductor, aerospace, and photovoltaics
Lithium batteries, petrochemicals, and automation equipment
Electronic communication and automotive sectors

Frequently Asked Questions

Q: What is the name of this product?

A: Guided Die Bending Die Clamping Die R-Tool Bender Die

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Guided Die mainly used for?

A: It is an important bending tube component for CNC 3D tube bending machines and copper tube hairpin benders or return benders.

Q: How do you manufacture after the order is confirmed?

A: We require samples or drawings (either is sufficient). Our production engineers have over 10 years of experience in controlling tolerances and precision.

Q: What is your delivery time?

A: Typically 5-10 working days for in-stock items, or 10-25 working days for custom orders, depending on quantity.

Q: What are your payment terms?

A: For orders ≤$10,000 USD: 100% in advance. For orders >$10,000 USD: 50% T/T in advance, balance before shipment.
