5mm Pierce Punch And Die For Fin Die High Speed For Punching Aluminum Copper Foil

5mm Pierce Punch And Die For Fin Die High Speed For Punching Aluminum Copper Foil

Brand Name:	Φ5 Pierce Punch and die For Fin Die
Model Number:	Pierce Punch 001
MOQ:	10 PCS
Price:	40.00-55.00USD
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Pierce Punch And Die For Φ5 7mm 9.53mm Fin Die

Material:

HAP40 Or ASP30

Specification:

1/4",3/8",1/2",5/8",3/4",7/8",1" Etc

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 64°-66°

Accuracy:

0.001

Quality:

100% Inspection

Surface Finish:

Ra 0.4

Surface Treatment:

Burnishing

Service:

OEM Or ODM

Application:

High Speed Fin Press Line For Punching Aluminum Foil, Copper Foil, Stainless Steel, Etc

High Light:

High Speed Fin Press Line For Punching Aluminum Foil, Copper Foil, Stainless Steel, Etc

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

5mm Pierce Punch And Die

High Speed Pierce Punch And Die

Product Description

5mm Pierce Punch And Die For Fin Die High Speed For Punching Aluminum Copper Foil

Product Specifications

Attribute	Value
Product Name	Pierce Punch and Die For Φ5 7mm 9.53mm Fin Die
Material	HAP40 or ASP30
Specification	1/4",3/8",1/2",5/8",3/4",7/8",1" etc
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 64°-66°
Accuracy	0.001
Quality	100% Inspection
Surface Finish	Ra 0.4
Surface Treatment	Burnishing
Service	OEM or ODM
Application	High speed fin press line for punching aluminum foil, copper foil, stainless steel, etc

Product Description

Our high-speed fin die pierce punch & die is manufactured from premium powder high-speed steel (HAP40 or ASP30) with precision grinding, ensuring extended service life and exceptional manufacturing accuracy. Designed specifically for punching aluminum foil, copper foil, and stainless steel in fin production applications.

This essential fin die component serves critical roles in:

Air conditioning and refrigeration industry fin production
Heat exchanger manufacturing
Surface cooler, evaporator, and condenser applications

We offer comprehensive customization services for various high-speed fin press lines, including:

Fin die punches and pierce punch/die sets
Slitting blades and edge trim components
Rippled and cross slitting blades
Cut-off blade assemblies
Punching bushings and flanging components
Louver punch sets and all fin die accessories

Available Specifications

5mm (1/4"), 7mm (5/16"), 8.9mm (3/8"), 12.7mm (1/2"), 14.5mm (5/8"), and custom sizes available.

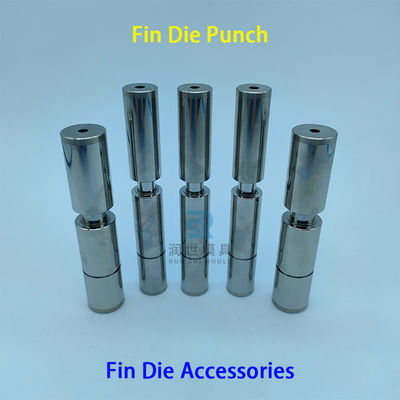

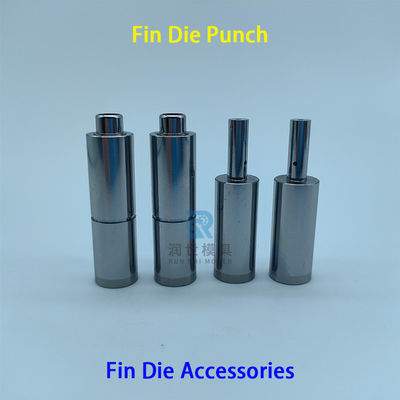

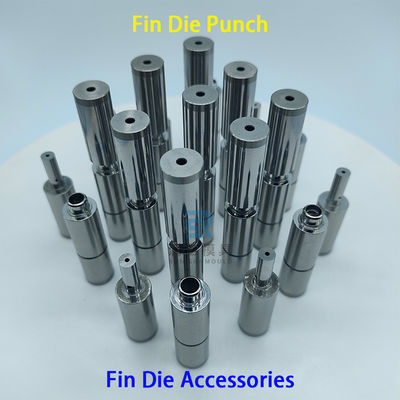

Product Images

Application Industry

Manufacturing Capabilities

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing:

Equipment molds and vulnerable parts for HVAC manufacturing
Cutting tools and precision components
Ceramic and tungsten steel parts for diverse industries including new energy, medical devices, aerospace, and automotive

Frequently Asked Questions

Q: What is the name of this product?

A: Fin die pierce punch & die, Fin Die Accessories, Fin die spare parts

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the fin die pierce punch & die mainly used for?

A: It is an important die accessories for the production of fins in the air conditioning and refrigeration industry, heat exchangers, surface cooler, evaporators, and condensers.

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 25-30 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
