SUJ2 GCr15 Ring Inserted Mandrels & Accessories for Heat Exchanger Manufacturing

SUJ2 GCr15 Ring Inserted Mandrels & Accessories for Heat Exchanger Manufacturing

Brand Name:	Ring Inserted Mandrel
Model Number:	Ring Inserted Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Ring Inserted Mandrel,Ring Inserted Rod,Ring Elbow Clamp,Elbow Conveyor Track,Vibration Disc

Material:

SUJ2 GCr15

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Specification:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

Ring Inserted Machine Fully Automatic Bending Machine Tube Bending Ring Integrated Machine

Usage:

The Solder Ring Is Inserted Into The Copper Tube Elbow Or Aluminum Tube Elbow To Facilitate The Subsequent Welding Of The Elbow On The Heat Exchanger

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

GCr15 Ring Inserted Mandrel

Ring Inserted Machine Accessories

Product Description

SUJ2 GCr15 Ring Inserted Mandrels & Accessories for Heat Exchanger Manufacturing

Product Specifications

Attribute	Value
Product Name	Ring Inserted Mandrel, Ring Inserted Rod, Ring Elbow Clamp, Elbow Conveyor Track, Vibration Disc
Material	SUJ2 GCr15
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Specification	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	Ring Inserted Machine Fully Automatic Bending Machine Tube bending ring integrated machine
Usage	The solder ring is inserted into the copper tube elbow or aluminum tube elbow to facilitate the subsequent welding of the elbow on the heat exchanger

Product Description

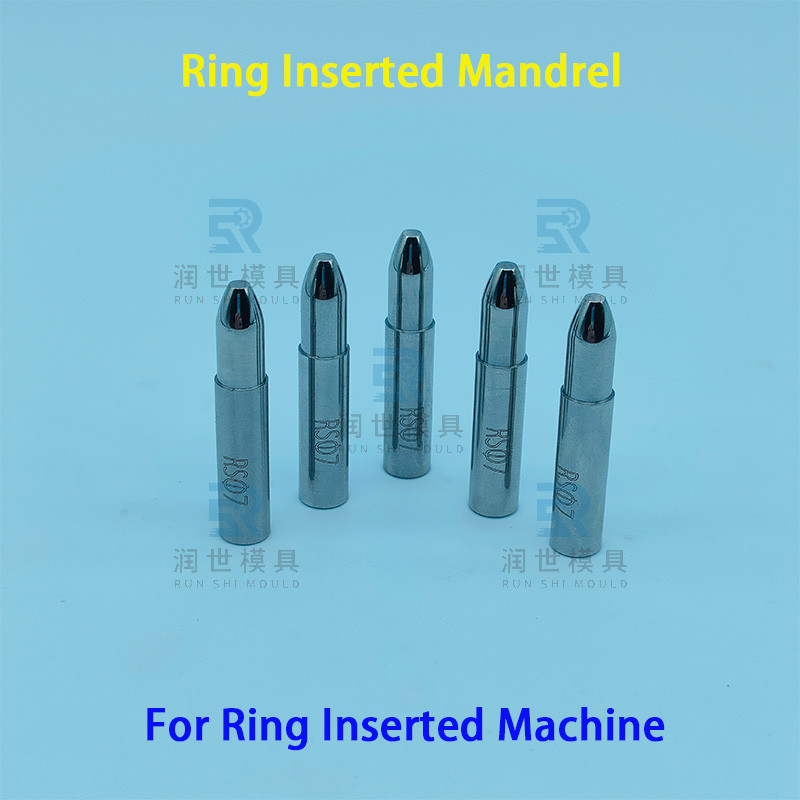

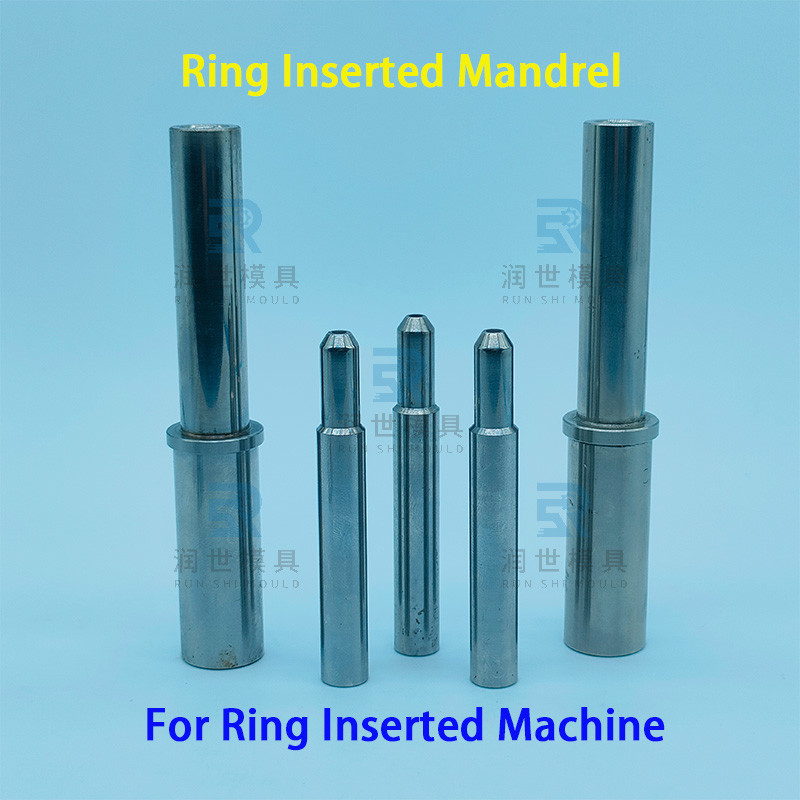

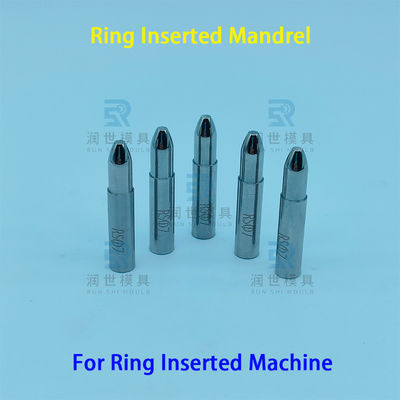

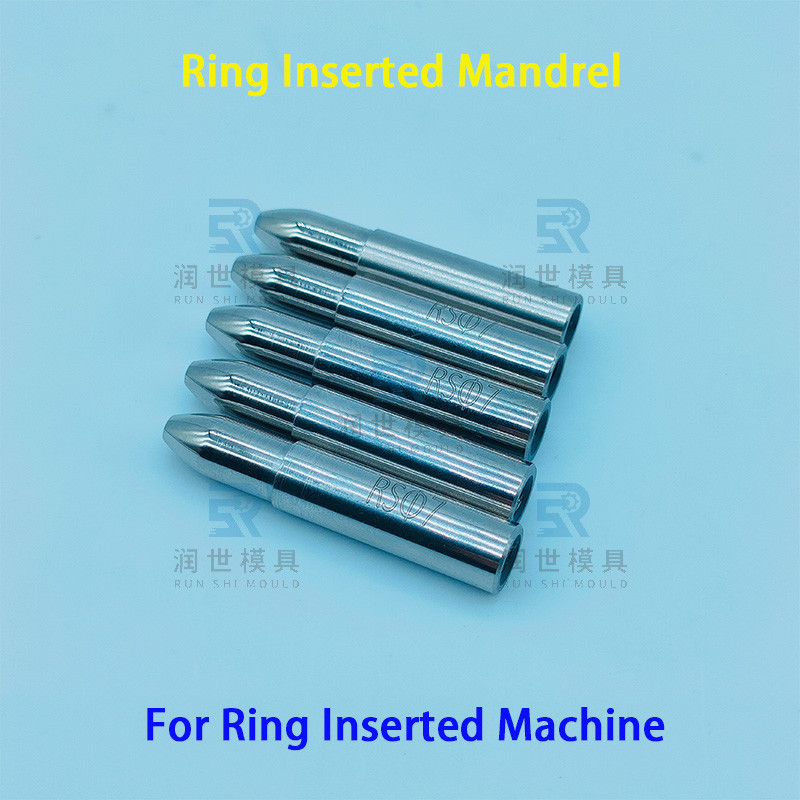

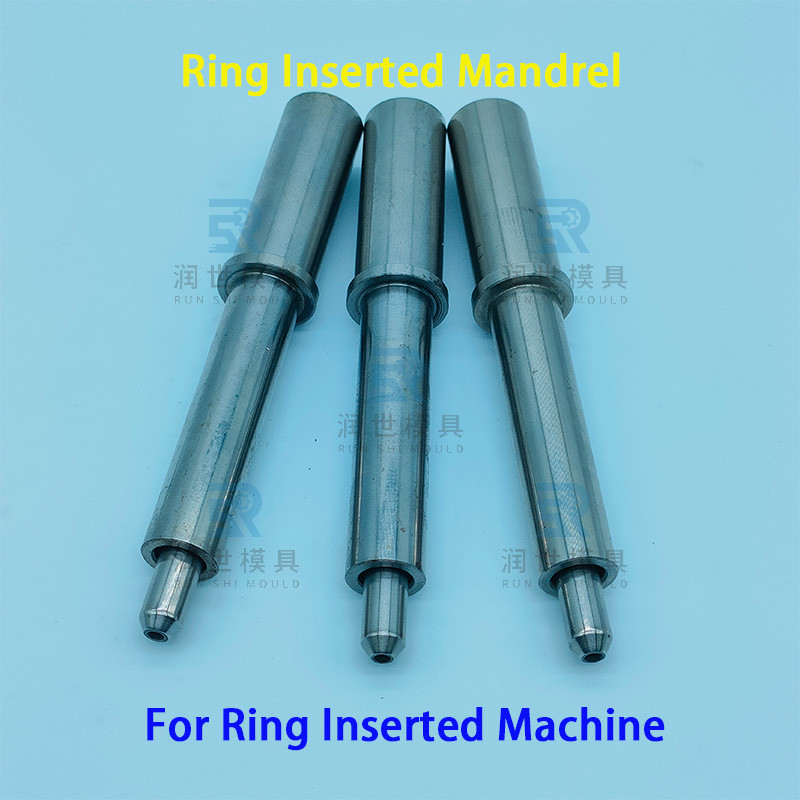

Ring Inserted Mandrels & Accessories for Heat Exchanger Manufacturing: The ring inserted machine, equipped with a mandrel, simplifies the insertion of solder rings into copper or aluminum elbows during heat exchanger production. Our company offers high-quality mandrels and complementary accessories, such as elbow clamps, conveyor tracks, and vibration discs, to support the seamless operation of various brands of ring inserted machines, ensuring increased productivity.

Available Specifications

Φ4.14
Φ6.0
Φ6.22
Φ6.85
Φ8.55
Φ8.8
Φ9.6
Φ10.6
Φ12.9
Φ14.1
Φ15.5
Φ16.5
Φ18.3

Product Gallery

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and so on.

Frequently Asked Questions

Q: What is the name of this product?

A: Ring Inserted Mandrel, Ring Inserted Rod, Ring Elbow Clamp, Elbow Conveyor Track, Vibration Disc.

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the ring inserted mandrel mainly used for?

A: It is an important spare parts for ring inserted machine and the solder ring is inserted into the copper tube elbow or aluminum tube elbow to facilitate the subsequent welding of the elbow on the heat exchanger.

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us
