Precision Ring Inserted Mandrel for Heat Exchanger Production

Precision Ring Inserted Mandrel for Heat Exchanger Production

Brand Name:	Ring Inserted Mandrel
Model Number:	Ring Inserted Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Ring Inserted Mandrel,Ring Inserted Rod,Ring Elbow Clamp,Elbow Conveyor Track,Vibration Disc

Material:

SUJ2 GCr15

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Specification:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

Ring Inserted Machine Fully Automatic Bending Machine Tube Bending Ring Integrated Machine

Usage:

The Solder Ring Is Inserted Into The Copper Tube Elbow Or Aluminum Tube Elbow To Facilitate The Subsequent Welding Of The Elbow On The Heat Exchanger

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Precision Ring Inserted Mandrel

Ring Inserted Mandrel for Heat Exchanger

Product Description

Precision Ring Inserted Mandrel for Heat Exchanger Production

Product Specifications

Attribute	Value
Product Name	Ring Inserted Mandrel, Ring Inserted Rod, Ring Elbow Clamp, Elbow Conveyor Track, Vibration Disc
Material	SUJ2 GCr15
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Specification	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	Ring Inserted Machine Fully Automatic Bending Machine Tube bending ring integrated machine
Usage	The solder ring is inserted into the copper tube elbow or aluminum tube elbow to facilitate the subsequent welding of the elbow on the heat exchanger

Product Description

The Ring Inserted Mandrel is an essential component in air conditioning heat exchanger manufacturing. Mounted on ring inserted machines, it enables precise placement of solder rings into copper or aluminum tube elbows, optimizing the welding process.

Our comprehensive range includes mandrels, elbow clamps, conveyor tracks, and vibration discs, compatible with various ring inserted machine brands to ensure peak equipment performance.

Available Sizes

Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ9.6, Φ10.6, Φ12.9, Φ14.1, Φ15.5, Φ16.5, Φ18.3

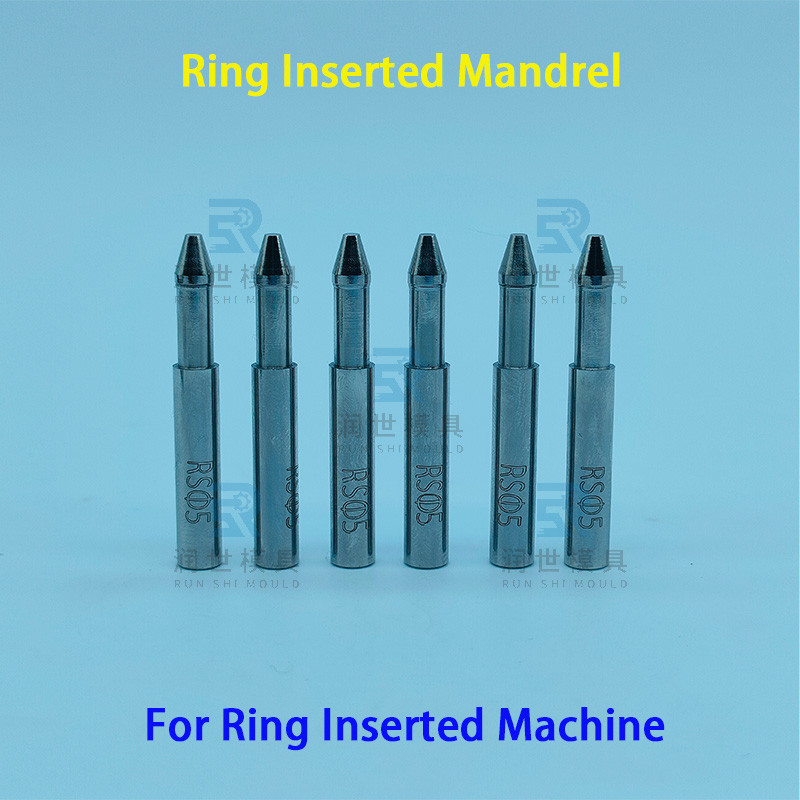

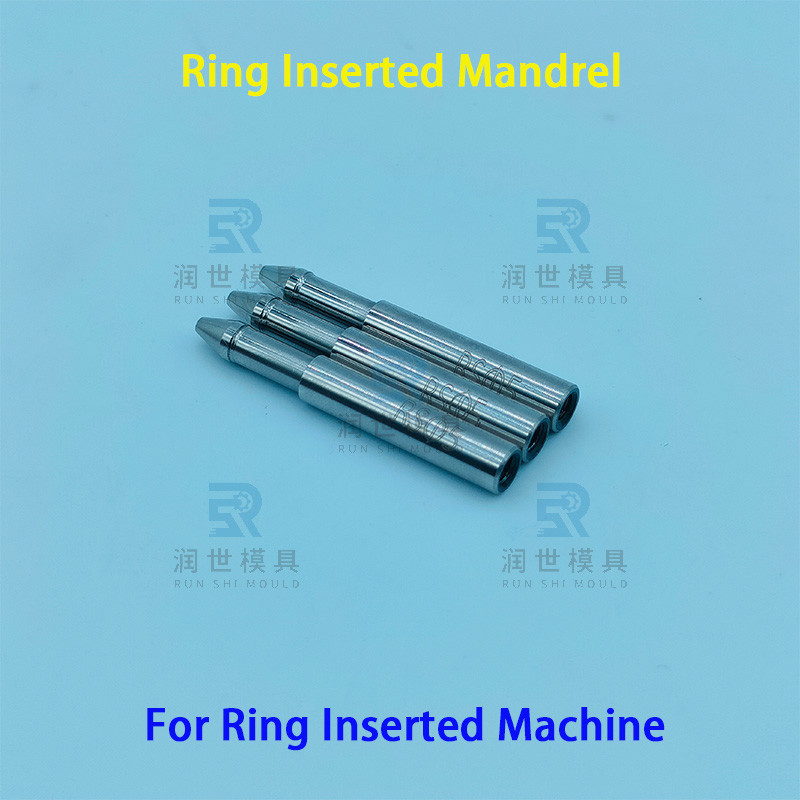

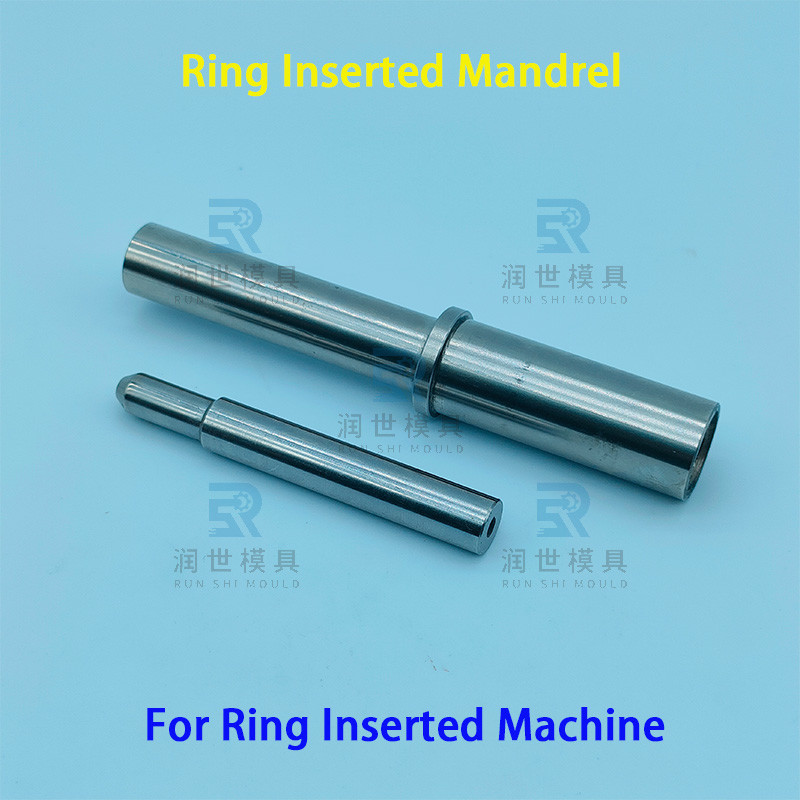

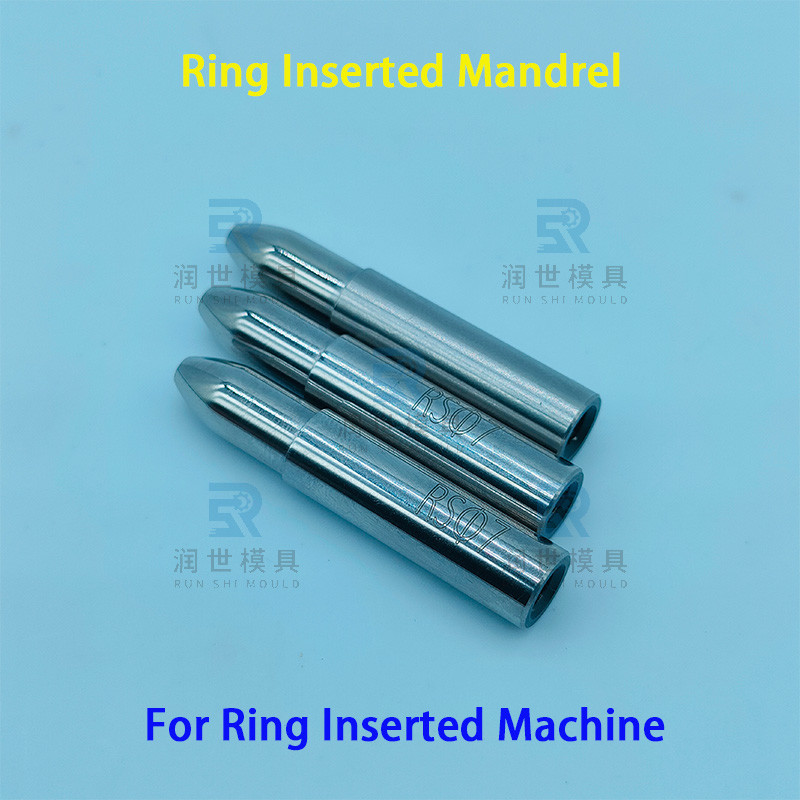

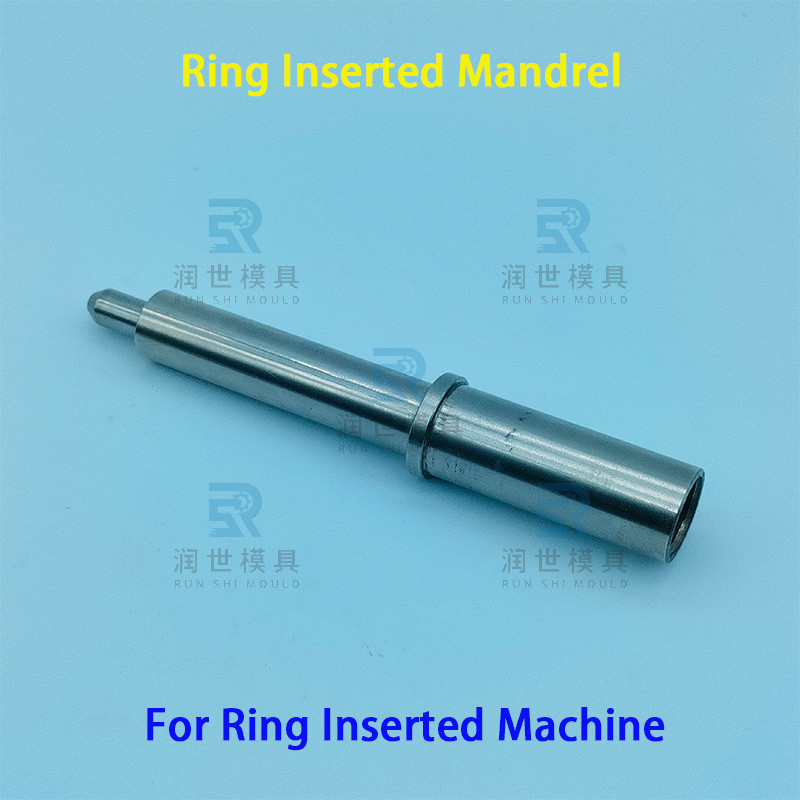

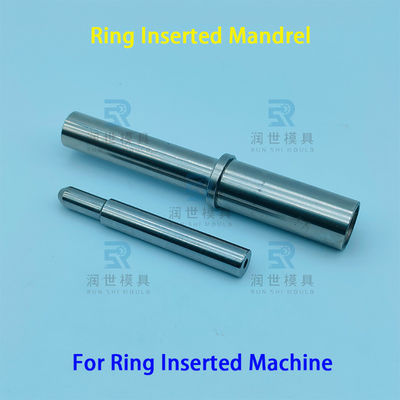

Product Gallery

Application Industry

Manufacturer Profile

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger production. Our expertise extends to industries including new energy, fluid control, medical devices, semiconductors, aerospace, photovoltaics, lithium batteries, petrochemicals, automation equipment, electronic communication, and automotive.

Frequently Asked Questions

What is the name of this product?

Ring Inserted Mandrel, Ring Inserted Rod, Ring Elbow Clamp, Elbow Conveyor Track, Vibration Disc.

Are you a trading company or manufacturer?

We are the manufacturer.

What industry is the ring inserted mandrel mainly used for?

It is an important spare part for ring inserted machines, facilitating the insertion of solder rings into copper or aluminum tube elbows for subsequent welding in heat exchanger production.

How do you manufacture after the order is confirmed?

We require samples or drawings. Our production engineers, with over 10 years of experience, expertly control tolerances and precision.

What is your delivery time?

5-10 working days for in-stock items; 10-25 working days for custom orders, depending on quantity.

What are your payment terms?

Orders ≤ $10,000: 100% advance payment. Orders > $10,000: 50% advance, balance before shipment.

For additional inquiries, please contact our team.
