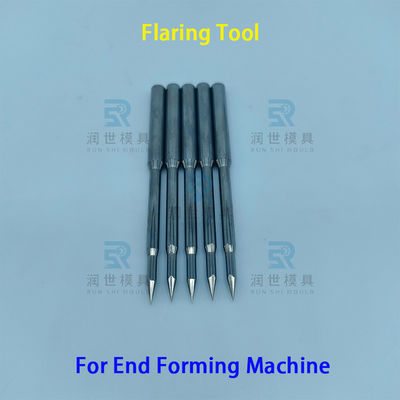

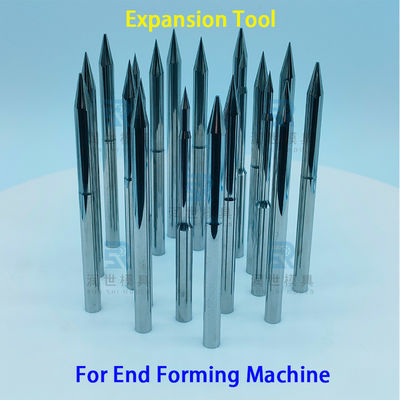

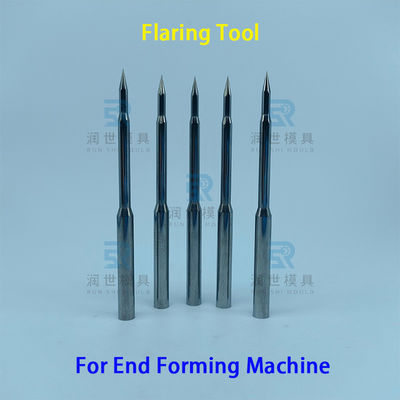

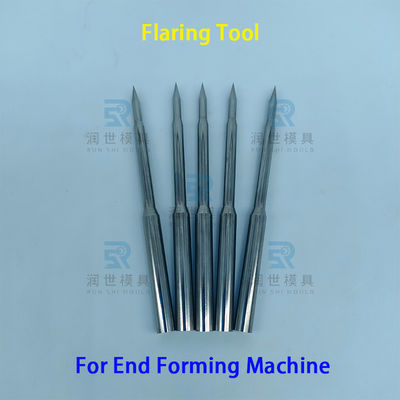

Carbide Forming Tool For OMS Or JDM Tube End Forming Machine

Carbide Forming Tool For OMS Or JDM Tube End Forming Machine

Brand Name:	Forming Die
Model Number:	Forming Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Expansion Needle Flaring Tool Expanding Tool Flare Tool Expansion Die Flaring Die Shrinking Tool Shrinking Die Shrinkage Tool Pier Tube Die Pier Tube Tool Tube End Forming Die

Material:

YG8

Specification:

Φ3,Φ4,Φ4,76,Φ5,Φ6,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88

Processing:

Precision Grinder Fine Grinding

Hardness:

HRA 89°-92°

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or Coating

Service:

OEM Or ODM

Application:

CNC Tube End Forming Machine,End Forming Machine With Spinning Mode,End Forming Machine With Flinging Mode,CNC Tube Integrated Machine(All In One),CNC Tube Integrated End Forming Machine

Usage:

Expanding,Shrinking Or Pier Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Tube End Forming Carbide Forming Tool

JDM Tube End Forming Tool

Product Description

Carbide Forming Tool For OMS Or JDM Tube End Forming Machine

Product Specifications

Attribute	Value
Product Name	Expansion Needle Flaring Tool Expanding Tool Flare Tool Expansion Die Flaring Die shrinking Tool Shrinking Die Shrinkage Tool Pier Tube Die Pier Tube Tool Tube End Forming Die
Material	YG8
Specification	Φ3,Φ4,Φ4,76,Φ5,Φ6,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88
Processing	Precision grinder fine grinding
Hardness	HRA 89°-92°
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or Coating
Service	OEM or ODM
Application	CNC Tube End Forming Machine, End forming machine with spinning mode, End forming machine with flinging mode, CNC Tube Integrated Machine(All In One), CNC Tube Integrated end forming Machine
Usage	Expanding, Shrinking or Pier Copper, Aluminum and Steel Tube

Product Description

Reliable Carbide Forming Die for Tube End Forming: Crafted from premium Kg7 Carbide material, this expansion tube head boasts exceptional hardness and wear resistance for long-term reliability. Perfect for both flinging and spinning expansion processes, it works with copper, aluminum, stainless steel, and iron tubes. Compatible with CNC Tube Integrated end forming machines, it is the top choice for industries such as air conditioning, automotive, aerospace, and water heaters. Custom specifications available.

Available Specifications

Φ3

Φ4

Φ4.76

Φ5

Φ6

Φ6.35

Φ7

Φ7.94

Φ8.9

Φ9.53

Φ12

Φ12.7

Φ14.5

Φ15.88

Product Gallery

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and so on.

Frequently Asked Questions

Q: What is the name of this product?

A: Forming die Expansion needle Flaring Tool Expanding Tool Flare Tool Expansion Die Flaring Die shrinking Tool Shrinking Die Shrinkage Tool Pier Tube Die Pier Tube Tool Tube End Forming Die

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the forming die mainly used for?

A: It is an important end forming die for CNC Tube End Forming Machine, End forming machine with spinning mode, End forming machine with flinging mode, CNC Tube Integrated Machine(All In One), CNC Tube Integrated end forming Machine, tube pier head machine.

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us
