OEM CNC Hole Punching Machine Parts 3 Jaw Chuck For Tube Cutting Bending End Forming
Product Specifications
| Attribute |
Value |
| Product Name |
3-Jaw Chuck Punching Bullet Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets |
| Material |
SKD11 or DC53 |
| Process Tube Dia. |
Φ4.76-Φ110 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 60°-62° |
| Punching Hole Dia. |
Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22 |
| Quality |
100% Inspection |
| Surface Finish |
Ra 0.4 |
| Service |
OEM or ODM |
| Application |
CNC 3D tube Bender CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine |
| Usage |
Clamping Copper Aluminum and Stainless Steel Tube |
Durable 3-Jaw Chuck for Tube Fabrication
This precision-engineered 3-jaw chuck is designed for copper tube CNC bending and punching machines, providing reliable support in tube bending, punching, and end forming operations. Manufactured from high-quality DC53 mold steel, it withstands the demands of mass production in air conditioning pipe manufacturing. Fully compatible with CNC tube machines from various brands and customizable to specific production needs.
Technical Specifications
| Process Tube Dia. |
Punching Hole Dia. |
| Φ9.53mm (3/8inch) |
Φ5mm |
| Φ12.7mm (1/2inch) |
Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) |
Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ25.4mm (1inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ28.58mm (1-1/8inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ31.75mm (1-1/4inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ34.94mm (1-3/8inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ41.28mm (1-5/8inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ53.98mm (2-1/8inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ60.32mm (2-3/8inch) |
Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Other Specifications |
Custom options available |

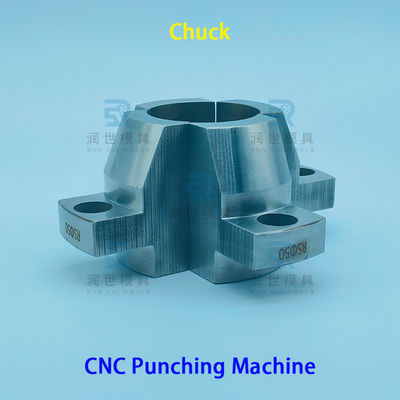

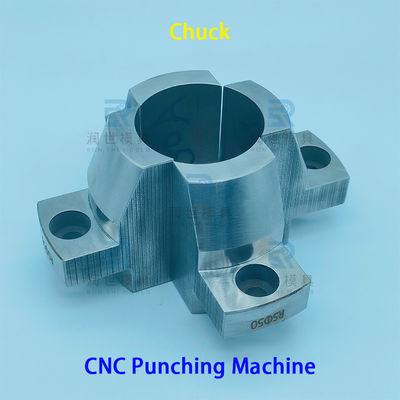

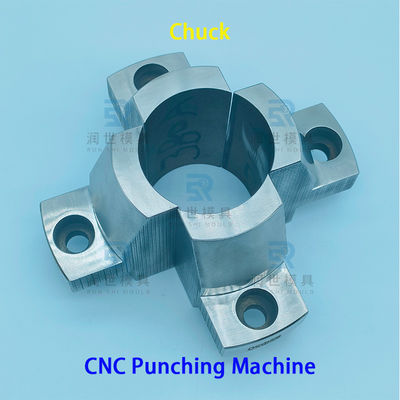

Product Images
Application Industry
This 3-jaw chuck is essential equipment for integrated tube cutting, bending and punching machines in the air-conditioning refrigeration heat exchanger industry.
Manufacturing Capabilities
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. Our expertise extends to industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive sectors.
Frequently Asked Questions
Q: What is the name of this product?
A: 3-jaw chuck punching Bullet head Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullets Punch Hole Head Punch Hole Bullets
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the 3-jaw chuck mainly used for?
A: It is an important component for Integrated Tube Cutting Bending And Punching Machine in the air-conditioning refrigeration heat exchanger industry.
Q: How to manufacture after the order is confirmed?
A: We require samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.
Q: How long is your delivery time?
A: 10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).
Q: What is your terms of payment?
A: Payment ≤ $10,000 USD: 100% in advance. Payment > $10,000 USD: 50% T/T in advance, balance before shipment.
For additional questions, please contact our technical team.
