Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically

10 PCS
MOQ
Negotiate Price
Price
Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Head Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

Copper Tube Punching Head

,

Punching Head for Air Conditioning Pipe
Basic Infomation
Place of Origin: china
Brand Name: Punching Head
Certification: TS16949
Model Number: Punching Head 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically
Product Specifications
Attribute Value
Product Name Punching Head, Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet, Punch Hole Head, Punch Hole Bullets
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine
Usage Punching Hole Copper Aluminum and Stainless Steel Tube
Product Description

This high-performance punching head is engineered from SKH51 high-speed steel, combining exceptional hardness and wear resistance for extended service life in demanding production environments. Specifically designed for air conditioning pipe fitting production, it excels in creating flute and bypass fittings for condenser and evaporator systems from copper, aluminum, and stainless steel.

Key Features:
  • Compatible with all-in-one CNC punching machines from leading manufacturers
  • Process tube diameter range: Φ9.52mm-Φ110mm
  • Punching hole diameter options: Φ5mm-Φ22.22mm
  • Customizable punch sizes available for diverse production requirements
  • Precision CNC machining ensures consistent performance
  • Heat treated to HRC 60°-62° for maximum durability
Standard Specifications:
Process Tube Diameter Available Punching Hole Diameters
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ31.75mm (1-1/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Custom specifications available upon request
Product Images

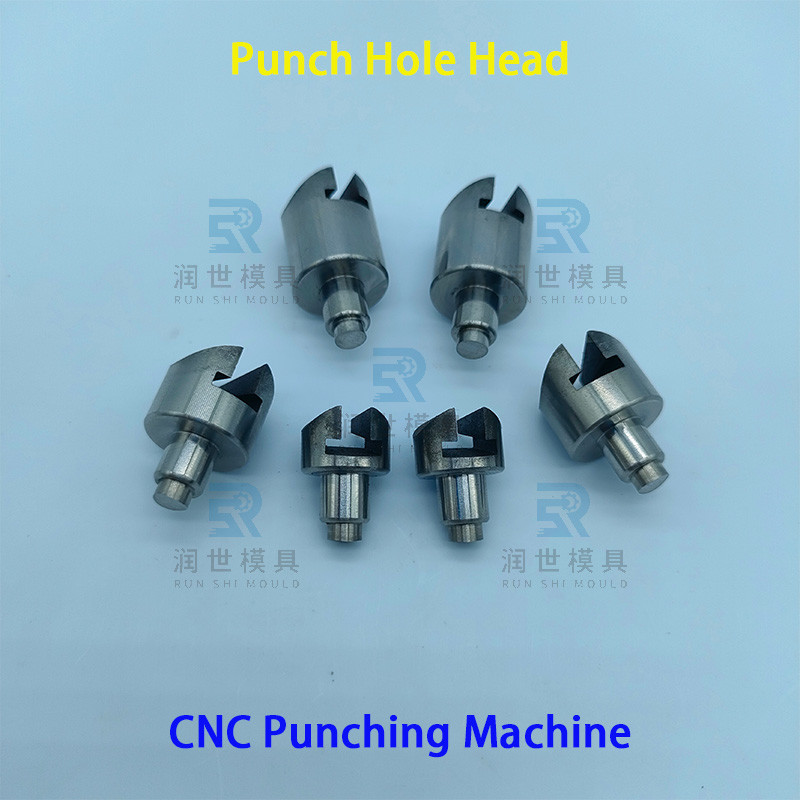

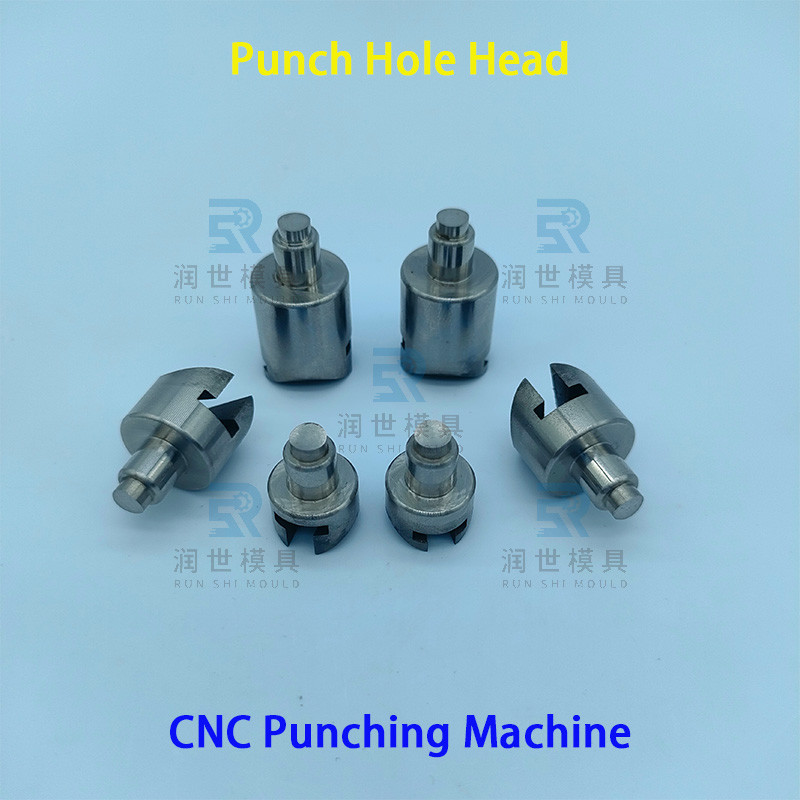

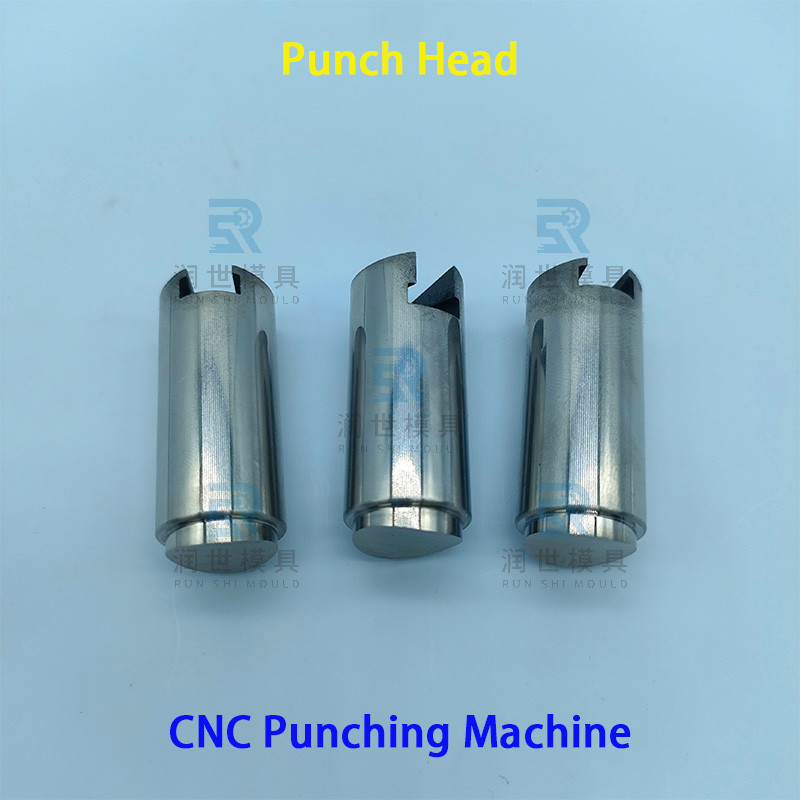

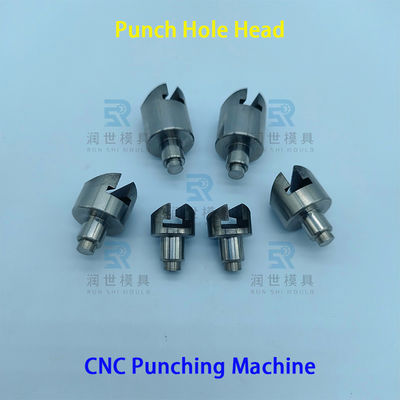

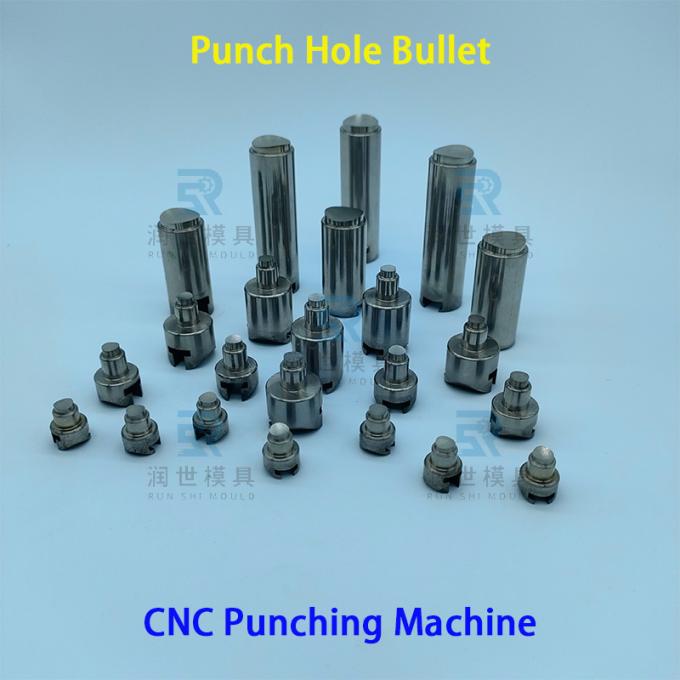

Close-up view of Φ25.4mm punching head showing precision machining Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 1 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 2 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 3 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 4 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 5 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 6 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 7 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 8 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 9 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 10 Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 11
Application Industry
Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 12

This punching head is essential equipment for the air-conditioning refrigeration heat exchanger industry, specifically designed for integrated tube cutting, bending, and punching machines.

Manufacturing Information

Manufactured by Guangzhou Runshi Mold Co., Ltd., a specialist in precision machinery manufacturing with extensive experience in providing equipment molds and components for:

  • Air conditioning and heat exchanger manufacturing
  • New energy, fluid control, and medical device industries
  • Semiconductor, aerospace, and photovoltaics
  • Lithium batteries, petrochemicals, and high-precision automation
  • Electronic communication and automotive applications
Φ25.4mm Punching Head for Making Holes on Copper Tube Automatically 13
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Head, Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, Punch Hole Bullets
Q: Are you a trading company or manufacturer?
A: We are the manufacturer.
Q: What industry is the punching head mainly used for?
A: It is an essential component for Integrated Tube Cutting Bending And Punching Machines in the air-conditioning refrigeration heat exchanger industry.
Q: How do you manufacture after the order is confirmed?
A: We require samples or drawings (either is sufficient). Our production engineers with over 10 years of experience precisely control tolerances and machining accuracy.
Q: What is your delivery time?
A: Standard delivery is 10-15 working days for in-stock items, or 20-25 working days for custom orders, depending on quantity.
Q: What are your payment terms?
A: For orders ≤$10,000 USD: 100% in advance. For orders >$10,000 USD: 50% T/T in advance, balance before shipment.

For additional inquiries, please contact our sales team.
