Home /Products/CNC Hole Punching Machine Parts/High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings

High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings

10 PCS
MOQ
Negotiate Price
Price
High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Machine Punching Hole Tool Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Highlight:

AC Pipe Production Punching Tool

,

High Precision Punching Tool

,

12.7mm Pipe Punching Tool
Basic Infomation
Place of Origin: china
Brand Name: Punching Machine Punching Tool
Certification: TS16949
Model Number: Punching Machine Punching Tools 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings
Product Specifications
Attribute Value
Product Name Punching Machine Punching Hole Tool
Material SKD11, DC53 or HSS SKH51
Process Tube Diameter Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Diameter Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine, Integrated tube cutting bending and Punching machine
Usage Punching Hole Copper Aluminum and Stainless Steel Tube
Product Description

Precision punching tool engineered for efficient mass production of air-conditioning pipe fittings. Includes punch, punch pusher, clamp, clamping die, push rod, and hollow tube components.

Key Features:

  • Constructed from high-speed steel SKH51 for exceptional hardness and wear resistance
  • Extended service life through superior material quality
  • Processes tube diameters from Φ9.52mm to Φ110mm
  • Creates punching holes from Φ5mm to Φ22.22mm
  • Fully compatible with automated machines from OMS, JDM, and other manufacturers
  • Custom configurations available to meet specific production requirements
Compatible Tube and Hole Diameters
Process Tube Diameter Available Punching Hole Diameters
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ111.12mm (4-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Other Specifications Custom options available
Product Images

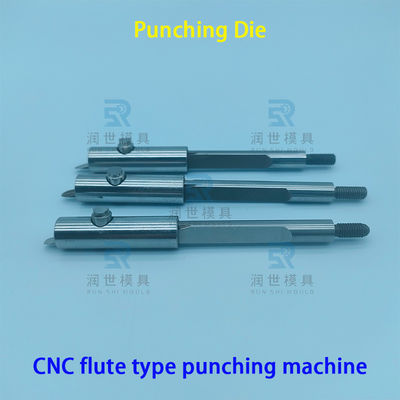

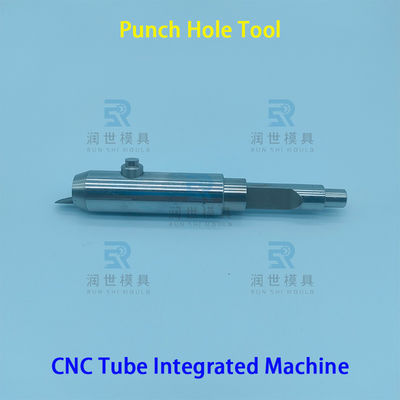

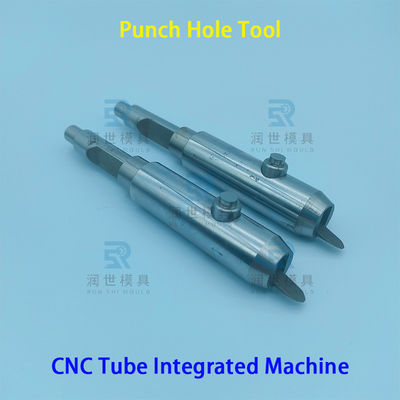

High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 0 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 1 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 2 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 3 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 4 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 5 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 6 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 7 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 8 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 9 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 10 High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 11
Application Industry
High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 12
Manufacturing Capabilities

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing for the air conditioning and heat exchanger industries. Our expertise extends to providing equipment molds, vulnerable parts, and cutting tools for various sectors including:

  • New energy systems
  • Fluid control applications
  • Medical device manufacturing
  • Semiconductor production
  • Aerospace components
  • Photovoltaic systems
  • Lithium battery production
  • Petrochemical equipment
  • High-precision automation
  • Electronic communication
  • Automotive manufacturing
High Precision Φ12.7mm Punching Tool For Mass Production Of AC Pipe Fittings 13
Frequently Asked Questions
What is the name of this product?

Punching Machine Punching Tools, also known as Punch Hole Tooling, Punch Hole Tool Bullets, or Punch Hole Head.

Are you a trading company or manufacturer?

We are the manufacturer with direct production capabilities.

What industry is this tool mainly used for?

Primarily for Integrated Tube Cutting Bending And Punching Machines in the air-conditioning refrigeration heat exchanger industry.

How do you manufacture after order confirmation?

We require samples or drawings. Our production engineers with 10+ years experience precisely control tolerances and machining specifications.

What is your delivery time?

10-15 working days for in-stock items, 20-25 working days for custom production (quantity dependent).

What are your payment terms?

Orders ≤$10,000: 100% advance payment. Orders >$10,000: 50% deposit, balance before shipment.
