CNC flute type punching machine Spare Parts For Copper Tube Punching Hole

CNC flute type punching machine Spare Parts For Copper Tube Punching Hole

Brand Name:	punching machine Spare Parts
Model Number:	punching machine Spare Parts 01
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Punching Machine Spare Parts Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets

Material:

SKD11,DC53 Or HSS SKH51

Process Tube Dia.:

Φ9.52-Φ110

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Punching Hole Dia.:

Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22

Quality:

100% Inspection

Surface Finish:

Ra 0.4

Service:

OEM Or ODM

Application:

CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine

Usage:

Punching Hole Copper Aluminum And Stainless Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Product Description

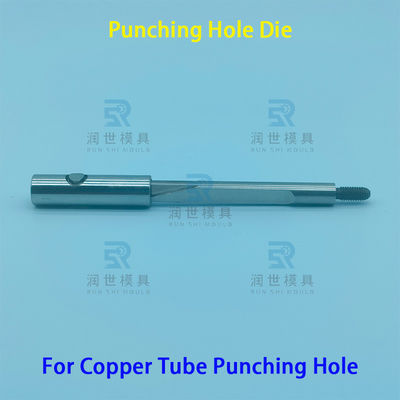

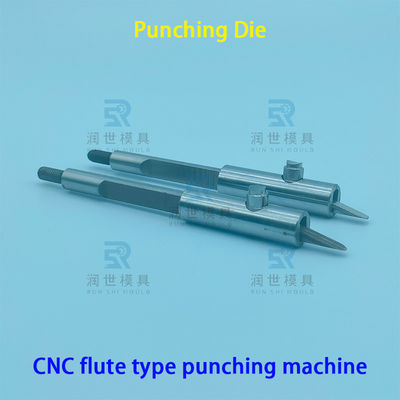

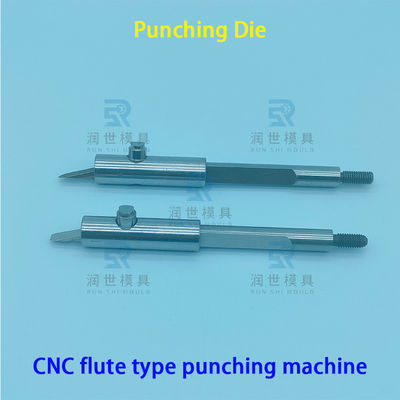

CNC Flute Type Punching Machine Spare Parts For Copper Tube Punching Hole

Product Specifications

Attribute	Value
Product Name	Punching Machine Spare Parts Punching Hole Tools
Material	SKD11, DC53 or HSS SKH51
Process Tube Diameter	Φ9.52-Φ110
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Punching Hole Diameter	Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality	100% Inspection
Surface Finish	Ra 0.4
Service	OEM or ODM
Application	CNC Hole Punching Machines, Tube Perforating Machines, Integrated Tube Processing Systems
Usage	Punching Holes in Copper, Aluminum and Stainless Steel Tubes

Product Description

This punching machine spare parts set is essential for producing air-conditioning tube components in the refrigeration heat exchanger industry. The set includes:

Punch head
Punch sleeve
Punch pusher
3-jaw chuck
Clamp die
Push rod
Hollow tube

Crafted from high-speed steel SKH51, it offers exceptional hardness, wear resistance, and durability, making it ideal for mass production of flute-shaped tubes and specialized tube processes like bending, punching, and expanding. Compatible with fully automated tube processing machines and customizable to meet specific production requirements.

Process Tube Diameter vs. Punching Hole Diameter

Process Tube Diameter	Available Punching Hole Diameters
Φ9.53mm (3/8")	Φ5mm
Φ12.7mm (1/2")	Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8")	Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ31.75mm (1-1/4")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8")	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm

Product Images

Application Industry

These punching machine spare parts are primarily used in the air-conditioning refrigeration heat exchanger industry for integrated tube processing systems.

Manufacturer Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. The company also serves industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

Frequently Asked Questions

Q: What is the name of this product?

A: Punching Machine Spare Parts Punching Hole Tools

Q: Are you a trading company or manufacturer?

A: We are the manufacturer.

Q: What industry is this product mainly used for?

A: Primarily for integrated tube processing in the air-conditioning refrigeration heat exchanger industry.

Q: How do you manufacture after order confirmation?

A: We require samples or drawings. Our production engineers with 10+ years experience control tolerances and precision.

Q: What is your delivery time?

A: 10-15 working days for in-stock items, 20-25 working days for custom orders.

Q: What are your payment terms?

A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T in advance, balance before shipment.
