Home /Products/CNC Hole Punching Machine Parts/Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one)

Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one)

10 PCS
MOQ
Negotiate Price
Price
Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one)
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Punching Hole Tools Punch Hole Tooling Punch Hole Tool Bullet Punch Hole Head Punch Hole Bullets
Material: SKD11,DC53 Or HSS SKH51
Process Tube Dia.: Φ9.52-Φ110
Processing: Precision CNC Lathe Turning
Heat Treatment :: HRC 60°-62°
Punching Hole Dia.: Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22
Quality: 100% Inspection
Surface Finish: Ra 0.4
Service: OEM Or ODM
Application: CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine
Usage: Punching Hole Copper Aluminum And Stainless Steel Tube
Basic Infomation
Place of Origin: china
Brand Name: Punch Hole Tool Bullets
Certification: TS16949
Model Number: Punch Hole Tool Bullets 01
Payment & Shipping Terms
Packaging Details: Plastic box and carton box packaging
Delivery Time: 10-15 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine (All in one)
Product Specifications
Attribute Value
Product Name Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet, Punch Hole Head, Punch Hole Bullets
Material SKD11, DC53 or HSS SKH51
Process Tube Dia. Φ9.52-Φ110
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Punching Hole Dia. Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22
Quality 100% Inspection
Surface Finish Ra 0.4
Service OEM or ODM
Application CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine
Usage Punching Hole Copper Aluminum and Stainless Steel Tube
Product Description

Precision Punching Die for Tube Production in HVAC Systems: This punching die set is designed to optimize the production of air-conditioning tube components, including flute-shaped and special-shaped tubes used in refrigeration heat exchangers. Made from high-speed steel SKH51, the die offers exceptional durability, wear resistance, and hardness, ensuring long service life even in high-volume manufacturing environments.

Compatible Tube and Hole Diameters
Process Tube Dia. Punching Hole Dia.
Φ9.53mm (3/8inch) Φ5mm
Φ12.7mm (1/2inch) Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch) Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ25.4mm (1inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ28.58mm (1-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ31.75mm (1-1/4inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Φ34.94mm (1-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ41.28mm (1-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ53.98mm (2-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm
Φ60.32mm (2-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ66.68mm (2-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ79.38mm (3-1/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ85.73mm (3-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ92.08mm (3-5/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Φ111.12mm (4-3/8inch) Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm
Other Specifications Custom
Product Images

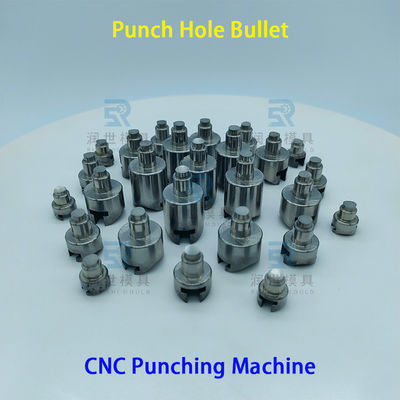

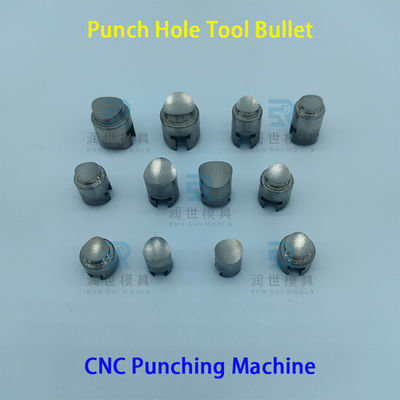

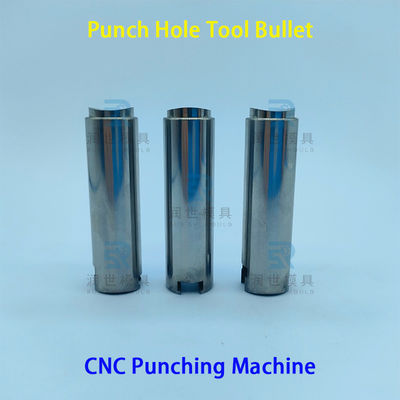

Φ22 Punch Hole Tool Bullets close-up view Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 1 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 2 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 3 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 4 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 5 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 6 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 7 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 8 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 9 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 10 Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 11
Application Industry
Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 12
Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automobiles.

Φ22 Punch Hole Tool Bullets For CNC Tube Integrated Machine(All in one) 13
Frequently Asked Questions
Q: What is the name of this product?
A: Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullets, Punch Hole Head, Punch Hole Bullets
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the Punch Hole Tool Bullets mainly used for?
A: It is an important Punching Hole Tools for Integrated Tube Cutting Bending And Punching Machine in the air-conditioning refrigeration heat exchanger industry.
Q: How to manufacture after the order is confirmed?
A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.
Q: How long is your delivery time?
A: Generally it is 10-15 working days if the goods are in stock. Or it is 20-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment ≤ 10000USD, 100% in advance. Payment > 10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
