Punching Hole Tools For Integrated Tube Cutting Bending And Punching Machine
Product Specifications
| Attribute | Value |
| Product Name | Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet, Punch Hole Head, Punch Hole Bullets |
| Material | SKD11, DC53 or HSS SKH51 |
| Process Tube Diameter | Φ9.52-Φ110 |
| Processing | Precision CNC Lathe Turning |
| Heat Treatment | HRC 60°-62° |
| Punching Hole Diameter | Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22 |
| Quality | 100% Inspection |
| Surface Finish | Ra 0.4 |
| Service | OEM or ODM |
| Application | CNC Hole Punching Machine, CNC Tube Perforating Machine, CNC flute type punching machine, CNC Tube Integrated Machine (All in one), Integrated tube cutting bending and Punching machine, Integrated Punching Tube Bending and End Forming Machine |
| Usage | Punching Hole Copper Aluminum and Stainless Steel Tube |
Product Description
Our Punching Hole Tools include a punch head, punch sleeve, punch pusher, 3-jaw or chuck, clamp die, push rod, and hollow tube components. These essential tools are designed for the production of air-conditioning tube parts in the refrigeration heat exchanger industry.
Manufactured from high-speed steel SKH51, these tools offer exceptional hardness, wear resistance, and long service life. They are ideal for mass production of flute-shaped tubes for air conditioning, special-shaped punching, bending, expanding, and shrinking tube parts.
Compatible with fully automatic tube cutting, bending, punching, and end forming machines (All In One) from manufacturers like OMS and JDM. Custom specifications available to meet specific customer requirements.
Standard Specifications
| Process Tube Diameter | Available Punching Hole Diameters |
| Φ9.53mm (3/8inch) | Φ5mm |
| Φ12.7mm (1/2inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ25.4mm (1inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ28.58mm (1-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ31.75mm (1-1/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ34.94mm (1-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ41.28mm (1-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ53.98mm (2-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ60.32mm (2-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Other Specifications | Custom sizes available |

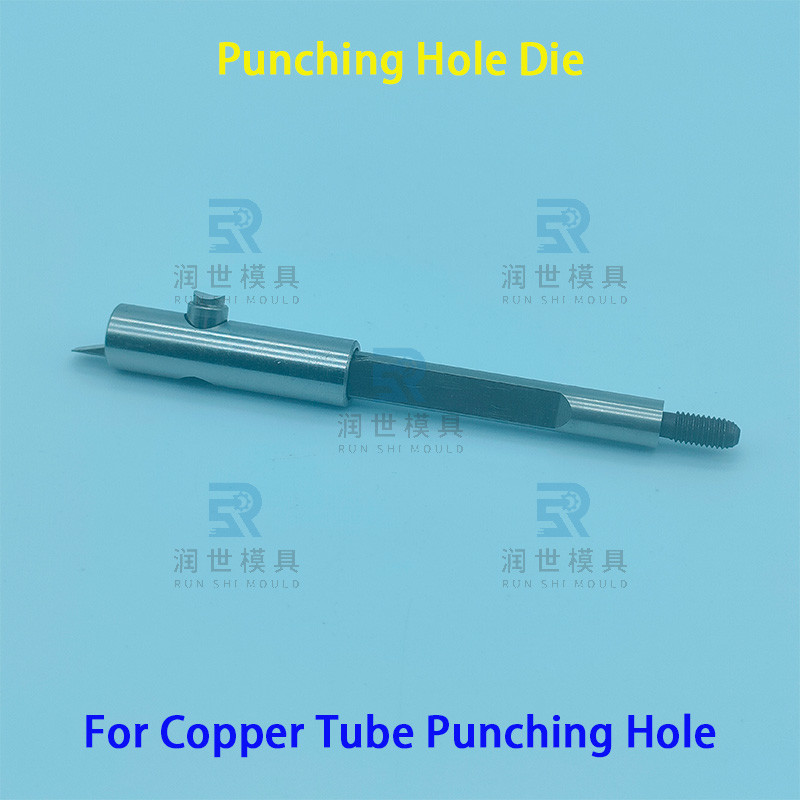

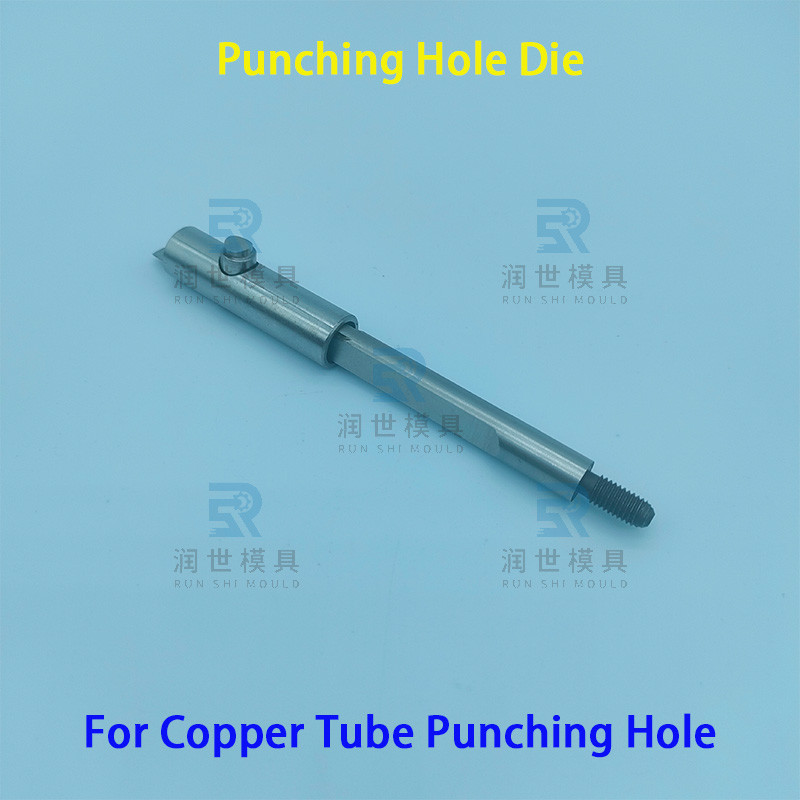

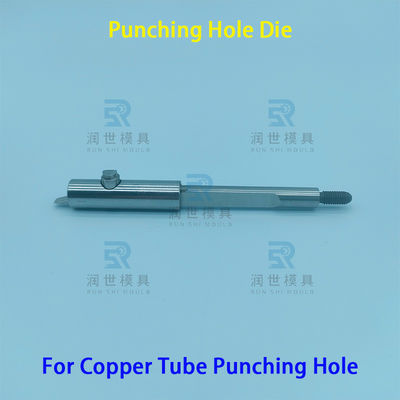

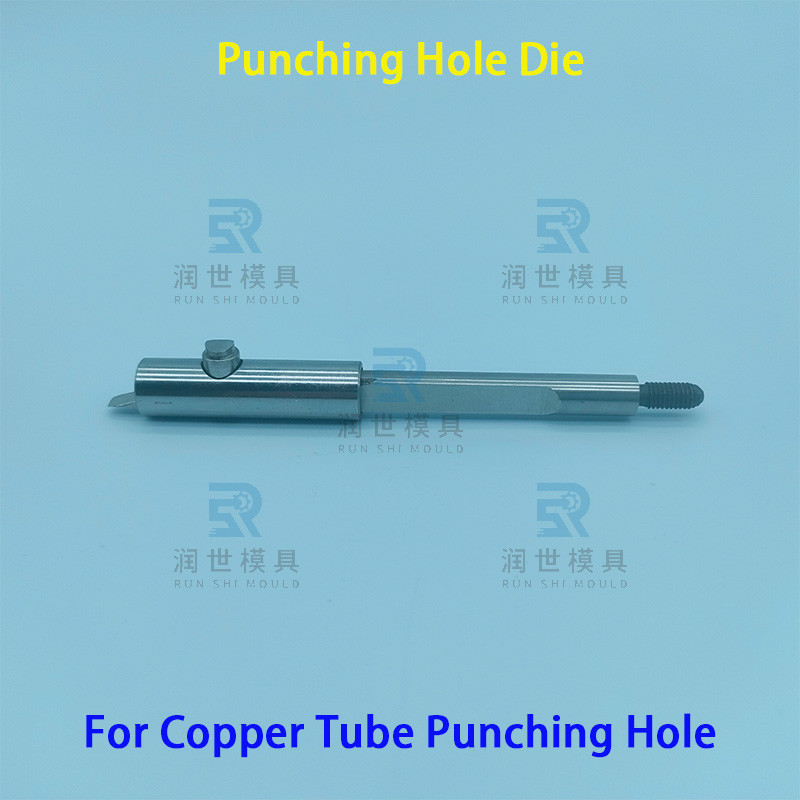

Product Images
