Full And Smooth Mirror Polished Bending Die For CNC Tube Bender

Full And Smooth Mirror Polished Bending Die For CNC Tube Bender

Brand Name:	CNC Tube Bender Bending Die
Model Number:	CNC Tube Bender Bending Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

CNC Tube Bender Bending Die Return Bender Die Clamping Die Guided Die R-Tool Bender Die

Material:

DC53

Specification:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Bending Tube ID:

Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or DLC Coating

Service:

OEM Or ODM

Application:

CNC Tube Bender Bending Die CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Mirror Polished Bending Die

CNC Tube Bender Bending Die

Product Description

Full And Smooth Mirror Polished Bending Die For CNC Tube Bender

Product Specifications

Attribute	Value
Product Name	CNC Tube Bender Bending Die Return Bender Die Clamping Die Guided Die R-Tool Bender Die
Material	DC53
Specification	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Bending Tube ID	Φ5、Φ6.0、Φ6.35、Φ7、Φ7.94、Φ9.53、Φ8.9、Φ12、Φ12.7、Φ14.5、Φ15.88
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or DLC Coating
Service	OEM or ODM
Application	CNC Tube Bender Bending Die CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

This CNC tube bending die is constructed from robust DC53 die steel, offering a hardness of HRC 60°-62° for superior durability and precision. The die features a precision-processed, mirror-polished bending groove that ensures bright, full, and smooth bends without any wrinkles or scratches.

Ideal for use with CNC 3D tube benders, this die is perfect for air-conditioning copper tubes and water heater tank applications. It accommodates a wide variety of pipe diameters and custom specifications can be provided for specific needs.

Available Sizes

Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22, Φ28

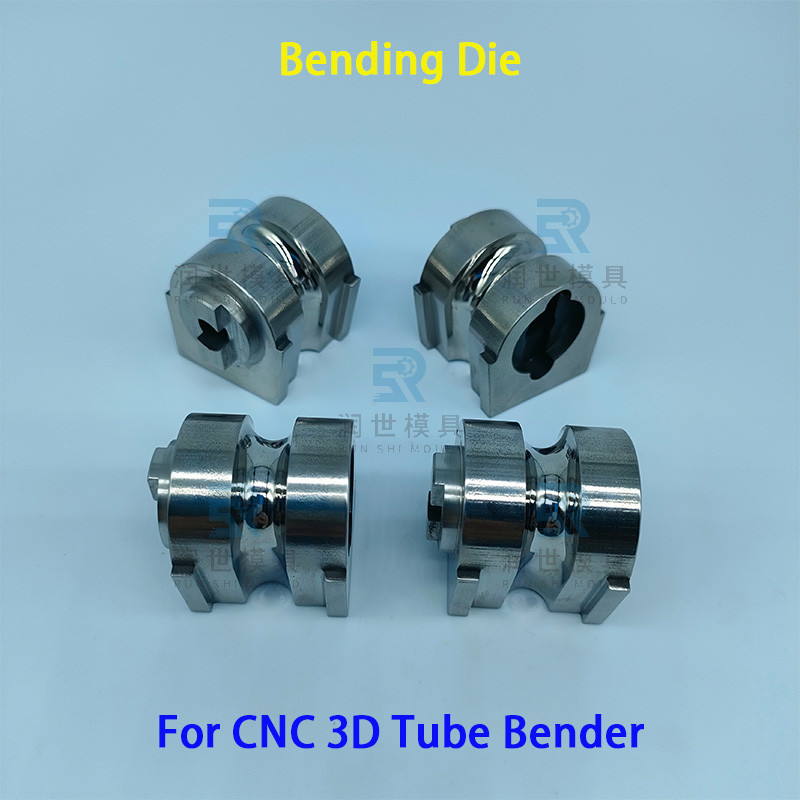

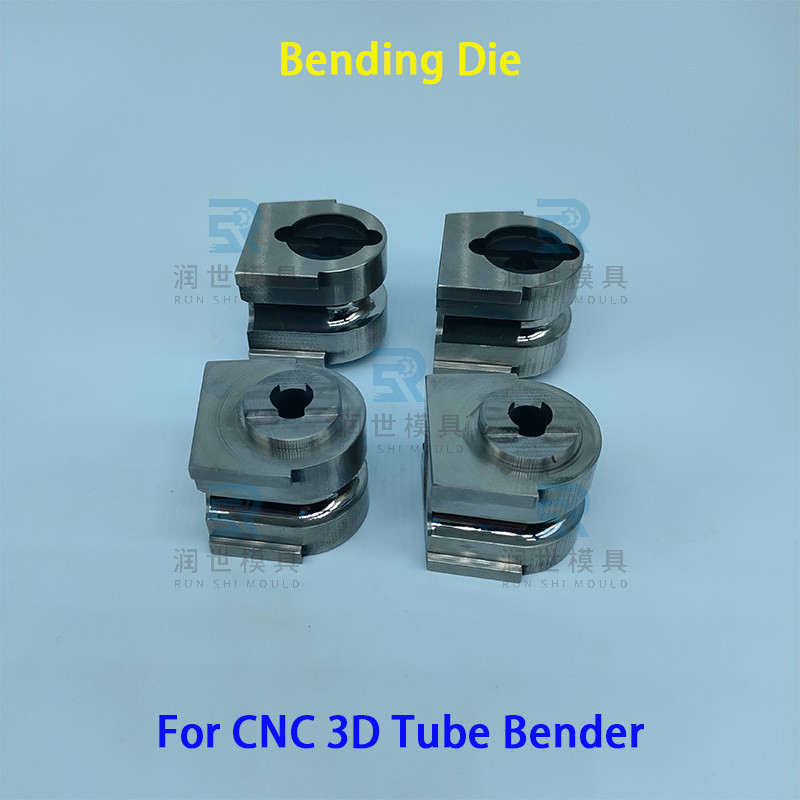

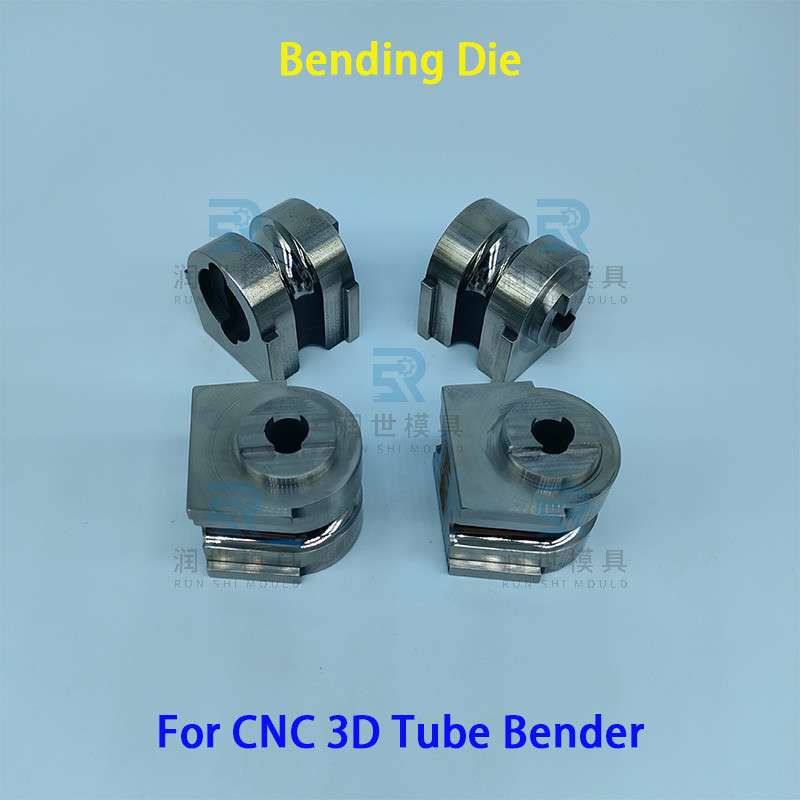

Product Images

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing. Since its establishment, the company has provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. We also supply ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

Frequently Asked Questions

Q: What is the name of this product?

A: CNC Tube Bending Machine Bending Die Return Bender Die Clamping Die Guided Die R-Tool Bender Die

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the CNC Tube Bender Bending Die mainly used for?

A: It is an important bending tube component for CNC 3D tube bending machines and copper tube hairpin benders or return benders.

Q: How do you manufacture after the order is confirmed?

A: We require samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.

Q: What is your delivery time?

A: Typically 5-10 working days for in-stock items, or 10-25 working days for custom orders, depending on quantity.

Q: What are your payment terms?

A: For orders ≤$10,000 USD: 100% in advance. For orders >$10,000 USD: 50% T/T in advance, balance before shipment.

For additional questions, please feel free to contact us.
