Hairpin Bender Mandrel for OD 7mm Aluminum Tube Bending Heat Pump Production

Hairpin Bender Mandrel for OD 7mm Aluminum Tube Bending Heat Pump Production

Brand Name:	Universal Mandrel
Model Number:	Universal Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 65°-68°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

PVD Coating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Heat Pump Production Bender Mandrel

Aluminum Tube Bending Mandrel

7mm Tube Hairpin Bender Mandrel

Product Description

Hairpin Bender Mandrel for OD 7mm Aluminum Tube Bending Heat Pump Production

Product Specifications

Product Name	Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 GCr15
Specification	Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 65°-68°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	PVD coating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

This aluminum tube mandrel is made of high-quality bearing steel with bright titanium-plated surface. Specially designed for aluminum tube bending to prevent aluminum powder from sticking to the surface, which may cause bent pipe fittings to be unqualified.

The mandrel can be installed on various tube bending equipment including hairpin benders, return benders, CNC tube benders, and manual tube benders. It is widely used in heat pump production, aluminum tube heat exchangers, and refrigerator heat exchanger production workshops.

Tube fittings bent with this mandrel are full and bright without wrinkles or scratches. Compatible with aluminum tubes of various outer diameters including: Φ4.76, Φ5, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9, Φ9.52, Φ12.7, Φ12, Φ14.5, Φ15.88, etc. Custom specifications available.

Available Specifications

Φ4.14

Φ6.0

Φ6.22

Φ6.85

Φ8.55

Φ8.8

Φ9.6

Φ10.6

Φ12.9

Φ14.1

Φ15.5

Φ16.5

Φ18.3

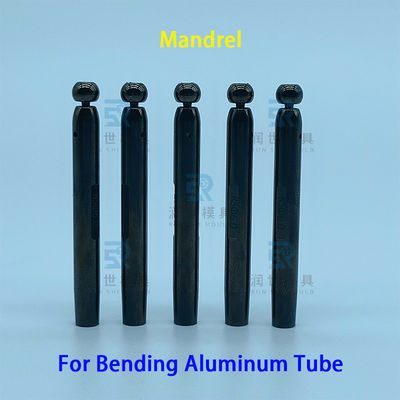

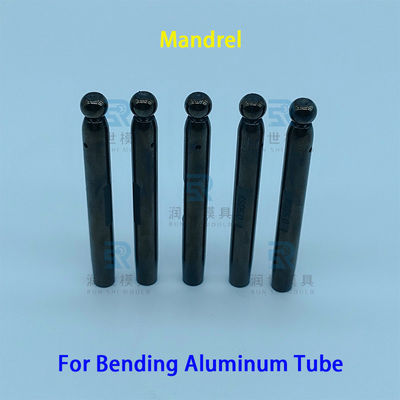

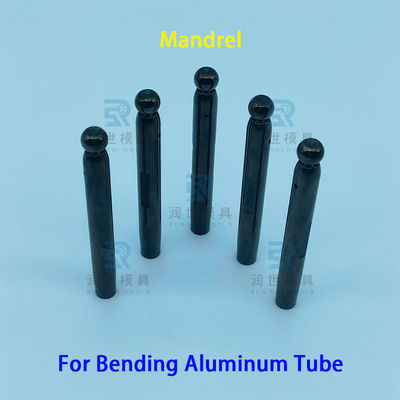

Product Images

Application Industry

Manufacturer: Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. We also supply ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

Frequently Asked Questions

Q: What is the name of this product?

A: Bending Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Alloy Mandrel mainly used for?

A: It is an important bending tube part for CNC 3D tube bending machines and copper tube hairpin benders or return benders.

Q: How to manufacture after the order is confirmed?

A: We need samples or drawings (one is sufficient). Our production engineers have over 10 years of experience in controlling tolerances and precision.

Q: How long is your delivery time?

A: 5-10 working days for in-stock items, 10-25 working days for non-stock items (depending on quantity).

Q: What are your payment terms?

A: Payment ≤ $10,000 USD: 100% in advance. Payment > $10,000 USD: 50% T/T in advance, balance before shipment.

For any other questions, please feel free to contact us.
