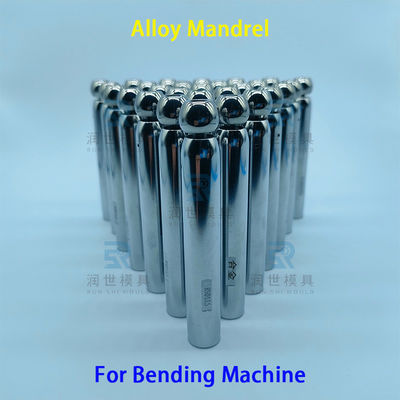

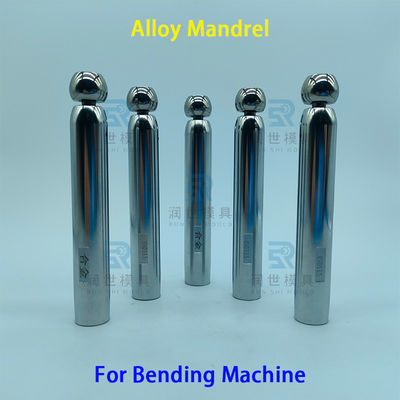

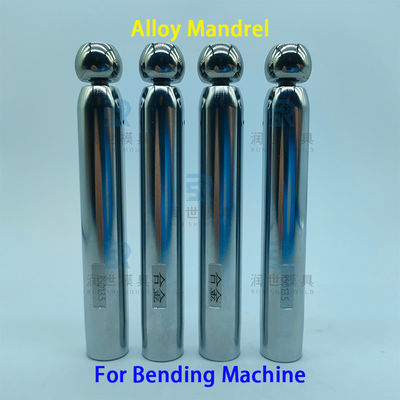

Alloy Mandrel for Bending of Stainless Steel Tube in Heat Exchanger Production

Alloy Mandrel for Bending of Stainless Steel Tube in Heat Exchanger Production

Brand Name:	Alloy Mandrel
Model Number:	Alloy Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

YG8 K7

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 89°-93°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Product Description

Alloy Mandrel for Bending of Stainless Steel Tube in Heat Exchanger Production

Product Specifications

Attribute	Value
Product Name	Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	YG8 K7
Specification	Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 89°-93°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

This mandrel is made of imported bearing steel SUJ2 and hard alloy material, with the ball head constructed from high-hardness, wear-resistant super-hard alloy to enhance strength and service life. Designed for installation on CNC pipe bending machines, it enables high-strength bending of stainless steel and iron tubes.

Widely used in tube bending production for stainless steel heat exchangers and surface coolers, it's also employed in bending automobile tube fittings and furniture tube fittings. The alloy mandrel provides excellent strength, wear resistance, and durability for bending stainless steel or iron pipes.

Compatible with stainless steel pipes of outer diameters: Φ9.52, Φ12, Φ12.7, Φ15.88, Φ16, Φ19.05, etc. Custom specifications available upon request.

Available Specifications

Φ4.14
Φ6.0
Φ6.22
Φ6.85
Φ8.55
Φ8.8
Φ9.6
Φ10.6
Φ12.9
Φ14.1
Φ15.5
Φ16.5
Φ18.3

Product Gallery

Application Industry

Manufacturing Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. The company also supplies ceramic and tungsten steel parts for industries including new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive applications.

Frequently Asked Questions

Q: What is the name of this product?

A: Bending Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Alloy Mandrel mainly used for?

A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment≤10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
