Dull Mandrel Spare Parts for Air Conditioner and Heat Exchanger Manufacturing

Dull Mandrel Spare Parts for Air Conditioner and Heat Exchanger Manufacturing

Brand Name:	Elliptical-Shaped Mandrel
Model Number:	Elliptical-Shaped Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15 Or YG8

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Highlight:

Dull Mandrel for Air Conditioner

Dull Mandrel for Heat Exchanger

Product Description

Dull Mandrel Spare Parts for Air Conditioner and Heat Exchanger Manufacturing

Product Specifications

Attribute	Value
Product Name	Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 GCr15 or YG8
Specification	Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ14.1, Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return Bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

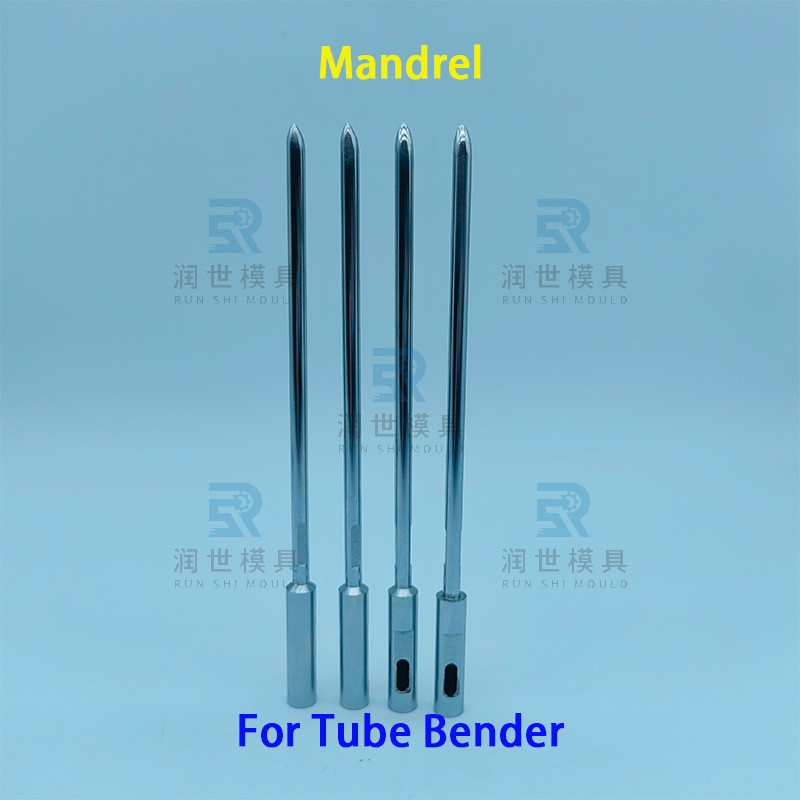

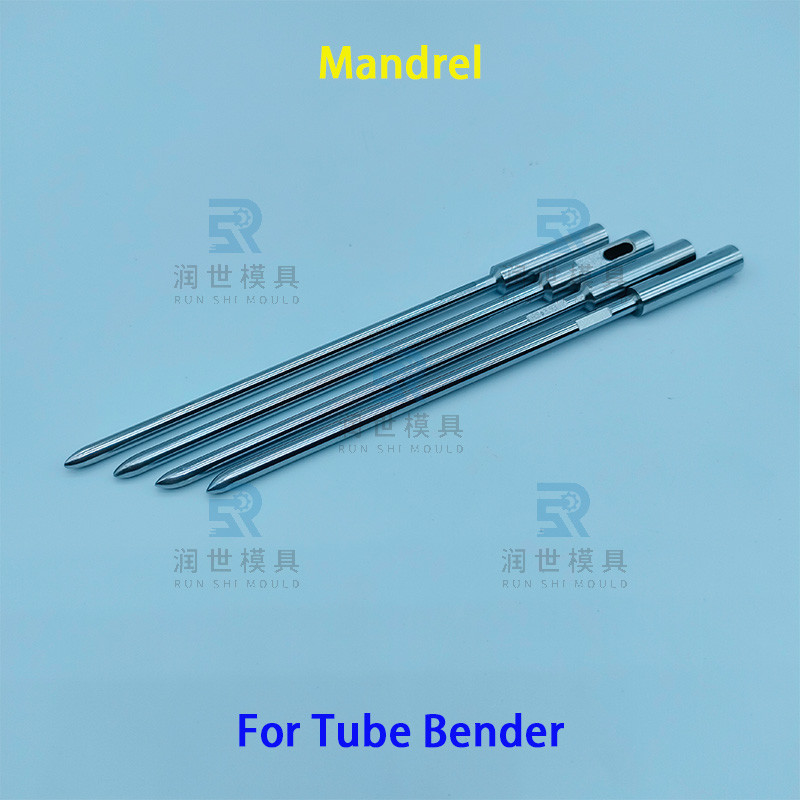

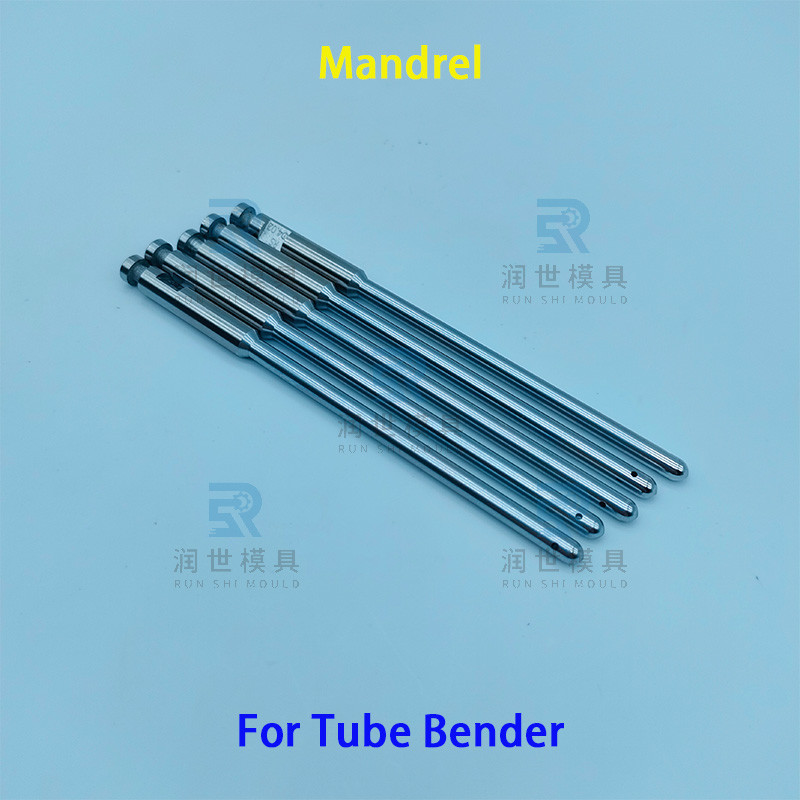

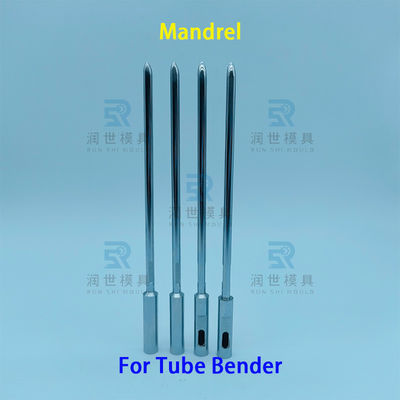

Chrome-Plated Dull Mandrel for Tube Elbows: Made from high-quality bearing steel with chrome plating, this dull mandrel is designed for bending copper and aluminum tubes. Available in elliptical, semicircular, and thumb-shaped designs, it works with small or long U-shaped tube benders. Ideal for air conditioner manufacturing in residential, automotive, and rail applications, ensuring smooth, precise tube bends. Handles pipe diameters from Φ4.76 to Φ7, with custom sizes available.

Available Specifications

Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ9.6, Φ10.6, Φ12.9, Φ14.1, Φ15.5, Φ16.5, Φ18.3

Product Gallery

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger production. Our expertise extends to ceramic and tungsten steel components for industries including new energy, fluid control, medical devices, semiconductors, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation, electronic communication, and automotive applications.

Frequently Asked Questions

Q: What is the name of this product?

A: Universal Mandrel One-way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Dull Mandrel mainly used for?

A: It is an important bending tube part for CNC 3D tube bending machines and copper tube hairpin benders or return benders.

Q: How to manufacture after the order is confirmed?

A: We need samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.

Q: How long is your delivery time?

A: 5-10 working days for in-stock items, 10-25 working days for custom orders, depending on quantity.

Q: What are your payment terms?

A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T in advance, balance before shipment.

For additional questions, please feel free to contact us.
