One-way Mandrel for Return Bender in Refrigeration and Heat Exchange Industry

One-way Mandrel for Return Bender in Refrigeration and Heat Exchange Industry

Brand Name:	One-way Mandrel
Model Number:	One-way Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15 Or YG8

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Supply Ability:

10000 pieces per month

Product Description

One-way Mandrel for Return Bender in Refrigeration and Heat Exchange Industry

Product Specifications

Attribute	Value
Product Name	Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 GCr15 or YG8
Specification	Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

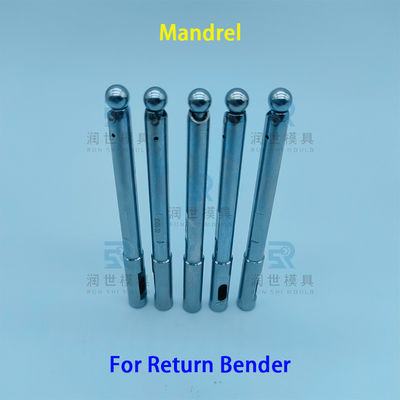

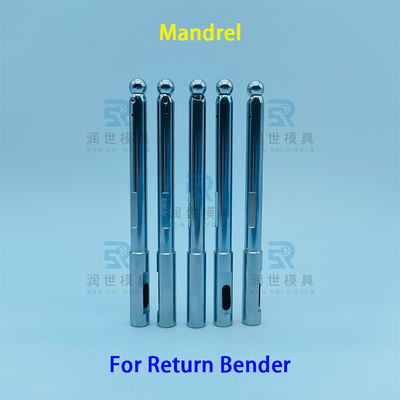

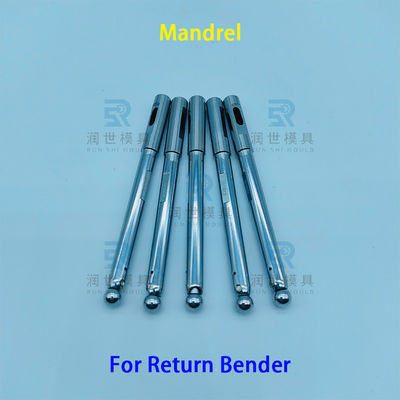

This one-way mandrel is made of high-quality bearing steel and has a hard chrome electroplating process. The ball head can only swing in one direction. It is often installed on a small U-tube bending machine (return bender) to bend copper tube elbows or aluminum tube elbows.

Widely used in copper or aluminum pipe production workshops in the refrigeration and heat exchange industry. The copper tube elbows bent with this one-way mandrel are full and bright without wrinkles or scratches.

Compatible with outer diameters of copper and aluminum tubes: Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ8.9 Φ9 Φ9.52 Φ12.7 Φ12 Φ14.5 Φ15.88, etc. Any specifications can be customized.

Available Specifications

Φ4.14
Φ6.0
Φ6.22
Φ6.85
Φ8.55
Φ8.8
Φ9.6
Φ10.6
Φ12.9
Φ14.1
Φ15.5
Φ16.5
Φ18.3

Product Images

Application Industry

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises.

We also provide ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, automobiles and more.

Frequently Asked Questions

Q: What is the name of this product?

A: Universal Mandrel One-way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the One-way Mandrel mainly used for?

A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
